Elcometer 142 ISO 8502-3 Dust Tape Test Kit

The Elcometer 142 Dust Tape Test Kit allows assessment of the quantity and size of dust particles on surfaces prepared for painting. Dust on blast cleaned surfaces can reduce coating adhesion, leading to premature coating failure and sub-standard coating finish.

Used in conjunction with the Elcometer 145 Dust Tape Roller the kit can be used in accordance with the recommendations of BS EN ISO 8502-3 either as a pass/fail test or as a permanent record of the presence of dust. Supplied in a carry case for use in the field to assess surface cleanliness.

Equipment

Part#
Part Description
List Price
Part#E142---1

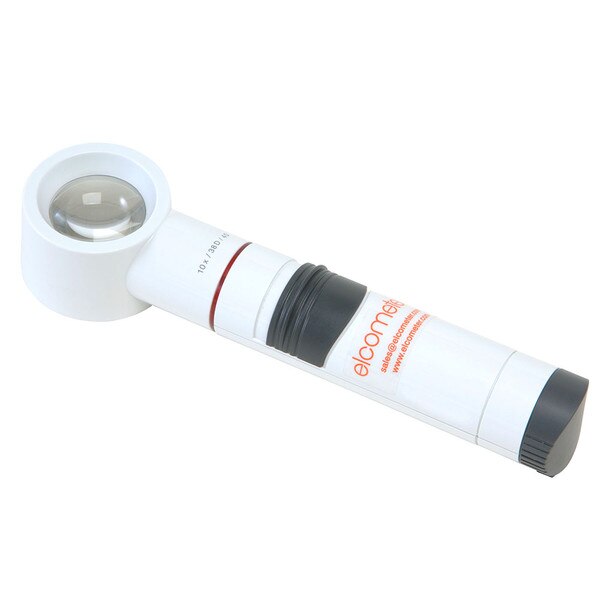

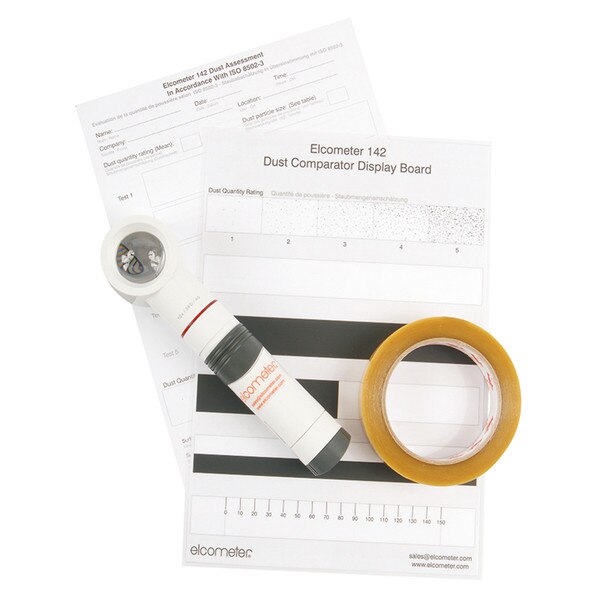

Part DescriptionELCOMETER 142 ISO 8502-3 DUST TAPE TEST KIT: Assesses the quantity and size of dust particles. Includes: 10 power microscope and reticule, adhesive tape to specification ISO 8502-3, Comparator display board, operating instructions, dust assessment plate, 25 test record sheets. USE IN CONJUNCTION WIT
List Price$185.00

Parts

Part#
Part Description
List Price
Part#T14219451
Part NameELCOMETER 142 TEST RECORD PAD (25 SHEETS): allows assessment of the quantity and size of dust particles on surfaces prepared for painting. Chart with dust classes ranging from 0 - 5 with descriptions for accurate class placement.
List Price$24.00
Part#T14219454
Part Name142 Display Board
List Price$16.00
Part#T14219525
Part Name142 Dust Assessment Plate
List Price$20.00
Part#T14223003
Part NameADHESIVE TAPE FOR MODEL 142 DUST KIT (1 ROLL)
List Price$35.00

Downloads

Name
Download
NameElcometer 142 Data Sheet
DownloadDownload
NameElcometer 142 Manual
DownloadDownload
