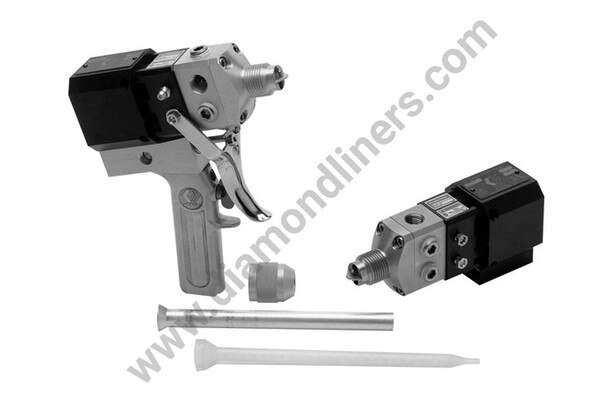

Graco 2k Ultra-Lite Spray Gun

Dispenses a wide range of two-component adhesives and sealants for virtually every application

The valve fluid passages can dispense the Graco 2k metered fluids into a low cost disposable mixer selected for your operation. Combined with high quality metering, this gives you the best mixed material quality available for your product.

The Graco 2k Ultra-Lite Valve is designed as one portion of a total solution for your 2k operation. This valve can be combined with a fixed or variable ratio machine to create an efficient 2k system in order to reduce the operating cost of your line.

Features:
  • Severe-Duty needles and seats for longer operating life
  • Lubricated packings for longer seal life
  • Lightweight construction reduces operator/machinery fatigue
  • Compact size for small XY tables, working areas and robots
  • No purging or flushing which reduces waste disposal cost

Materials:
  • Polysulfides
  • Urethanes
  • Epoxies
  • Silicones

Applications:
  • Electrical hardware and component sealing
  • Plastic, metal or glass substrates gasketing
  • Replacing fasteners or welds
  • Assembly or fabricating operations

Equipment

Part#
Part Description
List Price
Part#249835
Part DescriptionKIT - RETROFIT,RESTRICTOR,2K UL
List Price$961.00
Part#24P765
Part DescriptionJoint Fill Adapter Kit
List Price$410.00

Parts

Part#
Part Description
List Price
Part#104459
Part NameSCREW - SOCKET HEAD 10-32X1.75
List Price$2.90
Part#104984
Part NameFitting; Tee Female 1/4
List Price$44.20
Part#117506
Part NameFitting; Union, inlet, swivel, B side; 1/4 npt(m) x #6 JIC
List Price$34.90
Part#117510
Part NameCoupler, air line, 1/4 NPT Male Quick Disconnect
List Price$36.70
Part#117595
Part NameFitting; Union, inlet, swivel, A side; 1/4 npt(m) x #5 JIC
List Price$41.40
Part#117773
Part NameFusion Quik-Shot 3 oz. Grease Cartridge
List Price$7.85
Part#117792
Part Name3oz. Grease Gun
List Price$49.70
Part#118665
Part Name4 oz. Tube of High adhesion, water resistant, lithium-based lubricant
List Price$12.40
Part#120042
Part NameMIXER, disposable; 1/4 in. ID x 3/8 in. x 24 element, Bag of 50
List Price$119.50
Part#120043
Part NameADAPTER, spray, (Package of 5)
List Price$52.75
Part#120044
Part NameCap, Air Spray, (Package of 5)
List Price$22.80
Part#151519
Part NameFitting; Nipple, reducing; 1/4 npt x 1/8 npt
List Price$11.80
Part#155541
Part NameFitting; Elbow, swivel, 90 Deg., 1/4 npt(m) x 1/4 npsm(f)
List Price$35.30
Part#156823
Part NameFitting; Union, swivel; 1/4 npt (m x f)
List Price$6.80
Part#15E373
Part Name.024 Remote Mix Manifold Restrictor
List Price$110.50
Part#15E375
Part Name.040 Remote Mix Manifold Restrictor
List Price$102.00
Part#234388
Part NameValve, spray air control
List Price$161.50
Part#249036
Part NameKit, O-Ring, restrictor; (package of 6)
List Price$40.60
Part#249037
Part NameKit, filter screen, 40 mesh; (package of 10)
List Price$40.60
Part#24K994
Part NameTIP - NOSEPIECE,MANIFOLD
List Price$215.00
Part#296980
Part NameGun Service Kit, 1 QT., Graco/Gusmer
List Price$665.00
Part#296981
Part NameGun Service Kit, 3 Gallon, Graco/Gusmer
List Price$1,075.00
Part#512291
Part NameMixer Nut
List Price$34.60

Downloads

Name
Download
Name2K Ultra-Lite Instructions - Parts Manual
DownloadDownload
Name2K Ultra-Lite Dispense Kits Manual
DownloadDownload
