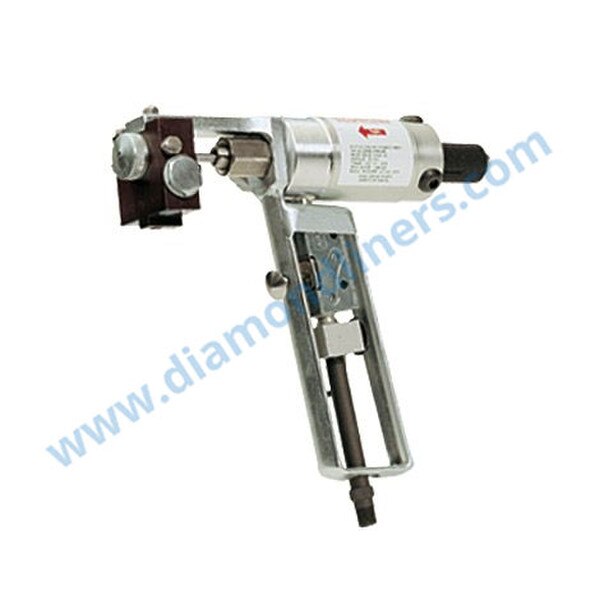

Graco D-Gun Spray Gun

Graco/Gusmer's plural-component D-Gun is ideal for small to mid-range output foam applications such as interior stud-wall spraying.



Features:

  • A variety of mixing chamber sizes allows the operator to fine-tune the round spray pattern for virtually any application
  • Lightweight, easy to operate and maintain
  • Mechanically self-cleaning so you eliminate costly solvent-flushing



Materials:

  • Foam



Applications:

  • Small to medium output spraying of pipes, truck bodies and trailer bodies

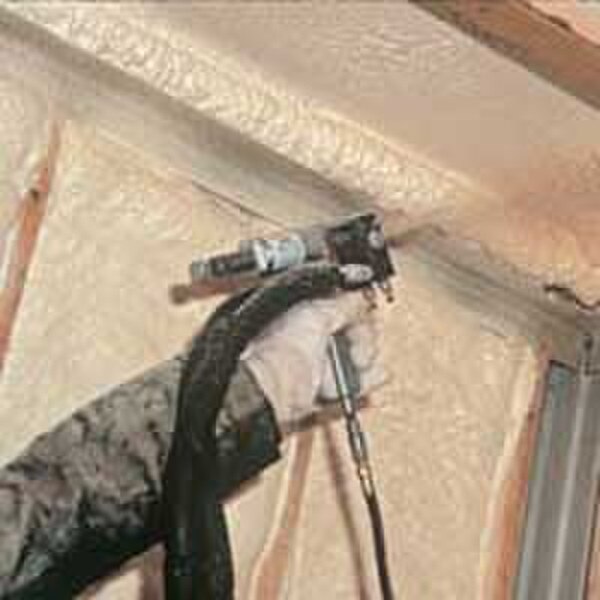

  • Residential insulation/foam spraying

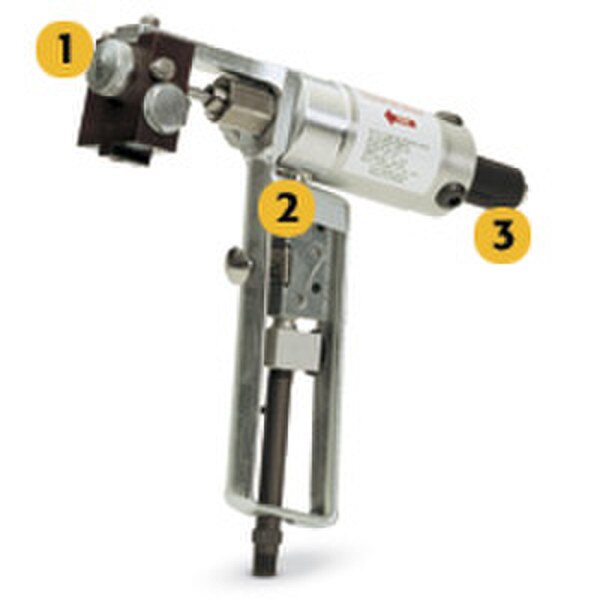

Product Highlights:

  • Air cap allows for easy cleaning of the purge rod
  • Lightweight design reduces operator fatigue
  • Pattern control knob allows for fine tune adjustments



Parts

Part#
Part Description
List Price
Part#103557
Part NameO-ring
List Price$4.10
Part#15C161
Part NameUltimate Gun Cleaning Kit
List Price$97.75
Part#15C162
Part NameHVLP gun cleaning kit
List Price$67.50
Part#208536
Part NameCoupler; Quick, Air 1/4 (F)
List Price$12.40
Part#247375
Part Name#80 Proportioner Pump Kit
List Price$4,130.00
Part#295171
Part NameValving rod stop adjustment screw
List Price$3.35
Part#295182
Part NameNeedle valve body
List Price$63.25
Part#295183
Part NameRetainer nut/dust cover
List Price$38.50
Part#295185
Part NameMounting screw, 1/2 in., LG
List Price$19.40
Part#295482
Part NameClosure screw
List Price$17.70
Part#295590
Part NameGun Frame
List Price$419.00
Part#295591
Part NameHex nipple, 1/8 in. MPT, steel
List Price$5.50
Part#295592
Part NameRoll pin, 1/16 x 5/16 in. SST
List Price$3.00
Part#295595
Part NameTru-Arc, 2000-50, snap ring
List Price$2.45
Part#295596
Part NameCoupler Plug
List Price$5.45
Part#295934
Part NameKit; Spade, Cleanout
List Price$10.70
Part#295935
Part NameKit; Spade, Cleanout, D-Gun
List Price$8.70
Part#296090
Part NameBall & Spring Assembly, (Package Of 10)
List Price$69.50
Part#296091
Part NameCheck valve sleeve, (Package of 10)
List Price$33.30
Part#296121
Part NameD gun block, complete (includes G, AA, AP)
List Price$994.00
Part#296125
Part NameKit, Air Valve Repair Kit (Includes Needle Valve Packing)
List Price$16.30
Part#296126
Part NameGun air tube, includes D (qty. 2)
List Price$68.75
Part#296578
Part NameKit; Valving Rod, D-Gun 46
List Price$42.40
Part#296579
Part NameKit; Valving Rod, D-Gun 55
List Price$42.40
Part#296580
Part NameKit; Valving Rod, D-Gun, 62
List Price$42.40
Part#296581
Part NameKit; Valving Rod, D-Gun, 70
List Price$42.40
Part#296582
Part NameKit; Valving Rod, D-Gun, 78
List Price$66.50
Part#296584
Part NameKit; 46 Mixing Chamber, D-Gum, 2110L-46-800
List Price$218.00
Part#296585
Part NameKit; Chamber, D-Gun, 2110L-46-810
List Price$218.00
Part#296586
Part NameKit; Chamber, D-Gun, 2110L-55-776
List Price$218.00
Part#296587
Part NameKit; Chamber, D-Gun, 2110L-62
List Price$218.00
Part#296588
Part NameKit; Chamber, D-Gun, 2110L-70
List Price$218.00
Part#296594
Part NameKit; 46 Mixing Chamber, D-Gun, 2110N-46-800
List Price$207.00
Part#296595
Part NameKit; Chamber, D-Gun, 2110N-46-810
List Price$207.00
Part#296597
Part NameKit; Chamber, D-Gun, 2110N-55-776
List Price$207.00
Part#296598
Part NameKit; Chamber, D-Gun, 2110N-62
List Price$207.00
Part#296599
Part NameKit; Chamber, D-Gun, 211N-70
List Price$207.00
Part#296600
Part NameKit; Chamber, D-Gun, 2110-78-851
List Price$207.00
Part#296611
Part NameFelt wiper assembly (includes retainer, wiper, washer) (Pack of 5)
List Price$77.75
Part#296614
Part NameKit, A-check valve, includes C and D (Package of 10)
List Price$287.50
Part#296615
Part NameKit, R-check valve, includes C and D (Package of 10)
List Price$287.50
Part#296616
Part NameTrigger button; includes H
List Price$45.50
Part#296617
Part NameValving rod stop bar; includes Valving rod positioner (Ref. L)
List Price$63.25
Part#296618
Part NameValving rod closure spring
List Price$7.90
Part#296620
Part NamePipe nipple
List Price$87.75
Part#296621
Part NameScreen screw seal (Package of 10)
List Price$68.50
Part#296622
Part NameGun Block Screen 80 Mesh (Package of 10)
List Price$37.70
Part#296623
Part NameScreen-80 mesh (pack of 50)
List Price$107.00
Part#296624
Part NameKit, gun block screen screw (includes U, V, W)
List Price$93.00
Part#296625
Part NameCoupling block gasket (Package of 2)
List Price$24.00
Part#296629
Part NameSpring retainer case (includes N)
List Price$193.50
Part#296633
Part NameNeedle valve and packing kit
List Price$45.80
Part#296634
Part NameKit; Air Cap, D-Gun, D-55
List Price$67.75
Part#296635
Part NameKit; Air Cap, D-Gun, D-70
List Price$67.75
Part#296838
Part NameKit; Air Cap, D-Gun
List Price$67.75
Part#296980
Part NameGun Service Kit, 1 QT., Graco/Gusmer
List Price$636.00
Part#296981
Part NameGun Service Kit, 3 Gallon, Graco/Gusmer
List Price$1,030.00
Part#297007
Part NameKit; Spade, Cleanout, .019, D-Gun
List Price$10.90
Part#297139
Part NameFelts and Washers Kit. Includes 15 felt wipers and 3 washers.
List Price$15.60
