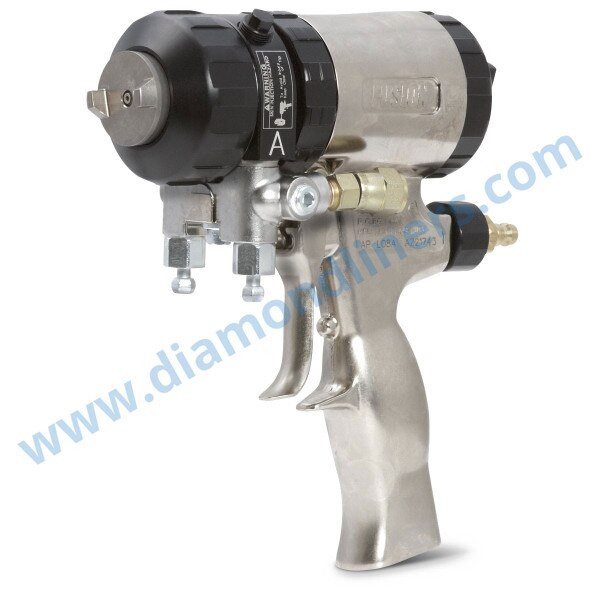

Graco Fusion Air Purge Spray Gun
A revolution in plural component spray guns
Graco's Fusion Air Purge Spray Gun applies everything from polyurea and polyurethane coatings to spray foam.
The new Graco Fusion Air Purge Spray Guns are designed for less maintenance and downtime, longer life and a better mix. All this gives you optimal performance and high productivity and makes Fusion the best plural-component spray gun you'll ever use. Pick one up and experience the revolution!
Features and Benefits:
New Accessories for Foam Insulation!
Applications:
Materials:
Experience the Fusion Difference
Less maintenance and downtime, longer life and improved productivity!
Graco's Fusion Air Purge Spray Gun applies everything from polyurea and polyurethane coatings to spray foam.
The new Graco Fusion Air Purge Spray Guns are designed for less maintenance and downtime, longer life and a better mix. All this gives you optimal performance and high productivity and makes Fusion the best plural-component spray gun you'll ever use. Pick one up and experience the revolution!
Features and Benefits:
- No tools, no maintenance, nohassles
- Hand-tight connections for easy servicing
- Lightest gun in the industry
- Sprays longer with less clogging
- Available in air or mechanical purge
New Accessories for Foam Insulation!
- Four new wide pattern Air Purge Mix Chambers
- 10 new canon extension tips
- Stud wall foam tip
- Adhesive spatter kit
Applications:
- Roofing, concrete and residential insulation
- Tank and pipe coatings
- Water and waste-water treatment
- Waterproofing
- Bed-liners
Materials:
- Polyurea Coatings
- Foam
- Polyurethane Coatings
- Adhesives
- Caulks
Experience the Fusion Difference
Less maintenance and downtime, longer life and improved productivity!
