Graco/Gusmer GX-7 Spray Gun

Excellent for polyurethane foam coatings



The Gusmer GX-7 plural component spray gun is recommended for spraying foam only and is a mechanically self-cleaning spray gun which eliminates costly solvent flushing. The Graco GX-7 spray gun is one of the industries choice guns when it comes to applying two-component foam systems. Excellent for spraying polyurethane foam the Graco/Gusmer GX-7 foam gun is world renowned and proven itself with many foam companies over the years.



After the acquisition of Gusmer by Graco the GX-7, GX-7 400 and GX-7 DI have all been put into one manual.




Features and Benefits:

  • Graco GX-7, GX-7 DI and GX-7 400 mechanical purge spray guns are known for dependable performance and reliability
  • Great mixing and pattern control with its unique internal impingement mixing design

  • Designed to handle the toughest job-site conditions
  • Solvent free: Graco GX-7 features a mechanically self-cleaning valving rod assembly that purges all mixed material from the mixing module at the end of each shot, eliminating costly and environmentally harmful, solvent flushing procedures.

  • Mixing module: Internal impingement mixing module that is precision manufactured for prolonged service life. Several different styles are available which, when used in combination with a pattern control disc, provide optimum mixing and pattern development.
  • Pattern Control Disc: Interchangeable module and disc combinations permit various outputs in round or fan spray and pour patterns to provide more efficient mixing and pattern development
  • Air Cap Control: Helps prevent material build-up on pattern control disc.
  • Air Control: Provides precise regulation of air supply to air cap.

  • Valving Rod Forward Stop: Permits forward positioning of the valving rod to maximize the mechanical self-cleaning process.

  • Filters: Screw-in design incorporates metal-to-gasket sealing surface plus internal check valves. The filters are available in several different mesh sizes and can be easily removed, cleaned and serviced.

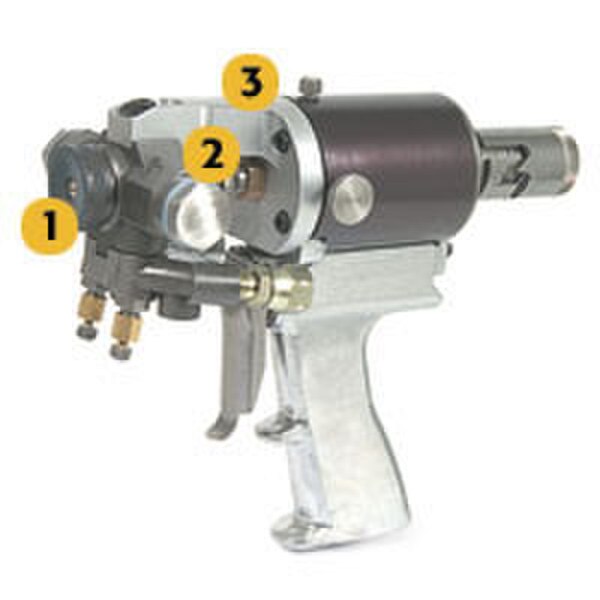

GX-7 Gun Quality Features:

  • Industry proven mix and atomization technology
  • Adjustable air cap cleaning allows you to spray longer
  • Easy to clean A and B material filter reduces downtime



Applications:

  • Roofing, concrete and residential insulation
  • Tank and pipe coatings foam insulation

  • Water and waste-water treatment



Materials:

  • Polyurethane Foam

Parts

Part#
Part Description
List Price
Part#103656
Part NameHex Pipe Nipple Fitting
List Price$2.35
Part#106555
Part NamePacking O-Ring
List Price$3.30
Part#15C161
Part NameUltimate Gun Cleaning Kit
List Price$97.75
Part#15C162
Part NameHVLP gun cleaning kit
List Price$67.50
Part#16K136
Part NameROD, VALVING..REPLACING PARTS 296692,295682,256388
List Price$63.25
Part#16K136
Part NameROD, VALVING..REPLACING PARTS 296692,295682,256388
List Price$63.25
Part#24K734
Part NameKIT, HANDLE, CYLINDER..REPLACING PART 295810
List Price$1,365.00
Part#295405
Part NameNeedle Valve Packing
List Price$3.00
Part#295662
Part NamePipe Plug
List Price$3.80
Part#295663
Part NameCylinder Front Stop
List Price$110.50
Part#295664
Part NameAir Piston Asy
List Price$258.00
Part#295665
Part NamePipe Nipple
List Price$63.25
Part#295666
Part NameSCREW, CLAMP, STOP
List Price$28.10
Part#295667
Part NamePellet
List Price$9.15
Part#295668
Part NameSpring
List Price$10.70
Part#295669
Part NameSocket Head Cap Screw (OLD Gusmer # 16111-19)
List Price$18.00
Part#295671
Part NameTrigger Screw
List Price$6.70
Part#295673
Part NameBASE, BLOCK, GUN
List Price$274.50
Part#295674
Part NameGasket
List Price$3.00
Part#295675
Part NameCYLINDER - AIR
List Price$316.00
Part#295676
Part NameSpring
List Price$7.95
Part#295677
Part NameVALVE - NEEDLE,AIR
List Price$74.00
Part#295678
Part NameCYLINDER - CAP,END
List Price$318.00
Part#295680
Part NameSTOP - TWO-POSITION
List Price$329.00
Part#295681
Part NameO-Ring..(Old Gusmer # 16111-7)
List Price$3.00
Part#295683
Part NameO-Ring..(Old Gusmer # 16111-9)
List Price$3.00
Part#295684
Part NameSocket head cap screw
List Price$3.00
Part#295685
Part NameO-Ring
List Price$3.00
Part#295686
Part NameLiner Valve
List Price$76.75
Part#295687
Part NameSpool Valve
List Price$59.00
Part#295688
Part NameNut Retainer Valve
List Price$71.75
Part#295689
Part NameSeat Spring
List Price$26.00
Part#295690
Part NameClamp Cylinder
List Price$44.30
Part#295692
Part NameSpray Gun Trigger
List Price$37.00
Part#295693
Part NamePipe Plug
List Price$2.45
Part#295706
Part NameO-Ring
List Price$3.00
Part#295709
Part NameScrew shcs 8-32 x 3/4
List Price$3.00
Part#296698
Part NameFan Tip #202
List Price$132.50
Part#296699
Part NameFan Tip #203
List Price$132.50
Part#296700
Part Name#204 Fan Pattern Control Disc (PCD) (18" wide)
List Price$132.50
Part#296701
Part NameKIT - TIP,FAN
List Price$132.50
Part#296702
Part Name#208 Fan Pattern Control Disc (PCD) (8" Wide)
List Price$132.50
Part#296703
Part NameKIT - TIP,FAN
List Price$132.50
Part#296704
Part NameFan Kit Tip
List Price$132.50
Part#296705
Part Name#212 Fan Pattern Control Disc (PCD) (11" Wide)
List Price$132.50
Part#296706
Part Name#213 Fan Pattern Control Disc (PCD) (12" Wide)
List Price$132.50
Part#296707
Part NameKIT - TIP,FAN
List Price$132.50
Part#296715
Part NameKIT - TIP,FAN
List Price$596.00
Part#296716
Part NameKIT - TIP,FAN
List Price$596.00
Part#296862
Part NameKIT - HANDLE,GUN
List Price$1,015.00
Part#296868
Part NameKIT - CLEANOUT TOOL, MODULE
List Price$152.00
Part#296869
Part NameKIT - CLEANOUT TOOL, MODULE
List Price$724.00
Part#296870
Part NameKIT - CLEANOUT TOOL, MODULE
List Price$72.25
Part#296871
Part NameKIT - CLEANOUT TOOL, MODULE
List Price$724.00
Part#296872
Part NameKIT - CLEANOUT TOOL, MODULE
List Price$724.00
Part#296873
Part NameKIT - CLEANOUT TOOL, MODULE
List Price$724.00
Part#296874
Part NameKIT - CLEANOUT TOOL, MODULE
List Price$724.00
Part#296875
Part NameKit Cleanout Tool, Mod.
List Price$72.25
Part#296876
Part NameModule Tool Cleaning Kit
List Price$72.25
Part#296882
Part NameKIT - TIP,FAN
List Price$132.50
Part#296883
Part NameKIT - TIP,FAN
List Price$132.50
Part#296895
Part NameAir Cylinder Rebuild Kit (OLD Gusmer # 22113A-1)
List Price$49.60
Part#296897
Part NameTrigger Valve Rebuild Kit Fits all GX-7, GX-8 and Gap Spray Guns
List Price$40.80
Part#296906
Part NameKIT - MODULE,FAN,PORTED,#10
List Price$89.00
Part#296908
Part Name#1 Round Mix Module with cleanout tool (1 dozen)
List Price$724.00
Part#296909
Part Name#1 Round Module (ISO port .0320) (RES port .0320) (package of 1)
List Price$72.25
Part#296910
Part NameKIT - MODULE,FAN #12
List Price$89.00
Part#296912
Part NameKIT - BLANK,INSERT,125,PEEK
List Price$7,500.00
Part#296913
Part NameKIT - MODULE,PEEK
List Price$1,050.00
Part#296915
Part NameKit Module, Round, #16, (orfice .028)
List Price$72.25
Part#296916
Part Name#2 Round Module
List Price$89.00
Part#296917
Part NameKIT - MODULE,ROUND,#22
List Price$72.25
Part#296919
Part Name#3 Round Module (ISO port .0225) (RES port .0180) (package of 1)
List Price$72.25
Part#296921
Part NameKIT - MODULE,ROUND, PORTED #4
List Price$72.25
Part#296923
Part Name#5 Round Module (ISO port .0225) (RES port .0280) (package of 1)
List Price$72.25
Part#296925
Part NameModule Kit,Fan, Ported #7
List Price$89.00
Part#296971
Part NameSpring
List Price$6.30
Part#C02032
Part NameNut, Lock, Hex
List Price$6.20
Part#C20003
Part NameSCREW - CAP, SOCKET HEAD
List Price$6.20
Part#C20988
Part NamePacking, O-Ring..(old 1123B-4)
List Price$6.10

Downloads

Name
Download
NameGX-7 Brochure
DownloadDownload
NameGX-7 Spray Guns Manual
DownloadDownload
