Graco Reactor 2 E-30i Integrated System

Ready for the job-site or spray rig - right out of the box

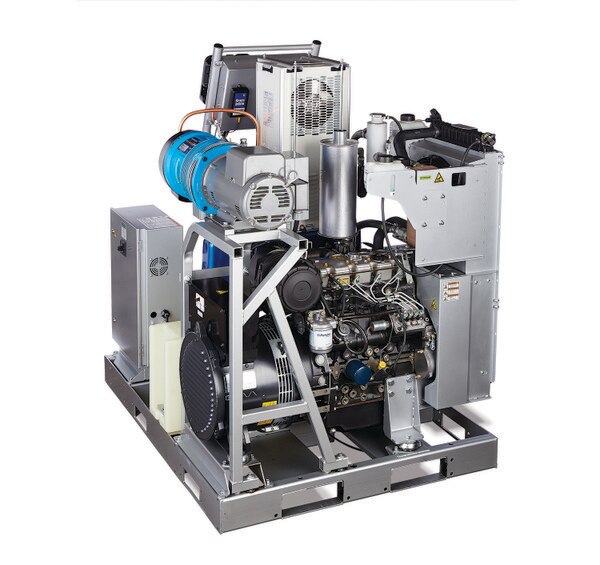

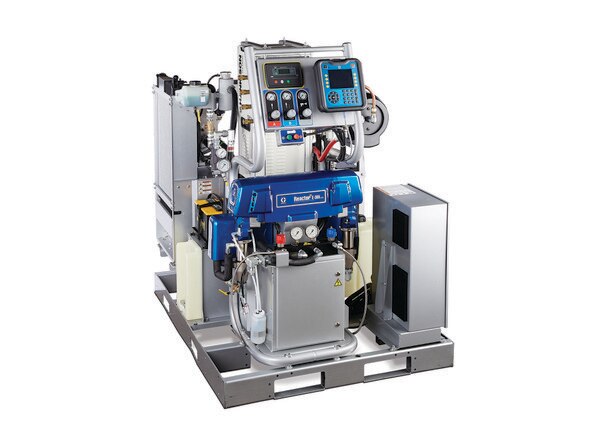

A complete system for polyurea applications, the integrated series of Reactor proportioning systems combine an Electric Reactor and a diesel generator into one package. Complete turnkey models are also available with an integrated air compressor.



Look what the integrated system can do for you:

  • Saves diesel fuel costs - on average of $7,000 annually*
  • Improves productivity - with advanced, easy to use controls
  • Eliminates guesswork - the system is totally engineered and tested by Graco
  • Eliminates costly power issues - associated with shore power and low cost generators
  • Start spraying sooner - with improved heating capacity
  • Improves spray performance - with consistent pressure at the gun
  • Saves time - it's easy to install into a spray rig since it's pre-wired with components already selected and installed
  • Reduces fuel costs even more - compact, portable design fits into a smaller trailer and a smaller trailer means a smaller truck


Smaller generator saves fuel costs

The integrated series of Reactor Proportioning Systems use the heat from the diesel engine to heat the A and B materials. Depending on the model, this eliminates or significantly reduces the need for electrical heaters - reducing your fuel costs. Here's how:

  • The system pulls heat from the engine to heat the A and B materials
  • Since there are no heaters (or only small heaters) on the proportioner, this reduces the electrical demands of the generator, allowing a smaller generator to be used
  • The system's smaller 20kw generator uses less fuel than a standard 20kw generator uses less fuel than a standard 30 or 40kw generator
  • You benefit from an annual fuel savings on average of $7,000*


Innovative design re-purposes wasted heat and saves energy

Graco's patent pending dual coolant loop design ensures that the A and B materials are isolated from the engine coolant. This unique design also provides constant, steady temperature control for superior heating performance.



Advanced control technology


  • Advanced Display Module (ADM) tracks, monitors and saves project information
  • Data can be downloaded onto a USB drive for further analysis
  • Drum fluid levels - let you know if you are running low on material
  • System events such as start-up and shutdown times
  • Daily chemical output
  • Saves key setup data such as temperatures and pressure set points for up to 24 chemical recipes
  • Error messages explain the problem and provide common causes
  • If chemicals are low, or if pressure imbalance occurs, you can program the system to shut down automatically

Parts

No Parts for this item.

Downloads

Name
Download
NameReactor 2 Elite Integrated System Brochure
DownloadDownload
NameReactor 2 E-30i Integrated System Operation Manual
DownloadDownload
NameReactor 2 E-30i Repair - Parts Manual
DownloadDownload
NameReactor 2 E-30i Displacement Pump Repair - Parts Manual
DownloadDownload
NameReactor 2 E-30i Remote Display Manual
DownloadDownload
NameReactor 2 E-30i Air Compressor & Air Dryer Kit Instructions - Parts Manual
DownloadDownload
NameReactor 2 E-30i Feed Pump Shutdown Kit Instructions - Parts Manual
DownloadDownload
NameReactor 2 E-30i Fuel Tank & Battery Cable Extension Kit Instructions - Parts Manual
DownloadDownload
NameReactor 2 E-30i Hose Rack Manual
DownloadDownload
NameReactor 2 E-30i Light Tower Kit Instructions - Parts Manual
DownloadDownload
NameReactor 2 E-30i Shutdown Instructions
DownloadDownload
NamePerkins Engine Repair - Parts Manual
DownloadDownload
NameMecc Alte Alternator Repair - Parts Manual
DownloadDownload
