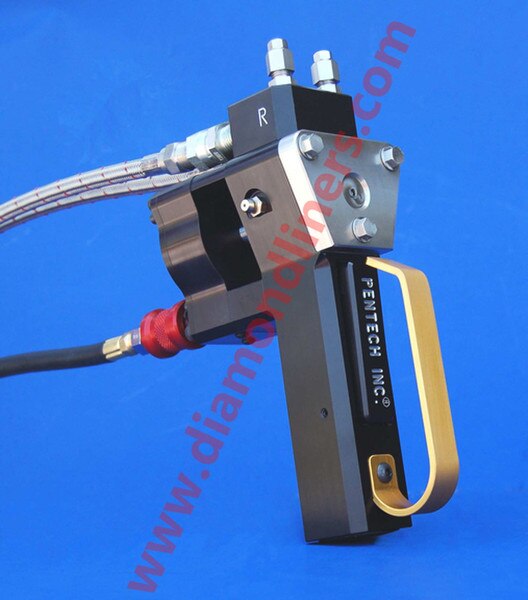

Pentech BD Spray Gun

The Pentech BD Spray Gun is the 2nd most compact, lightest next to the Pentech Palm Gun.



  • Capable of spraying all urethanes foams and polyurea coatings
  • High pressure, direct impingement mixing, mechanical purge spray gun
  • Round spray pattern, variable output
  • Valving rod & PCD require no adjustment
  • Two stage material filtration
  • Coupling block with material shut off valves allows leakage free disconnect from whip hose assembly
  • Rebuild-able check valves
  • Extremely flexible whip hose assembly, inline swivels
  • Lowest parts count, easy set up, easy maintenance
  • Will dispense materials at 1:1 through 4:1
  • Less than 5 minute clean up

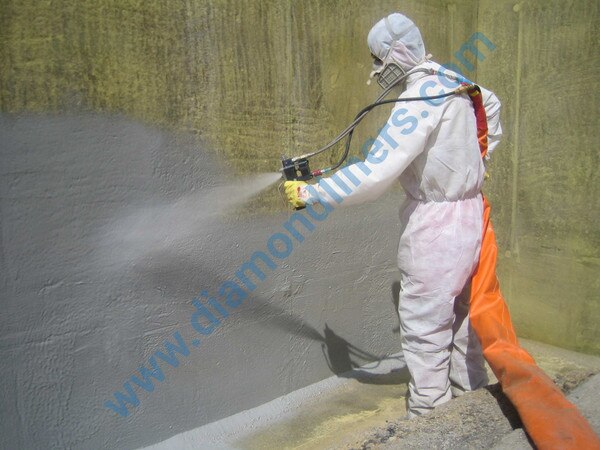

Applications:

  • Secondary containment
  • Refinery/Pipe/Tank
  • Bridge/Architectural
  • Truck Bed-liners

  • Automotive Ground Effects
  • In Mold Coatings, Theming
  • Foam Insulation and Roofing
  • EPS hard-coating



Specifications:

  • Max PSI: 3500
  • Max Output: 40 lbs/min
  • Min Output: 1.5 lbs/min
  • Air required: 80-130 psi
  • Weight: 2.5 lbs
  • Height 6.7"
  • Width: 2.5"
  • Spray Tip to Rear of Gun: 4.2"



The BD1003 is a package and includes the coupling block/whip hose assembly, tool kit, start up kit, and manual.

Parts

Part#
Part Description
List Price
Part#BD2002
Part NameAir Cap
List Price$228.03
Part#BD2010
Part NameTrigger Guard
List Price$65.73
Part#BD2012
Part NameAIR CAP BOLT
List Price$14.06
Part#BD2015
Part NameSOCKET HEAD SET SCREW 10-32
List Price$0.73
Part#BD2017
Part NameAir Needle Valve
List Price$13.89
Part#BD2021
Part NameRear Seal
List Price$8.69
Part#BD2022
Part NameRear Seal Packing Nut
List Price$12.71
Part#BD3000
Part NameAIR CYLINDER ASSY
List Price$739.86
Part#BD3001
Part NameAIR CYLINDER, MACH PLATED
List Price$436.61
Part#BD3004
Part NameS.H. CAP SCREW 10-32
List Price$2.01
Part#BD3006
Part NameAir Cylinder Repair Kit..Includes: PSG3014, BD3010, BD3007, PSG3011
List Price$4.69
Part#BD3007
Part NameO-Ring, Rear Cover
List Price$0.67
Part#BD3009
Part NameREAR COVER
List Price$232.05
Part#BD3010
Part NameO-ring, Piston
List Price$1.34
Part#BD3012
Part NamePiston and Shaft
List Price$96.35
Part#BD3016
Part NamePentech BD Starter Kit
List Price$224.83
Part#BD4000
Part NameValving Rod
List Price$48.96
Part#BD4001
Part NameValving Rod Bolt
List Price$18.73
Part#BD5001
Part NameCoupling Block
List Price$187.34
Part#BD5003
Part NameADAPTER BLOCK, P2, MACH & PLT..
List Price$203.41
Part#BD5005
Part NameAir Slide Valve
List Price$77.61
Part#BD5007
Part NameWhip Hose, A or B
List Price$74.79
Part#BD5300
Part NameCoupling Block / Whip Hose Assembly
List Price$618.27
Part#BD5302
Part NameBall Support
List Price$17.41
Part#BD5303
Part NameBall
List Price$0.81
Part#BD5304
Part NameSnap Ring
List Price$1.07
Part#BD5305
Part NameCheck Valve Assembly
List Price$50.98
Part#BD5307
Part NameCheck Valve Repair Kit, For 2 Check Valves..Includes BD5302, BD5303, BD5304
List Price$35.14
Part#BD6000
Part NameAdapter Block Assembly - Gusmer coupling block
List Price$279.00
Part#BD6100
Part NameAdapter Block Assembly - Graco, Fusion AP and Fusion MP style coupling block
List Price$279.00
Part#BD6200
Part NameP2 Adapter Block Assembly
List Price$281.70
Part#BD7000
Part NameFLUSH BLOCK ASSEMBLY
List Price$368.01
Part#BD7001
Part NameFLUSH BLOCK, MACH PLATED
List Price$157.90
Part#BD8000

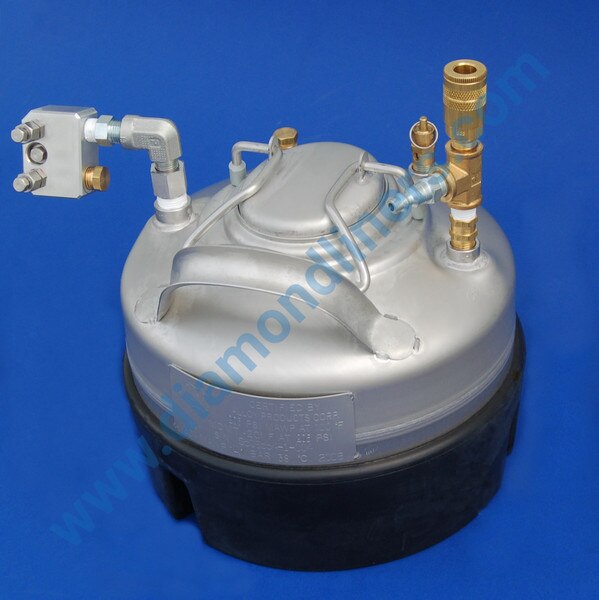

Part NameFlush Tank Assembly
List Price$1,083.97
Part#BD9000
Part NamePentech BD Gun Tool Kit
List Price$177.19
Part#BD9001-13
Part NameMix Module Round Pattern .13
List Price$84.31
Part#BD9001-20
Part NameModule, Mix, Round Pattern
List Price$81.93
Part#BD9001-52
Part NameMODULE, MIX ROUND, .052
List Price$81.93
Part#BD9001-70
Part NameRound Mix Module, .070 Special
List Price$81.93
Part#BD9003-24
Part NamePCD Round Pattern .24
List Price$89.72
Part#BD9003-28
Part NamePCD, Round Pattern
List Price$89.72
Part#BD9003-40
Part NamePCD, Round Pattern, .040
List Price$89.72
Part#BD9003-60
Part NamePCD, round pattern .060
List Price$89.72
Part#BD9003-78
Part NamePCD, ROUND PATTERN, .078
List Price$89.72
Part#BD9003-89
Part NameRound Pattern PCD, .089 Special
List Price$89.72
Part#BD9011
Part NamePIN VISE, LARGE
List Price$44.83
Part#BD9015
Part NameDRILL INDEX, #60 - #41
List Price$74.94
Part#BD9040
Part NameSOCKET HEAD CAP SCREW 6-32
List Price$0.81
Part#BD9041
Part NameAir Whip Hose
List Price$33.54
Part#BD9042
Part NameSwivel, High Pressure..
List Price$82.31
Part#BD9043
Part NameGrease Fitting
List Price$3.35
Part#BD9044
Part NamePlug, Finish
List Price$0.81
Part#BD9045
Part NameButton Head Cap Screw
List Price$0.87
Part#BD9046
Part NameDOWEL PIN
List Price$1.47
Part#BD9054
Part NameFLUSH BOTTLE
List Price$8.70
Part#BD9059
Part NameQD COUPLER BODY, FEMALE
List Price$23.42
Part#BD9060
Part NameELBOW, STREET
List Price$16.06
Part#BD9061
Part NameNIPPLE, HEX
List Price$6.70
Part#BD9062
Part NameGREASE GUN, 3 OZ
List Price$52.19
Part#BD9063
Part NameGREASE CARTRIDGE
List Price$10.71
Part#PSG2004
Part NameSpool Valve
List Price$116.71
Part#PSG2005
Part NameSpring, Spool Valve
List Price$2.12
Part#PSG2006
Part NameButton Head Cap Screw
List Price$0.54
Part#PSG2007
Part NameWasher
List Price$0.25
Part#PSG2009
Part NameSpring, Trigger Paddle
List Price$4.01
Part#PSG2014
Part NameSocket Head Set Screw
List Price$0.73
Part#PSG2016
Part NameBasket Filter 60 mesh
List Price$45.86
Part#PSG3007
Part NameInternal Retaining Ring
List Price$2.35
Part#PSG3010
Part NameO-Ring
List Price$0.73
Part#PSG3011
Part NameSnap Ring
List Price$0.73
Part#PSG5003
Part NameCoupling Block Bolt
List Price$14.38
Part#PSG5500
Part NameManual Valve Assembly
List Price$35.55
Part#PSG7002
Part NameRELIEF VALVE
List Price$23.42
Part#PSG7006
Part NamePIPE PLUG 1/4" BRASS
List Price$5.02
Part#PSG7007
Part NamePIPE TEE
List Price$17.07
Part#PSG7008
Part NameNIPPLE, MALE, QD, 1/4" FPT
List Price$8.02
Part#PSG7012
Part NameCheck Valve
List Price$40.14
Part#PSG7016
Part NameHose Adapter Fitting Assy. - Glascraft
List Price$129.81
Part#PSG7017
Part NameAdapter Fitting Assembly, (To Graco Hoses)
List Price$70.92
Part#PSG8001
Part NameFLUSH TANK, 1 GALLON
List Price$752.08
Part#PSG8003
Part NameO-Ring
List Price$38.49
Part#PSG8009
Part NameNIPPLE, QD, 1/4" MPT
List Price$3.70
Part#PSG9009
Part NameNUT DRIVER, 5/16"
List Price$10.71
Part#PSG9010
Part NameCOMBINATION WRENCH, 5/16"
List Price$14.72
Part#PSG9012
Part NameDrill Bit, 7/64" x 6"
List Price$10.71

Downloads

Name
Download
NameBD Gun Brochure
DownloadDownload
NameBD Spray Gun Manual
DownloadDownload
