Spray Gun Service Kits

1 quart (0.95 liter) Solvent Cup
Part #296980, 120 psi (0.83 MPa, 8.3 bar) maximum working fluid pressure

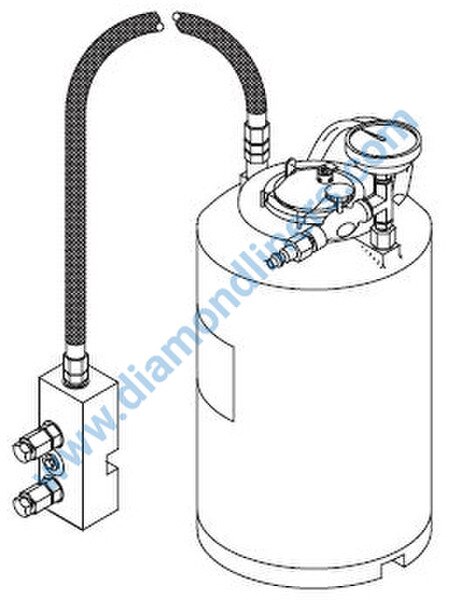

3 quart (11.36 liters) Solvent Tank
Part #296981, 90 psi (0.63 MPa, 6.3 bar) maximum working fluid pressure

Equipment

Part#
Part Description
List Price
Part#248139
Part DescriptionKit, Solvent Flush Fusion AP & MP Gun, 1 qt.
List Price$663.00
Part#248229
Part DescriptionFusion Gun Flush System, 5 gal, Pail Kit, Fusion AP & MP Guns
List Price$1,635.00
Part#256510
Part DescriptionKit, Solvent Flush, Fusion CS Gun
List Price$724.00
Part#296980
Part DescriptionGun Service Kit, 1 QT., Graco/Gusmer
List Price$917.00
Part#296981
Part DescriptionGun Service Kit, 3 Gallon, Graco/Gusmer
List Price$1,480.00

Parts

Part#
Part Description
List Price
Part#100021
Part NameSCREW - CAP HEX HD
List Price$4.65
Part#100030
Part Name1/4M x 1/8F Bushing
List Price$25.20
Part#101108
Part NamePAIL - METAL
List Price$119.00
Part#104984
Part NameFitting; Tee Female 1/4
List Price$25.00
Part#108047
Part NameSPRAYER SOLVENT FLUSH
List Price$416.00
Part#108056
Part NameFITTING - LINE,AIR
List Price$40.00
Part#109126
Part NameHOSE - COUPLED,10 FT
List Price$93.25
Part#114371
Part NameKNOB - SCREW
List Price$17.70
Part#116315
Part NameFITTING - COMPRESSION,ELBOW
List Price$10.90
Part#116316
Part NameFitting Compression, STR.
List Price$9.15
Part#117510
Part NameCoupler, air line, 1/4 NPT Male Quick Disconnect
List Price$50.50
Part#150136
Part NameVALVE - SERVICE AIR
List Price$13.60
Part#151519
Part NameFitting; Nipple, reducing; 1/4 npt x 1/8 npt
List Price$15.90
Part#15B221
Part NameCoupling Block Bolt; 5/16-24
List Price$26.00
Part#15D435
Part NameManifold Flush, Fusion
List Price$131.00
Part#15R906
Part NameMANIFOLD,FLUSH,FUSION, CS
List Price$98.00
Part#162449
Part NameNIPPLE; Pipe Nipple 1/2 (m) x1/4 (m)..
List Price$34.10
Part#169970
Part NameNipple; Male Pipe Thread Steel 1/4" (m) NPT
List Price$2.50
Part#180664
Part NameAdapter
List Price$76.25
Part#180716
Part NameLABEL WARNING
List Price$0.00
Part#191872
Part Name1/8" x 1/4" Gun Block to Hose Fitting
List Price$7.80
Part#197971
Part NameHOSE - POLYETHYLENE,STRAIGHTENED
List Price$7.05
Part#206264
Part NameValve: Air Needle
List Price$36.80
Part#218798
Part NameStrainer
List Price$10.90
Part#240212
Part NameCOVER - REPLACEMENT
List Price$577.00
Part#243803
Part NameHose Coupled
List Price$61.50
Part#243804
Part NameHOSE COUPLED
List Price$72.75
Part#244524
Part NameWire Ground Assy W/Clamp
List Price$66.00
Part#246356
Part NameManifold Fluid Shutoff Valve
List Price$76.25
Part#295596
Part NameCoupler Plug
List Price$7.80
Part#295885
Part NameHose Nipple
List Price$6.65
Part#295885
Part NameHose Nipple
List Price$6.65
Part#296128
Part NameCoupling Block Gasket (Package of 2) (Old Gusmer #3101-1-pkg)
List Price$17.30
Part#296626
Part NameManual Valve Assembly (Package of 2)
List Price$153.50
Part#296626
Part NameManual Valve Assembly (Package of 2)
List Price$153.50
Part#296979
Part NameCoupling Block Mounting Screw (Package of 2)
List Price$104.50
Part#296979
Part NameCoupling Block Mounting Screw (Package of 2)
List Price$104.50
Part#297068
Part NameHOSE - 3/16ID X 3 FT LONG,300WPR
List Price$119.00
Part#297068
Part NameHOSE - 3/16ID X 3 FT LONG,300WPR
List Price$119.00
Part#297072
Part NameBUSHING
List Price$63.75
Part#297074
Part NameFITTING ADAPTOR
List Price$35.30
Part#297075
Part NameFITTING ADAPTER,SWIVEL
List Price$293.00
Part#297079
Part NameFITTING,.25 NPT X .4375 JIC
List Price$21.10
Part#297080
Part NameVALVE - NEEDLE
List Price$97.00
Part#297103
Part NameVALVE - PRS. RELIEF,ASSY
List Price$203.50
Part#C36260
Part NameGAUGE - PRESSURE,AIR
List Price$99.75
Part#D31211
Part NamePUMP DIAPHRAGM 307
List Price$873.00

Downloads

Name
Download
NameGusmer Spray Guns Service Kits Manual
DownloadDownload
NameGraco Spray Guns Service Kits Manual
DownloadDownload
