Elcometer 106 Pull Off Adhesion Tester

The Elcometer 106 Adhesion Tester is easy to operate and fully portable, and provides a numerical value for adhesion. Applications for the Elcometer 106 Adhesion Test include paint or plasma spray on bridge decking, coatings on steel, aluminum, concrete etc.
  • Supplied in a carry case - ideal for site tests
  • Hand operated - no need for a power supply
  • Includes a cutter for EN13144 and ISO 4624 tests
Test Method

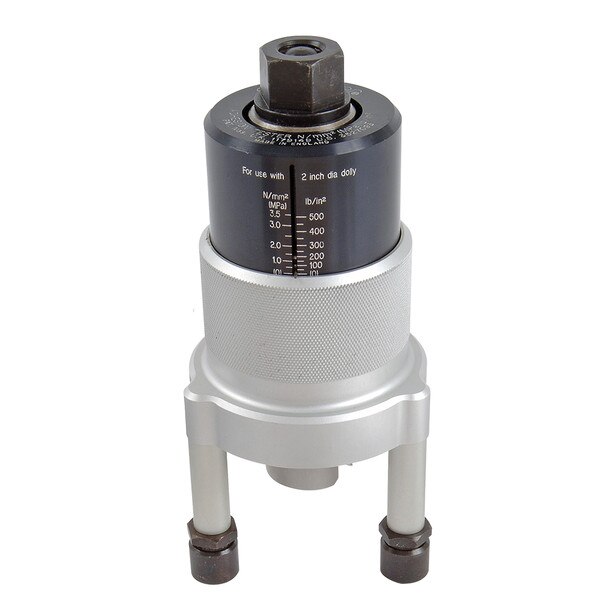

An adhesion test dolly is bonded to the coating using an adhesive. The Elcometer 106 adhesion tester houses a spring arrangement which applies a lift force to the dolly as the tension is increased.

When the coating is pulled off the surface, an indicator on the scale shows the numerical value of adhesion expressed in terms of the force per unit area required to remove the dolly.

Inspection of the dolly face is required to determine the failure mode.

To increase sensitivity at low values or for uneven surfaces, a 40mm (1.52") dolly is available. When using the 40mm (1.52") dolly, divide the scale reading by 4.

Equipment

Part#
Part Description
List Price
Part#F106-1

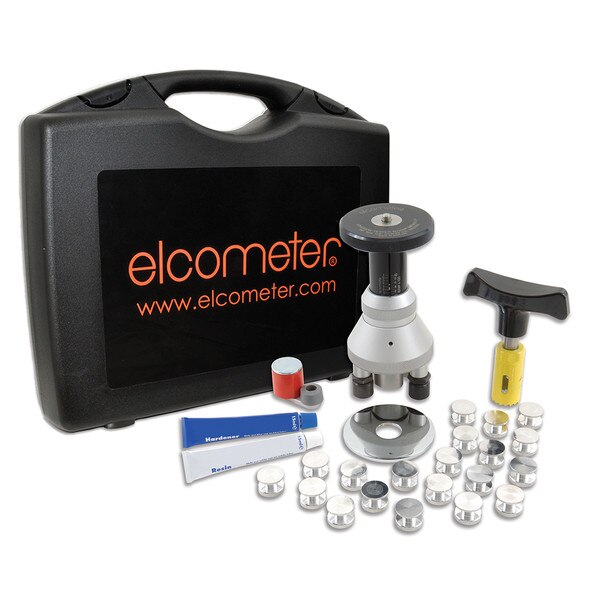

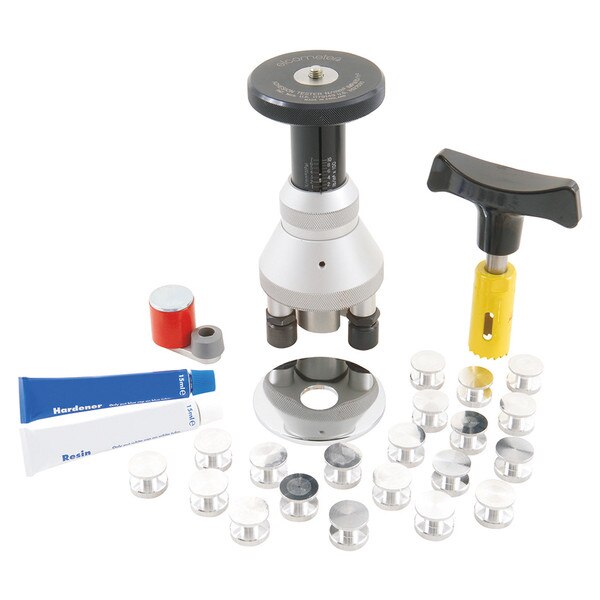

Part DescriptionELCOMETER 106 ADHESION TESTER 0-500 PSI: Includes: Elcometer 106, 20 dollies, Araldite Adhesive Pack, Base Support Ring, Magnetic Clamp, Cutter, Operating Instructions, Carrying Case
List Price$1,065.00
Part#F106-2
Part DescriptionELCOMETER 106/2 ADHESION TESTER 0-1000 PSI: Includes: 20 dollies, Araldite Adhesive Pack, Base Support Ring, Magnetic Clamp, Cutter, Operating Instructions, Carrying Case
List Price$1,065.00
Part#F106-3
Part DescriptionELCOMETER 106/3 ADHESION TESTER 0-2000 PSI: Includes: 20 dollies, Araldite Adhesive Pack, Base Support Ring, Magnetic Clamp, Cutter, Operating Instructions, Carrying Case
List Price$1,100.00
Part#F106-4
Part DescriptionELCOMETER 106/4 ADHESION TESTER 0-3200 PSI: Includes: 20 x dollies, Araldite Adhesive Pack, Base Support Ring, Magnetic Clamp, Cutter, Ratchet Spanner, Operating Instructions, Carrying Case
List Price$1,220.00
Part#F106-5
Part DescriptionELCOMETER 106/5 ADHESION TESTER 0-30 PSI: Includes: 20 dollies, Araldite Adhesive Pack, Base Support Ring, Magnetic Clamp, Cutter, Operating Instructions, Carrying Case
List Price$1,220.00

Parts

Part#
Part Description
List Price
Part#TCAL-106
Part NameCALIBRATION CERTIFICATE FOR ELCOMETER MODEL 106 ADHESION TESTER: Traceable to NIST and NAMAS. Elcometer is an ISO 9001:2008 certified calibration facility. Lloyds Register Approval No: UQA 0111526.
List Price$210.00
Part#T1062895
Part NameELCOMETER MODEL 106 DOLLY WITH FACTORY SMOOTH FINISH: For use with the Elcometer 106 adhesion testers (except 106/6). Dolly Diameter 20mm (0.76”), Dolly Area 314mm² (0.49 sq inch)
List Price$1.65
Part#T99912906
Part NameARALDITE TWO PART EPOXY ADHESIVE, TWO 15 ml TUBES: Resin, Hardner, 24 Hour Cure Time
List Price$25.00
Part#T1062914
Part NameSpare Large Dollies 40 mm Diameter..For Elcometer 106/4 (PKG/5)
List Price$181.00
Part#T1062915
Part NameLarge Base Ring For 40mm Dolly used with Elcometer 106/4..Required for use with the 106/4 using a 40mm dolly.
List Price$96.00
Part#T99914009
Part Name20mm (0.76") Dolly Cutter
List Price$88.00
Part#T1062895B
Part NameELCOMETER MODEL 106 ADHESION TESTER ALUMINIUM DOLLY WITH BLASTED PROFILE FINISH: Supplied with a factory finished anchor profile. Use with the Elcometer 106 adhesion testers (except 106/6). Dolly Diameter 20mm (0.76”).
List Price$2.25

Downloads

Name
Download
NameElcometer 106 Data Sheets
DownloadDownload
NameElcometer 106 Manual
DownloadDownload
NameElcometer Araldite Epoxy Adhesive MSDS
DownloadDownload
