Elcometer 224 Digital Surface Profile Gauge - Integral

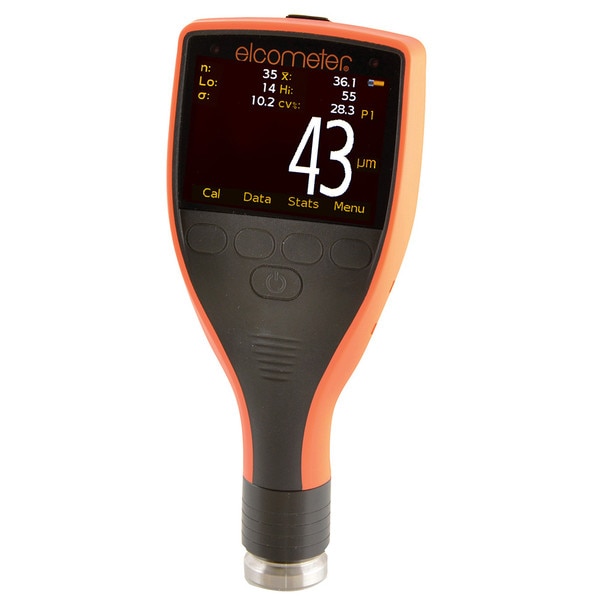

The Elcometer 224 provides the very latest in surface profile measuring technology for measuring profiles on either flat or curved surfaces. Fast, accurate and very user friendly, the Elcometer 224 is available with or without memory and Bluetooth.


The Elcometer 224 is available in two different models: Model B and Model T. Each gauge provides the user with increasing functionality - from the entry level Elcometer 224 Model B, to the top of the range Elcometer 224 Model T, with memory, alpha-numeric batching and Bluetooth communication.

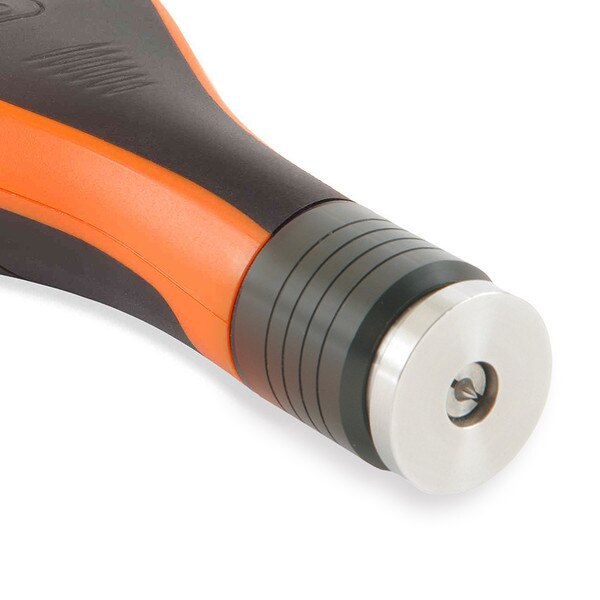

Integral gauges are ideal for single handed operation as the wide footprint of the internal probe provides greater stability during measurement - allowing for consistent, repeatable and accurate results.


Designed with you in mind

User Friendly

  • Large buttons ideal for gloved hands
  • Easy to use menus in multiple languages
  • High contrast color LCD with auto rotate
  • High and low reading limit indicators
  • Factory calibrated for immediate use
Accurate
  • Measurement capability 5%
  • Can be used in accordance with National and International Standards
  • Temperature stable measurements
  • Statistics are calculated and displayed in real time

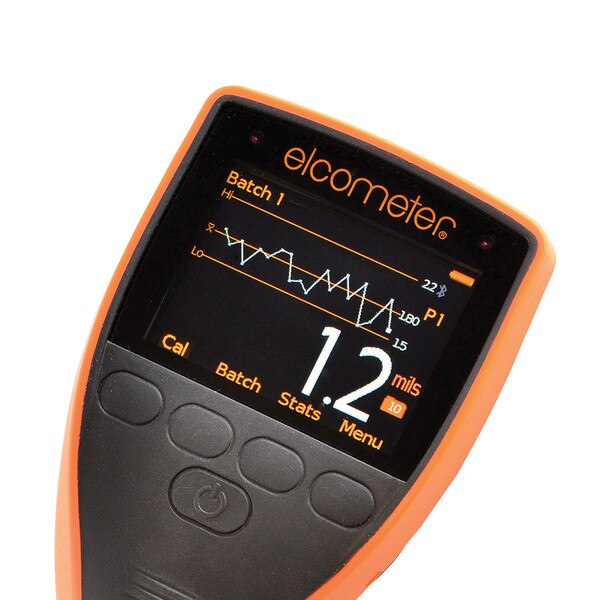

  • Live and batch readings graph format for instant analysis
Reliability
  • Repeatable and reproducible measurements
  • 2 year gauge warranty
  • Supplied with fully traceable Test Certificates
  • Batch & Individual readings are date and time stamped
Tough
  • Sealed, heavy duty and impact resistant
  • Dust and waterproof equivalent to IP64
  • Suitable for use in harsh environments
  • Scratch and solvent resistant display
  • Durable gauge and probe construction
Efficient
  • Fast reading rate of 50+ per minute
  • Integral and separate probe options to suit your application
  • Alpha numeric batch identification
  • Compatible with ElcoMaster 2.0 and ElcoMaster Mobile App
  • Powersave mode with tap awake
Powerful
  • User replaceable tough tungsten carbide tip - can be used for up to 20,000 readings
  • USB and Bluetooth data output to iPod, iPhone and iPad or Android mobile devices
  • Stores up to 150,000 readings in 2,500 batches
  • Measures profiles up to 20 mils

Equipment

Part#
Part Description
List Price
Part#E224C-BI
Part Description224 MODEL B / INTEGRAL PROBE 0-20 MILS (500 microns) ELCOMETER MODEL 224 B DIGITAL SURFACE PROFILE GAUGE, INTEGRAL PROBE 0-20 MILS (500μm): The Elcometer 224 provides the very latest in surface profile measuring technology. Accurate, fast and user friendly. Ideal for single handed operation as the
List Price$690.00
Part#E224C-TI
Part Description224 MODEL T / INTEGRAL PROBE 0-20 MILS (500 microns) ELCOMETER MODEL 224 TOP DIGITAL SURFACE PROFILE GAUGE, INTEGRAL PROBE. 0-20 MILS (500μm): Provides the very latest in surface profile measuring technology. Accurate, fast and user friendly. Bluetooth® and USB enabled. Stores up to 150,000 reading
List Price$848.00

Parts

Part#
Part Description
List Price
Part#T99921325
Part NameUSB Cable
List Price$15.00
Part#T99922341
Part NameSelf Adhesive Screen Protector (pkg 10)
List Price$35.00
Part#T22420095
Part NameREPLACEMENT TIPS FOR 224 PACK/5
List Price$450.00
Part#T22421882C
Part NameELCOMETER MODEL 224 SURFACE PROFILE GAUGE CERTIFIED CALIBRATION TEST KIT: Includes: 5 & 20 mil certified stainless steel and ceramic calibration verification foils, custom ground glass zero tile. Supplied with NIST and NAMAS traceable calibration certificate.
List Price$149.00
Part#T22420072
Part NameModel 224 Zero Plate w/ Wallet
List Price$25.00
Part#T22419793
Part Name224 Replacement Tip Protection Cap
List Price$6.00
Part#T22419961A
Part Name224 CERAMIC CALIBRATION SHIM
List Price$52.00
Part#T22420053
Part NameReplacement Tips (Pkg 2) and Fixing Tool
List Price$250.00
Part#T22420054
Part NameReplacement Tips for 224..Pack/2
List Price$225.00
Part#TCAL-224
Part NameCalibration Certificate for Model 224 Surface Profile Gage: Traceable to NIST or ISO/UKAS. Elcometer Inc is an ISO/IEC 17025-2017 accredited calibration facility. PJLA Accreditation No: 99996. Certificate No.: L18-362.
List Price$150.00

Downloads

Name
Download
NameElcometer 224 Data Sheet
DownloadDownload
NameElcometer 224 Manual
DownloadDownload
NameElcometer 224 Quick User Guide
DownloadDownload
