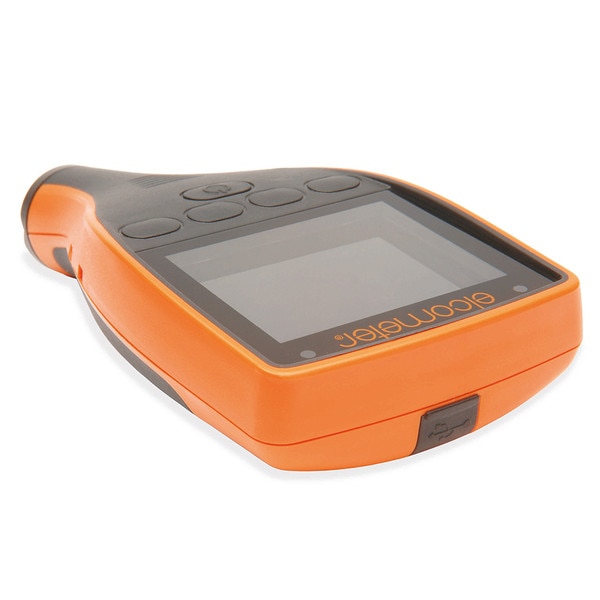

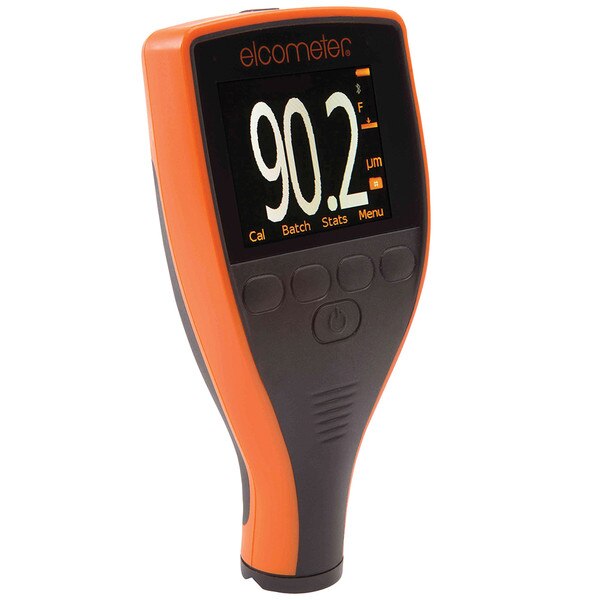

Elcometer 456 Coating Thickness Gauge - Integral

The new Elcometer 456 Coating Thickness Gauge sets new standards making measuring dry film thickness faster, reliable and accurate; helping you to become more efficient.

The Elcometer 456 is available in four different models: E, B, S and T. Each gauge provides the user with increasing functionality - from the entry level Elcometer 456 E, to the top of the range Elcometer 456 T, with memory, alpha-numeric batching and Bluetooth communication.

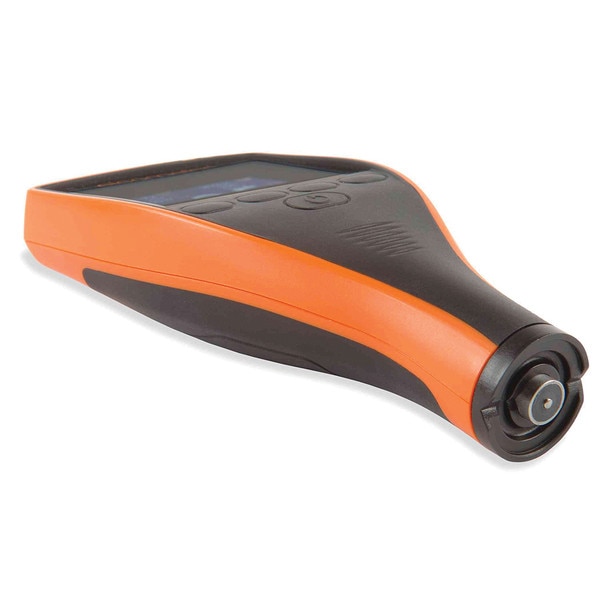

Integral coating thickness gauges are ideal for single handed operation as the wide footprint of the Bigfoot internal probe provides greater stability during measurement - allowing for consistent, repeatable and accurate results.


Key Features of the Elcometer 456 Coating Thickness Gauge include:


Easy

  • Large buttons ideal for gloved hands
  • Easy to use menus in multiple languages
  • High contrast color LCD with auto rotate
  • High and low reading limit indicators
  • Factory calibrated for immediate use


Accurate

  • Measurement capability to ±1%
  • Can be used in accordance with National & International standards
  • Temperature stable measurements
  • Increased reading resolution for thin coatings
  • Measures accurately on smooth, rough, thin and curved surfaces


Reliable

  • Repeatable and reproducible
  • 2 year gauge warranty
  • Supplied with fully traceable test certificates
  • Batch date and time stamp facility

Rugged
  • Sealed, heavy duty and impact resistant
  • Dust and waterproof equivalent to IP64
  • Scratch and solvent resistant display
  • Durable gauge and probe construction
  • Suitable for use in harsh environments


Efficient

  • Fast reading rate of 70+ per minute, 140+ per minute with Ultra/Scan Probe
  • Multiple calibration memories
  • Alpha numerical batch identification
  • User selectable calibration methods
  • Compatible with ElcoMaster 2.0 and ElcoMaster Mobile App


Powerful

  • Wide range of interchangeable probes
  • USB and Bluetooth data output to iPod, iPhone and iPad or Android mobile devices
  • Stores up to 150,000 readings in 2,500 batches
  • Measures up to 31mm (1220mils) of coating on metal substrates




Equipment

Part#
Part Description
List Price
Part#A456CFBI1
Part DescriptionALL NEW ELCOMETER 456 BASIC FERROUS METAL SUBSTRATE COATING THICKNESS GAGE WITH INTEGRAL PROBE. RANGE: 0 - 60 MILS: Includes: Multiple calibration adjustment options, full color screen with backlight, Metric/Imperial Units, Statistics (# of readings, mean, highest /lowest readings, standard deviatio
List Price$702.00
Part#A456CNBI1
Part DescriptionALL NEW ELCOMETER 456 BASIC NON-FERROUS METAL SUBSTRATE COATING THICKNESS GAGE WITH INTEGRAL PROBE. RANGE: 0 - 60 MILS: Includes: Multiple calibration adjustment options, full color screen with backlight, Metric/Imperial Units, Statistics (# of readings, mean, highest /lowest readings, standard devi
List Price$770.00
Part#A456CFNFBI1
Part DescriptionALL NEW ELCOMETER 456 BASIC FERROUS AND NON-FERROUS METAL SUBSTRATE COATING THICKNESS GAGE WITH INTEGRAL PROBE. RANGE: 0 - 60 MILS: Includes: Multiple calibration adjustment options, full color screen with backlight, Metric/Imperial Units, Statistics (# of readings, mean, highest /lowest readings, s
List Price$1,005.00
Part#A456CFBI2
Part DescriptionALL NEW ELCOMETER 456 BASIC FERROUS METAL SUBSTRATE COATING THICKNESS GAGE WITH INTEGRAL PROBE. RANGE: 0 - 200 MILS: Adjustable resolution for thick and thin coatings. Includes: Multiple calibration adjustment options, full color screen with backlight, Metric/Imperial Units, Statistics (# of reading
List Price$799.00
Part#A456CFBI3
Part DescriptionALL NEW ELCOMETER 456 BASIC FERROUS METAL SUBSTRATE COATING THICKNESS GAGE WITH INTEGRAL PROBE. RANGE: 0 - 500 MILS: Includes: Multiple calibration adjustment options, full color screen with backlight, Metric/Imperial Units, Statistics (# of readings, mean, highest /lowest readings, standard deviati
List Price$955.00
Part#A456CFNFSI1
Part DescriptionALL NEW ELCOMETER 456 STANDARD DUAL FERROUS AND NON-FERROUS METAL SUBSTRATE COATING THICKNESS GAGE, INTEGRAL PROBE, RANGE 0 - 60 MILS: Now compatible with iPod, iPhone and iPad and Android™ mobile devices. Memory stores up to 1500 readings in a single batch file. Readings may be sent directly to com
List Price$1,358.83
Part#A456CFTI1
Part DescriptionALL NEW ELCOMETER 456 TOP FERROUS METAL SUBSTRATE COATING THICKNESS GAGE WITH INTEGRAL PROBE. RANGE: 0 - 60 MILS: Now compatible with iPod, iPhone and iPad and Android™ mobile devices. Memory stores up to 150,000 readings in up to 2500 batch files that are each capable of storing a distinct calibrat
List Price$1,155.00
Part#A456CFNFTI1
Part DescriptionALL NEW ELCOMETER 456 TOP FERROUS AND NON-FERROUS METAL SUBSTRATE COATING THICKNESS GAGE WITH INTEGRAL PROBE. RANGE: 0 - 60 MILS: Now compatible with iPod, iPhone and iPad and Android™ mobile devices. Memory stores up to 250,000 readings in up to 2500 batch files that are each capable of storing a d
List Price$1,605.00
Part#A456CFSI1
Part DescriptionALL NEW ELCOMETER 456 STANDARD FERROUS METAL SUBSTRATE COATING THICKNESS GAGE, RANGE 0 - 60 MILS
List Price$825.00

Parts

Part#
Part Description
List Price
Part#T99922341
Part NameSelf Adhesive Screen Protector (pkg 10)
List Price$35.00
Part#T99921325
Part NameUSB Cable
List Price$22.88
Part#TCAL-456
Part NameLong form Certificate of Inspection for Model 456 Coating Thickness Measuring Probe. *If you require a Calibration Certificate with Measurement Uncertainties, request a quote for TCal-456-MU.* Elcometer Inc. is an ISO/IEC 17025:2017 accredited calibration facility. PJLA Accreditation No. 99996
List Price$150.00
Part#T9994910
Part Name2" X 1" FERROUS ZERO PLATE
List Price$45.00
Part#T9994911
Part Name2" x 1" NON-FERROUS ZERO PLATE: When used in conjunction with a set of foils, these test plates are ideal to test a coating thickness gauge's functionality and calibration
List Price$45.00
Part#T99022255-1C
Part NameScale 1 Certified Precision Foil Set / 1%; Sizes Include: 1, 2, 5, 10, 20, 40mils
List Price$291.38
Part#T99022255-2C
Part NameScale 2 Certified Precision Foil Set / 1%; Sizes Include: 1, 2, 5, 10, 20, 40, 80, 120 mils
List Price$278.00
Part#T995111261
Part Name4 PIECE CERTIFIED FERROUS STANDARD 2, 6, 10 & 20 MILS W/ ZERO PLATE TRACEABLE TO NIST & NAMAS
List Price$510.00
Part#T995111262
Part Name4 PIECE CERTIFIED FERROUS STANDARD 2, 3, 5 & 7 MILS W/ ZERO PLATE
List Price$460.00
