Elcometer Digital Inspection Kits

Available as a Basic or Top version, these digital inspection kits have been specifically designed to undertake the three principal inspection requirements in the Protective and Industrial Coatings Industry – climate, surface profile and dry film thickness.

Ferrous Digital Inspection Kit; Basic Version
Inspection kit containing entry level digital inspection equipment designed for users who want to carry out key inspection tasks.

Kit Contents:

  • Elcometer 224 Model B Integral Digital Surface Profile Gauge, 0 – 500μm (0 – 20mils)
  • Elcometer 319 Standard Dewpoint Meter
  • Elcometer 456 Model B Ferrous Separate Coating Thickness Gauge with standard separate probe; 0- 1500μm (0 – 60mils)


Gauges have on-screen statistics and a rolling memorya for storing up to 10 readingsb.

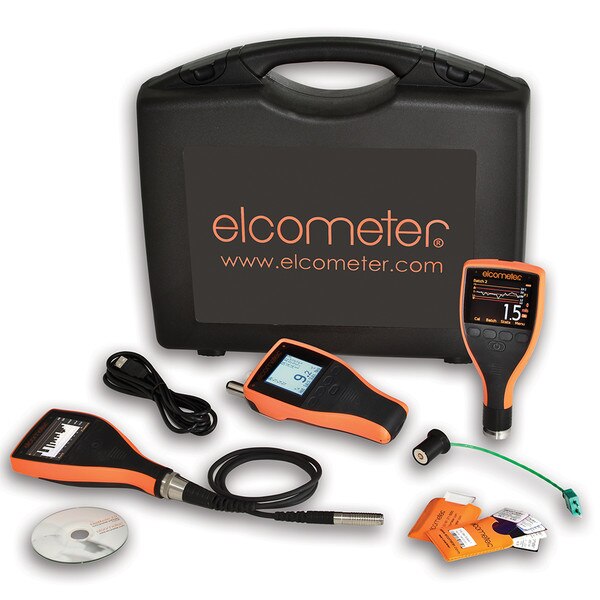

Ferrous Digital Inspection Kit; Top Version

Contains higher specification instruments with greater functionality for more advanced inspection processes and measurements.


Kits Contents:

  • Elcometer 224 Model T Integral Digital Surface Profile Gauge, 0 – 500μm (0 – 20mils)
  • Elcometer 319 Top Dewpoint Meter with Magnetic Surface Probe
  • Elcometer 456 Model T Ferrous Separate Coating Thickness Gauge with standard separate probe; 0- 1500μm (0 – 60mils)
  • ElcoMaster™ Data Management Software & USB Cable


Gauges have memory which can store up to 150,000b readings and Bluetooth® technology for cable free data transfer and are compatible with ElcoMaster™ Software, ideal for creating detailed, professional reports.



FNF Digital Inspection Kits; Basic Version

Kit Contents:

  • Elcometer 224 Model B Integral Digital Surface Profile Gauge, 0 – 500μm (0 – 20mils)
  • Elcometer 319 Standard Dewpoint Meter
  • Elcometer 456 Model B FNF Separate Coating Thickness Gauge with standard FNF separate probe; 0- 1500μm (0 – 60mils)



FNF Digital Inspection Kits; Top Version

 Kit Contents:

  • Elcometer 224 Model T Integral Digital Surface Profile Gauge, 0 – 500μm (0 – 20mils)
  • Elcometer 319 Top Dewpoint Meter with Magnetic Surface Probe
  • Elcometer 456 Model T FNFSeparate Coating Thickness Gauge with standard FNF separate probe; 0- 1500μm (0 – 60mils)
  • ElcoMaster™ Data Management Software & USB Cable


You can connect Elcometer Bluetooth® enabled inspection gauges directly to iPhone, iPad and iPods or Android™ mobile phones and tablets via ElcoMaster™ Mobile App.

Equipment

Part#
Part Description
List Price
Part#YKIT-DIGITAL-B
Part DescriptionELCOMETER DIGITAL INSPECTION KIT, BASIC VERSION: Specifically designed to undertake the three principal inspection requirements in the Protective and Industrial Coatings Industry – climate, surface profile and dry film thickness. Includes: Elcometer 224 Basic Integral Digital Surface Profile Gauge S
List Price$1,849.00
Part#YKIT-DIGITAL-T
Part DescriptionELCOMETER DIGITAL INSPECTION KIT, TOP VERSION: Specifically designed to undertake the three principal inspection requirements in the Protective and Industrial Coatings Industry – climate, surface profile and dry film thickness. Includes: Elcometer 224 Top Integral Digital Surface Profile Gauge Scale
List Price$2,505.00
Part#YKIT-DIGITALFNF-B
Part DescriptionELCOMETER DIGITAL INSPECTION KIT, BASIC, FERROUS/NON-FERRROUS
List Price$2,253.00
Part#YKIT-DIGITALFNF-T
Part DescriptionElcometer Digital Inspection Kit Top FNF
List Price$3,005.00

Parts

Part#
Part Description
List Price
Part#T22420053
Part NameReplacement Tips (Pkg 2) and Fixing Tool
List Price$250.00
Part#T22420095
Part NameREPLACEMENT TIPS FOR 224 PACK/5
List Price$450.00
Part#T22419793
Part Name224 Replacement Tip Protection Cap
List Price$6.00
Part#T22420072
Part NameModel 224 Zero Plate w/ Wallet
List Price$25.00
Part#T31920162-1
Part NameMODEL 319 MAGNETIC SURFACE PROBE: K-Type connector allows measurement of surface temperature during remote logging. Operating range -20 to +80ºC (-4 to +176ºF). Accuracy±0.5°C (±1°F) 0.1°C (0.1°F).
List Price$160.00
Part#T9996390
Part NameLIQUID TEMPERATURE PROBE
List Price$109.00
Part#T456CF1S
Part NameELCOMETER 456 STRAIGHT FERROUS SUBSTRATE COATING THICKNESS PROBE, SCALE 1 (0 - 60 MILS): Straight probe for measuring coating on both flat and curved surfaces. Minimum convex surface radius 4mm (0.16"); minimum concave surface radius 25mm (0.98"); minimum headroom 85mm (3.35"); minimum sampl
List Price$429.00
Part#T456CFNF1S
Part NameALL NEW ELCOMETER 456 PROBE FOR FERROUS AND NON-FERROUS METAL SUBSTRATES, SCALE 1: 0 -60 MILS (0 - 1500 μm). Ideal for measuring coatings on flat or curved surfaces. Supplied with Test Certificate completed on the date of manufacture.
List Price$722.00
Part#T456CF1P
Part NameALL NEW ELCOMETER 456 FERROUS SUBSTRATE PLUG IN INTEGRAL (PINIP) PROBE, SCALE 1 (0 - 60 MILS): Probe attaches to a separate gage to give it the performance and profile of an integral probe gage.
List Price$382.50
Part#T456CFNF1P
Part NameALL NEW ELCOMETER 456 PLUG IN INTEGRAL PROBE (PINIP) FOR FERROUS AND NON-FERROUS METAL SUBSTRATES, SCALE 1: 0 -60 Mils. Plug-in probes convert a separate to an Integral gauge
List Price$656.00
Part#T99022255-1
Part NameSCALE 1 PRECISION FOIL SET / 1%; (1, 2, 5, 10, 20, 40 mils)
List Price$150.00
Part#T99022255-1C
Part NameScale 1 Certified Precision Foil Set / 1%; Sizes Include: 1, 2, 5, 10, 20, 40mils
List Price$255.00
Part#T9994910
Part Name2" X 1" FERROUS ZERO PLATE
List Price$35.00
Part#T9999529
Part Name3" X 2" FERROUS ZERO TEST PLATE, 2%: When used in conjunction with a set of foils, these test plates are ideal to test a coating thickness gauge’s functionality and calibration.
List Price$20.00
Part#T99921325
Part NameUSB Cable
List Price$15.00
