Foam Planer

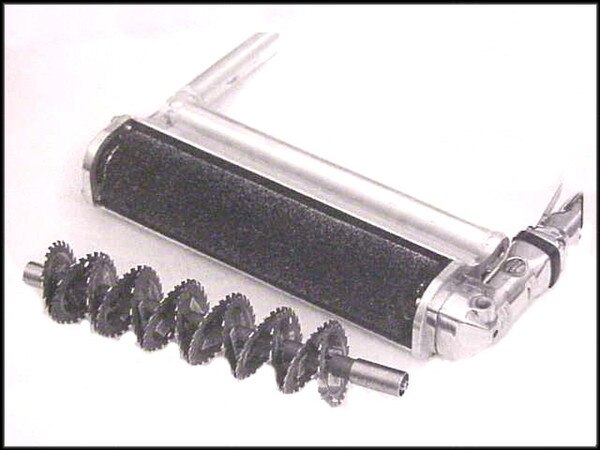

This Foam Planer comes with Carbide Blades or a Wire Brush, 24" or 16" models available. The ideal look to flush finish any spray applied polyurethane foam. A basic, durable instrument to complement existing urethane spray equipment for all work or trades requiring flat smooth finished surfaces. The wire brush and blade are 3 1/8" x 16 or 24" long. The wire brush and unbreakable carbide blade are interchangeable, both carried in standard Fafnir ball bearings for easy maintenance. Drive motor is in the handle for ease of use.


Nylon brushes are for cutting sprayed 1/2 pound closed and/or open cell foam. The blades are much too aggressive for this type of foam. The blades chew up studs! The blade model is to be used on 2-10 pound closed cell foam applied to roofs, commercial cold storage, commercial vessel fish holding tanks, etc.


Features:

  • 3 1/8" wire brush
  • Available in 16" and 24" models
  • Unbreakable cutter
  • Interchangeable wire brush and blades
  • Motor in handle


Requirements:

The air motor operates most efficiently when air pressure is maintained at 125 psi. An air compressor able to deliver 23.0 CFM is necessary. Incoming air should be dry, clean and filtered. 3/4" line from compressor, last 20' use 1/2" airline. Lubricate this tool at least once every 8 hours by pouring a small quantity of air motor oil through the air inlet.


Safety:

Although every effort has been made to make the foam planer and brushes as safe as possible, it is the responsibility of the user to wear appropriate safety gear. Adequate eye protection is a must. THIS IS NOT A TOY!

Equipment

Part#
Part Description
List Price
Part#PE16CB
Part DescriptionPlane Easy; 16" Foam Planer with Carbide Blades [Pneumatic Motor)
List Price$1,635.00
Part#PE16WB
Part DescriptionPlane Easy; 16" Foam Planer with Wire Brush [Pneumatic Motor]
List Price$1,200.00
Part#PE16CB4
Part DescriptionPlane Easy; 16" Foam Planer with Carbide Blades with 4-foot Handles [Pneumatic Motor)
List Price$1,970.00
Part#PE24CB
Part DescriptionPlane Easy; 24" Foam Planer with Carbide Blades [Pneumatic Motor]
List Price$1,870.00
Part#PE24WB
Part Description24" Plane Easy Foam Planer with Wire Brush
List Price$1,250.00

Parts

Part#
Part Description
List Price
Part#PE16CBFL
Part Name16" Carbide Blade Replacement Filler [interchangeable with brushes]
List Price$690.00
Part#PE16WBFL
Part Name16" Plane Easy Wire Brush Filler
List Price$340.00
Part#PE24CBFL
Part Name24" Plane Easy Carbide Blade Filler [interchangeable with brushes]
List Price$980.00
Part#PE24WBFL
Part NamePlane Easy 24" Wire Brush Filler
List Price$410.00
Part#PEMTR-A
Part NamePlane Easy Replacement Motor
List Price$135.00

Downloads

Name
Download
NameFoam Planer Manual
DownloadDownload
