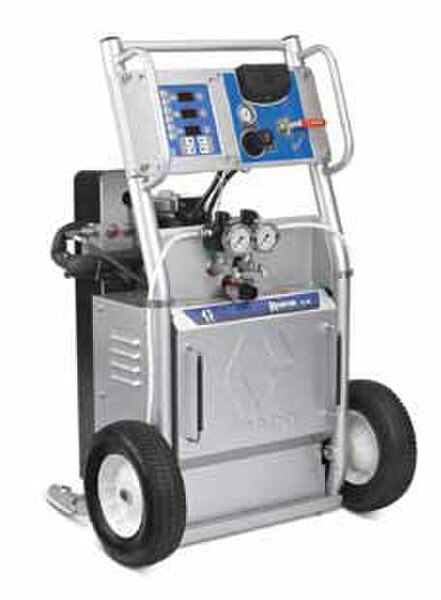

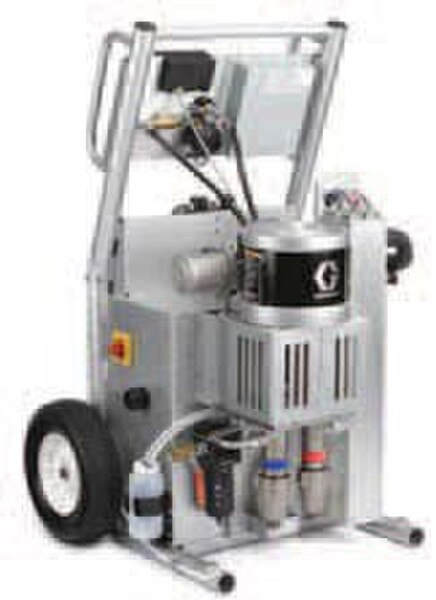

Graco A-25 Reactor

Top quality and performance for spraying foam insulation

Graco-engineered solution provides tested and proven reliability
Three independent heat zones easily handle different chemical viscosities
Maintains consistent output pressure for uniform spray pattern
Easy to operate and maintain

The A-25 reactor maintains steady temperature set-points, even when you're spraying at maximum flow rates, resulting in better quality foam. Temperatures of competitive model fluctuated as flow rates increased.

DataTrak Control (optional)

Resettable counter tracks material usage

Three Heat Zones

Three independent heat zones - ISO, Resin and Hose Heat
Provide accurate heat control for reliable spraying to handle different chemical viscosities
Digital temperature controls

Recirculation Manifold

A quick, easy way to balance system pressures

NXT Air Motor

Low air consumption for increased efficiency
Muffler provides low operating noise levels
Air valve provides smooth and rapid changeover

Hybrid Heater

Provides better temperature control

Quick Knockdown Lower Pumps

For easy dis-assembly and maintenance

ISO Pump Lube System

Prevents isocyanate crystallization on the pump seal and shaft

Equipment

Part#

Part Description

List Price

Part#262572

Part DescriptionReactor A-25 (A Series) Air-Driven Proportioner (BARE), Without DataTrak and Wheels, output 25 lb/min, max working pressure 2,000 psi. 6kW heater

List Price$17,560.00

Request a quote

Part#262614

Part DescriptionReactor A-25 (A Series) Air-Driven Proportioner (BARE), With DataTrak and Wheels, output 25 lb/min, max working pressure 2,000 psi. 6.0 kW heater

List Price$18,730.00

Request a quote

Part#AP2572

Part DescriptionReactor A-25 (A Series) Air-Driven Proportioner Package, Without DataTrak and Wheels, output 25 lb/min, max working pressure 2,000 psi. 6kW heater, 50' heated spray hose, 10' heated whip hose, and Fusion AP Gun

List Price$23,290.00

Request a quote

Part#AP2614

Part DescriptionReactor A-25 (A Series) Air-Driven Proportioner Package, With DataTrak and Wheels, output 25 lb/min, max working pressure 2,000 psi., 6 kW heater, 50' heated spray hose, 10' heated whip hose, and Fusion AP Gun

List Price$24,460.00

Request a quote

Part#CS2572

Part DescriptionReactor A-25 (A Series) Air-Driven Proportioner Package, Without DataTrak and Wheels, output 25 lb/min, max working pressure 2,000 psi. 6 kW heater, 50' heated spray hose, 10' heated whip hose, and Fusion CS Gun

List Price$23,560.00

Request a quote

Part#CS2614

Part DescriptionReactor A-25 (A Series) Air-Driven Proportioner Package, With DataTrak and Wheels, output 25 lb/min, max working pressure 2,000 psi. 6kW heater, 50' heated spray hose, 10' heated whip hose, and Fusion CS Gun

List Price$24,730.00

Request a quote

Part#P22572

Part DescriptionReactor A-25 (A Series) Air-Driven Proportioner Package, Without DataTrak and Wheels, output 25 lb/min, max working pressure 2,000 psi. 6kW heater, 50' heated spray hose, 10' heated whip hose, and Probler P2 Gun

List Price$24,010.00

Request a quote

Part#P22614

Part DescriptionReactor A-25 (A Series) Air-Driven Proportioner Package, With DataTrak and Wheels, output 25 lb/min, max working pressure 2,000 psi. 6kW heater, 50' heated spray hose, 10' heated whip hose, and Probler P2 Gun

List Price$25,180.00

Request a quote

Parts

Part#

Part Description

List Price

Part#206996

Part NameThroat Seal Liquid..1 gallon

List Price$151.00

Part#110637

Part NameSCREW - MACH,PNHD

List Price$7.05

Part#111600

Part NamePIN GROOVED

List Price$3.15

Part#111799

Part NameSCREW - CAP,HEX HD

List Price$5.45

Part#111841

Part NameWASHER - PLAIN 5/8

List Price$3.00

Part#112125

Part NameCap Tube

List Price$3.00

Part#112324

Part NameScrew mach, PNHD, 4-40X.25

List Price$4.60

Part#113641

Part NameGauge, Pressure , 3000 psi, Fluid, SST

List Price$235.00

Part#114110

Part NameFITTING - ELBOW,MALE,SWIVEL

List Price$21.80

Part#114114

Part NameFITTING - ELBOW,MALE,SWIVEL

List Price$19.20

Part#114151

Part NameSwivel Male Elbow Fitting

List Price$8.95

Part#114182

Part NameSCREW - MACH,HEX FLANGE HD

List Price$4.05

Part#114183

Part NameNUT - HEX,FLANGE,SERRATED

List Price$4.80

Part#114228

Part NameFilter Element

List Price$52.50

Part#114269

Part NameGROMMET - RUBBER

List Price$5.01

Part#114362

Part NameVALVE - BALL,AIR

List Price$32.90

Part#114958

Part NameSTRAP - TIE

List Price$0.80

Part#116702

Part NameADAPTER - STR. 1/4NPT X7/8-14JIC

List Price$66.50

Part#116704

Part NameAdapter STR.; 1/4 x 9/16-18

List Price$53.25

Part#116746

Part NameFitting, barbed

List Price$7.70

Part#117484

Part NameSensor, Thermocouple

List Price$282.00

Part#117523

Part NameNUT CAP

List Price$1.60

Part#117623

Part NameNut Cap

List Price$3.30

Part#117666

Part NameTERMINAL - GROUND

List Price$18.40

Part#117682

Part NameBushing Strain Relief

List Price$40.00

Part#117833

Part NameADAPTER - STRT.,3/8NPT X 3/4-16JIC

List Price$5.20

Part#118459

Part NameFitting; Union Swivel, Straight, 3/4" NPT(f) Swivel x 3/4" NPT (M) For feed hose from transfer pump

List Price$24.20

Part#119789

Part NameFITTING - ELBOW,STRT,45 DEG,1/4NPT

List Price$7.40

Part#119998

Part NameAdapter - 1/2 -20 JIC x 1/4 NPT

List Price$4.30

Part#120336

Part NamePacking O-Ring

List Price$11.30

Part#120485

Part NameBRIDGE - PLUG-IN,JUMPER

List Price$3.35

Part#120490

Part NameCOVER - END

List Price$2.10

Part#120491

Part NameBLOCK - TERMINAL

List Price$4.70

Part#120553

Part NameNUT - CENTER LOCK,5/8-18

List Price$1.75

Part#120570

Part NameBLOCK - TERMINAL

List Price$11.30

Part#120573

Part NameBRIDGE - PLUG-IN,JUMPER

List Price$9.25

Part#121309

Part NameFITTING,CONN,3/4SAE X 1/2 JIC

List Price$6.35

Part#123970

Part NameSWITCH - DISCONNECT,40A (Replaced #120571)

List Price$153.50

Part#123971

Part NameDisconnect Knob (Replaced #120572)

List Price$57.75

Part#123972

Part NameFOURTH POLE SWITCH (Replaced #120580)

List Price$80.25

Part#124132

Part NameO-ring

List Price$2.70

Part#158491

Part NameFitting; Nipple 1/2" NPT

List Price$27.50

Part#15B135

Part NameMixer Immersion Heater

List Price$44.80

Part#15B137

Part NameSwitch Over Temp

List Price$62.00

Part#15B380

Part NameCable Hose, Control

List Price$477.00

Part#15B565

Part NameBall Valve

List Price$18.80

Part#15C851

Part NameRebuilt Kit (E-XP2 Displacement Pump)

List Price$323.00

Part#15G280

Part NameLabel Warning

List Price$0.00

Part#15H187

Part NameWIRE - JUMPER W/QUICK DISC.

List Price$30.60

Part#15H304

Part NameFitting Plug, HLLW Hex. 9/16

List Price$11.90

Part#15H305

Part NameFITTING - PLUG HLLW HEX 1-3/16

List Price$18.90

Part#15H306

Part NameAdapter Thermocouple

List Price$82.75

Part#15J132

Part NameLINK - CONNECTING

List Price$68.50

Part#160327

Part NameAdapter. displacement pump inlet

List Price$94.75

Part#162449

Part NameNIPPLE; Pipe Nipple 1/2 (m) x1/4 (m)..

List Price$30.70

Part#162453

Part NameFitting; Nipple 1/4

List Price$22.90

Part#167002

Part NameInsulator Heat

List Price$13.20

Part#16A112

Part NameHEATER, IMMERSION

List Price$442.00

Part#180199

Part NameReplacement Filter; 20 Mesh Screen, Y-Strainer

List Price$49.50

Part#183169

Part NameRetaining Spring

List Price$4.85

Part#183210

Part NamePin

List Price$23.80

Part#186494

Part NameCLIP - SPRING

List Price$31.60

Part#187625

Part NameDrain Valve Handle

List Price$7.75

Part#189285

Part NameCaution Label

List Price$0.00

Part#191824

Part NameWASHER - SPACE

List Price$32.20

Part#193031

Part NameNut retaining

List Price$63.00

Part#205447

Part NameFitting; Coupling Hose 1/4 F

List Price$12.10

Part#206994

Part NameTSL Throat Seal Liquid..1/2 Pint (8 oz)

List Price$14.70

Part#206995

Part NameThroat Seal Liquid..1 quart

List Price$45.10

Part#224807

Part NameBASE VALVE

List Price$6.15

Part#234366

Part NameKIT - ACCY,INLET PAIR

List Price$510.00

Part#239914

Part NameValve, Recirc/spray..Includes: seat and gasket

List Price$110.50

Part#246421

Part NameREPAIR, PUMP, XP 2

List Price$323.00

Part#246477

Part NameReturn Tube Kit

List Price$450.00

Part#246478

Part NamePump Memb. Repair Kit

List Price$292.50

Part#246483

Part NameKit; Air Supply Hoses, Transfer Pumps & Spray Gun

List Price$641.00

Part#246963

Part NameKit, wet-cup, EXP2

List Price$209.00

Part#246978

Part NameReactor Circulation Kit for circulation of materials from Proportioner to supply drums. This allows rapid preheating of material by circulating through the Proportioner heaters. Also this prevents wasting material when balancing pressures.

List Price$1,210.00

Part#246995

Part NameReservoir; Bottle Assy, Complete, Reactor

List Price$181.50

Part#247520

Part NameBurst Disc Kit

List Price$203.50

Part#247801

Part NameCable, Communication

List Price$224.00

Part#247827

Part NameHousing, Control Module

List Price$1,110.00

Part#247828

Part NameHousing, Heater Module

List Price$1,110.00

Part#248208

Part NameHOSE, air; 1/4 npsm(FBE); 5/16 in...(8 mm) ID; 4 ft (1.22 m); buna-N

List Price$53.00

Part#24B563

Part NameDataTrak Kit

List Price$901.00

Part#255022

Part Name3P, 65A Contactor Relay Kit

List Price$278.50

Part#255023

Part Name5 x 20MM, 5 AMP Fuse

List Price$60.50

Part#255026

Part NameKIT,CKT BRKR,1 POLE,50A,C CRV

List Price$133.50

Part#255043

Part NameKIT,HOLDER,FUSE,TER BLK,5X20MM

List Price$100.50

Part#255046

Part NameKIT,BLOCK,TERMINAL GROUND

List Price$113.00

Part#255050

Part NameKIT,CIRCUIT BRKR,25A,2P

List Price$177.50

Part#255082

Part NameKIT - FILTER,80 MESH,2 PACK

List Price$46.90

Part#255083

Part Name80 Mesh Filter Kit, 10pk

List Price$210.50

Part#261669

Part NameFluid Temperature Sensor (FTS)

List Price$955.00

Part#261821

Part NamePower-Lock Splice Kit; 6 AWG, Connector for Heated Hose

List Price$66.50

Part#262695

Part NameWheel Kit

List Price$400.00

Part#C20487

Part NameFitting: Nipple, Hex, 3/4" x 3/4"

List Price$23.20

Part#100139

Part NamePlug, pipe; 1/8-27 npt

List Price$6.30

Part#100451

Part NameCOUPLING

List Price$42.90

Part#101078

Part NameY Strainer; (20 Mesh), 3/4" NPT

List Price$128.50

Part#101242

Part NameRING - RETAINING,EXT.

List Price$6.05

Part#105676

Part NameSCREW

List Price$4.80

Part#106084

Part NameSCREW - MACH,PNH

List Price$5.60

Part#107128

Part NameFITTING - TEE, SERVICE

List Price$46.20

Part#108296

Part NameScrew Mach, Hex Washer HD

List Price$4.80

Part#108638

Part NameFITTING - PIPE,TEE

List Price$43.30

Part#109077

Part NameBall Valve, 3/4" NPT (FBE)

List Price$156.00

Downloads

Name

Download

NameA-25 Brochure

DownloadDownload

NameA-25 Operation Manual

DownloadDownload

NameA-25 Repair-Parts Manual

DownloadDownload

NameDisplacement Pump Repair - Parts Manual

DownloadDownload

NameDataTrak Installation - Parts Manual

DownloadDownload

NameNXT AIR Motor Instructions - Parts Manual

DownloadDownload
