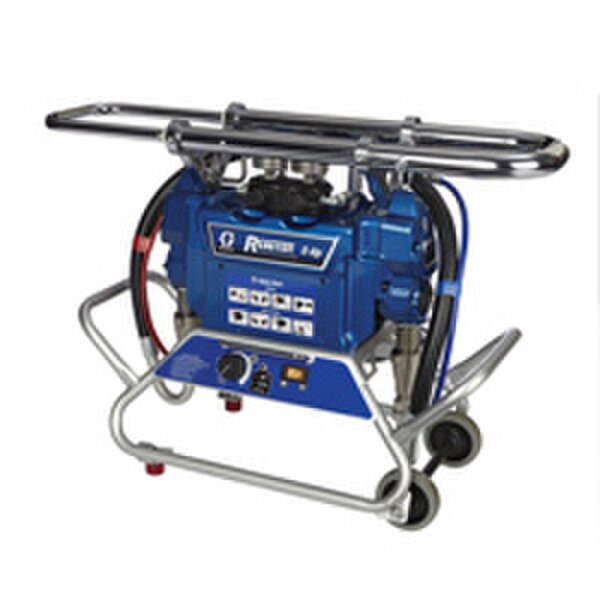

Graco E-8p Reactor

The E-8p Reactor is the solution

The E-8p Reactor Portable Plural-Component Sprayer is among the first portable, professional foam insulation systems that produces foam for air-sealing existing homes. In fact, it's the first system that's designed specifically for new no-heat polyurethane foam formulations. It produces a proven air-seal solution that's in demand by homeowners who want energy-efficient homes.

Expand your business

Become more competitive in today's market with equipment designed for the remodeling or small foam job. Whether you're expanding your existing insulation application opportunities or just starting your business, the E-8p Reactor provides a quick return on investment. As a touch-up system, the E-8p Reactor frees up larger rigs for medium and large jobs while enabling you to finish the job afford-ably.

Portable, lightweight and easy to move.

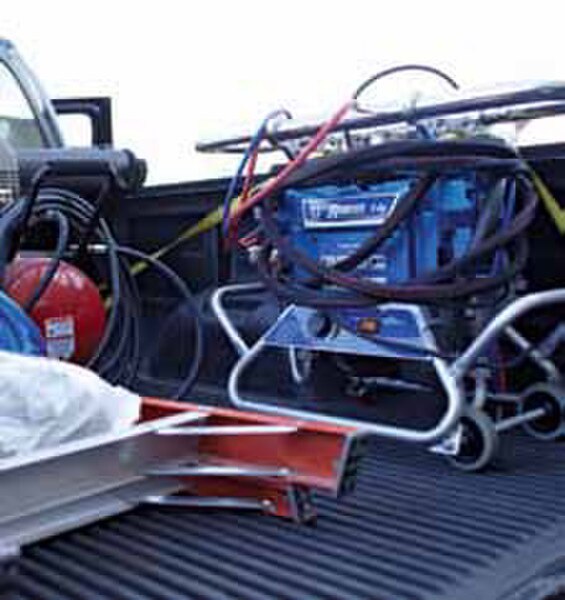

Haul in in your van, pickup or car. Take it anywhere - through narrow doorways or halls, even up narrow stairways of older homes. The E-8p Reactor's compact design easily fits in tight areas so you can spray foam with ease. Since no heaters are required, the E-8p Reactor is small, lightweight and compact.

Designed for existing home environments

The compact design is unobtrusive. Simply plug it into a standard residential outlet. Material is drawn from handy no-spill five-gallon pails. No feed pumps needed.

A quick return on your investment

Many small projects that are ordinarily completed with froth kits can now be accomplished more economically with the E-8p Reactor and no-heat polyurethane foams. In fact, froth kits can cost up to three times the cost of five-gallon pails of no-heat foam polyurethane materials.

Benefits:

  • Haul it in your van or pickup truck
  • Easy to move up and down stairs
  • Telescoping handle and wheels makes it easy to maneuver at the job site
  • Plugs into a standard residential outlet (120 VAC, 15 amp)
  • Weighs just about 96 pounds (44 kg)
  • Easy to read pressure gauges ensure you're spraying on-ratio and delivering high-quality foam
  • An economical alternative to froth kits

Applications:
  • Rim joists in existing homes
  • Attics in existing homes - as an air barrier under blown-in insulation
  • Alternative to froth kits
  • Backup system for spray rig owners
  • Touch-up projects in tight areas
  • HVAC spray sealing of approved duct work
  • Roofing applications - patching, applying select roofing adhesives

Equipment

Part#
Part Description
List Price
Part#259082
Part DescriptionReactor E-8p (E Series) Portable Proportioner BARE, output 12 lb/min, 2000 psi max working pressure, unheated ambient, 120 Volt
List Price$12,420.00
Part#259083
Part DescriptionReactor E-8p (E Series) Portable Proportioner BARE, output 12 lb/min, 2000 max working pressure, unheated ambient, 240 Volt
List Price$12,420.00
Part#AP9082
Part DescriptionReactor E-8p (E Series) Portable Proportioner PKG, output 12 lb/min, 2000 psi max working pressure, unheated ambient, 50 ft non-heated hose, Fusion AP Gun, (120V, dedicated 15 A circuit)
List Price$16,420.00
Part#CS9082
Part DescriptionReactor E-8p (E Series) Portable Proportioner PKG, output 12 lb/min, 2000 psi max working pressure, unheated ambient, 50 ft non-heated hose, Fusion Clear Shot Gun, (120V, dedicated 15 A circuit)
List Price$16,680.00
Part#P29082
Part DescriptionReactor E-8p (E Series) Portable Proportioner PKG, output 12 lb/min, 2000 psi max working pressure, unheated ambient, 50 ft non-heated hose, Probler P2 Gun, (120V, dedicated 15 A circuit)
List Price$17,130.00
Part#24R151
Part DescriptionUnheated Reactor E-8p Flooring Proportioner PKG, 1:1 ratio, includes 2K Manual Dispense Gun (24R021), and 35' - 1/4" non-heated hose without airline (24R823), (120V, dedicated 15 A circuit),
List Price$15,030.00
Part#24R154
Part DescriptionUnheated Reactor E-8p Flooring Proportioner PKG, 1:1 ratio, includes 2K Manual Dispense Gun (24R021), and 35' - 1/4" non-heated hose without airline (24R823), (240 VAC, dedicated 15 A circuit),
List Price$15,030.00

Parts

Part No.
Part Name
Price
Quantity
Part No.111743
Part NameWASHER - FLAT
Price $5.95
Quantity
Part No.111763
Part NameFITTING - ELBOW, 1/4NPT
Price $9.65
Quantity
Part No.112144
Part NameSCREW - MACH,PAN HD
Price $5.00
Quantity
Part No.112154
Part NamePIN - STRAIGHT,SLOTTED
Price $5.00
Quantity
Part No.112319
Part NamePACKING - O-RING
Price $28.70
Quantity
Part No.113575
Part NamePACKING - O-RING
Price $12.90
Quantity
Part No.113641
Part NameGauge, Pressure , 3000 psi, Fluid, SST
Price $267.00
Quantity
Part No.115099
Part NameWASHER - GARDEN HOSE
Price $0.30
Quantity
Part No.115492
Part NameScrew Machine slot hex
Price $5.00
Quantity
Part No.115711
Part NameTAPE - FOAM 1/2\ WIDE"
Price $10.70
Quantity
Part No.115836
Part NameGuard Finger
Price $5.30
Quantity
Part No.116073
Part NameWASHER THRUST,1ST STAGE
Price $5.00
Quantity
Part No.116074
Part NameWasher
Price $5.00
Quantity
Part No.116079
Part NameThrust Bearing
Price $5.00
Quantity
Part No.116504
Part NameFITTING - TEE,RUN (Old Gusmer #6465)
Price $20.40
Quantity
Part No.116704
Part NameAdapter STR.; 1/4 x 9/16-18
Price $68.00
Quantity
Part No.116773
Part NamePlug Connector, 3.81 MM 10 POS
Price $60.75
Quantity
Part No.117493
Part NameScrew, machin, hex washer
Price $5.00
Quantity
Part No.117559
Part NameO-Ring
Price $5.65
Quantity
Part No.2007117
Part NameSwitch, cycle counter with cable
Price $91.50
Quantity
Part No.119897
Part NameFITTING - BULKHEAD,CABLE,.250
Price $23.50
Quantity
Part No.119930
Part NameDIODE - LIGHT-EMITTING
Price $23.50
Quantity
Part No.119998
Part NameAdapter - 1/2 -20 JIC x 1/4 NPT
Price $4.95
Quantity
Part No.120454
Part NameWasher, flat
Price $5.00
Quantity
Part No.121573
Part NameBumper, urethane, 3/8-16, 80-90 dur
Price $88.50
Quantity
Part No.125212
Part NameFitting, -3 JIC x 1/8 npt (m)
Price $28.40
Quantity
Part No.125321
Part NameCable, sst lanyard, 10 in.
Price $21.30
Quantity
Part No.155541
Part NameFitting; Elbow, swivel, 90 Deg., 1/4 npt(m) x 1/4 npsm(f)
Price $58.25
Quantity
Part No.156823
Part NameFitting; Union, swivel; 1/4 npt (m x f)
Price $9.30
Quantity
Part No.156971
Part NameFitting; Nipple 1/4
Price $5.00
Quantity
Part No.15B254
Part NameCover Front, Graco
Price $9.55
Quantity
Part No.15B589
Part NameCOVER - PUMP ROD
Price $5.00
Quantity
Part No.15C866
Part NameWire, jumper
Price $8.50
Quantity
Part No.24K993
Part NameMANIFOLD - RECIRCULATION
Price $249.00
Quantity
Part No.15G053
Part NamePLATE - DETENT,DISPLAY
Price $49.40
Quantity
Part No.15G230
Part NameCABLE - HARNESS,POWER
Price $38.00
Quantity
Part No.15G292
Part NameMANIFOLD - PRESSURE TRANSDUCER
Price $72.75
Quantity
Part No.15G342
Part NameHose Air, 35 FT. , 1/4" ID
Price $191.50
Quantity
Part No.15G458
Part NameCABLE - FAN,46\ W/PLUG and BRD CONN"
Price $39.20
Quantity
Part No.15M314
Part NameScrew, cap
Price $2.40
Quantity
Part No.16G943
Part NameBracket, lift handle
Price $444.00
Quantity
Part No.16G945
Part NameTube, lift handle, fixed
Price $209.50
Quantity
Part No.16H202
Part NameLabel, branding
Price $14.80
Quantity
Part No.16H352
Part NameSpacer, Axle, E-8p
Price $68.50
Quantity
Part No.16H530
Part NameTube, fluid, E-8p
Price $64.00
Quantity
Part No.16H543
Part NameHandle, pull
Price $132.50
Quantity
Part No.16H546
Part NamePin, mounting, lift handle
Price $69.75
Quantity
Part No.16H547
Part NamePin, alignment, lift handle
Price $32.80
Quantity
Part No.16H569
Part NameLabel, warning
Price $17.60
Quantity
Part No.16H615
Part NameTube, recirculation
Price $68.50
Quantity
Part No.16H809
Part NameTray, containment
Price $202.50
Quantity
Part No.16H810
Part NameBracket, containment
Price $97.00
Quantity
Part No.16H811
Part NameKnob, containment
Price $182.00
Quantity
Part No.16H888
Part NameGrommet, 7/8in. ID
Price $10.70
Quantity
Part No.16H902
Part NameTag, informational
Price $12.60
Quantity
Part No.16J414
Part NameLabel, control
Price $60.25
Quantity
Part No.16J415
Part NameLabel, quick start
Price $28.40
Quantity
Part No.180131
Part NameBEARING THRUST..weight each
Price $9.40
Quantity
Part No.187625
Part NameDrain Valve Handle
Price $8.25
Quantity
Part No.195150
Part NameNUT - JAM, PUMP
Price $7.95
Quantity
Part No.196762
Part NamePIN - STRAIGHT
Price $6.70
Quantity
Part No.224807
Part NameBASE VALVE
Price $6.55
Quantity
Part No.239914
Part NameValve, Recirc/spray..Includes: seat and gasket
Price $117.50
Quantity
Part No.246386
Part NameSuction Hose Kit..REPLACEMENT FOR PART # 246010
Price $158.00
Quantity
Part No.248231
Part NameKIT REPAIR,CRANKSHAFT..
Price $173.00
Quantity
Part No.24L002
Part NamePOTENTIOMETR - ADJUSTMENT PRESSURE
Price $109.00
Quantity
Part No.249508
Part NameHOSE, fluid (component A), moisture guard; 1/4 in. ID; no. 5 JIC (MxF); 35 ft
Price $251.00
Quantity
Part No.249509
Part NameB SIDE HOSE CPLD,1/4"X35',NYL
Price $251.00
Quantity
Part No.249629
Part NameHose coupling 1/4" x 48"
Price $58.25
Quantity
Part No.249630
Part NameResin Hose Cpld 1/4"x48"
Price $58.25
Quantity
Part No.249633
Part Name3 Hose Bundle, Non-heated, Uninsulated, 2000 psi, 1/4" x 35 ft.
Price $817.00
Quantity
Part No.249854
Part NameCover drive housing B side
Price $238.50
Quantity
Part No.249855
Part NameRepair Kit displacement pump:..Includes, seals, balls, bearings, intake valve seat
Price $250.50
Quantity
Part No.24E355
Part NameE10 120V 15A Electric Motor Kit
Price $2,030.00
Quantity
Part No.24G886
Part NameKit, Board, Circuit (E10 115V)
Price $918.00
Quantity
Part No.24J140
Part NameBracket, recirculation manifold, E-8p
Price $191.00
Quantity
Part No.24J141
Part NameCover, electronics
Price $66.25
Quantity
Part No.24J147
Part NameManifold, recirculation, E-8p
Price $1,245.00
Quantity
Part No.24J151
Part NameCover, shroud, front
Price $342.00
Quantity
Part No.24J152
Part NameCover, shroud, back
Price $342.00
Quantity
Part No.24J154
Part NamePin, w/ lanyard
Price $22.50
Quantity
Part No.24J155
Part NameAdapter, spout, pour, assembly A
Price $360.00
Quantity
Part No.24J244
Part NameHandle, lift, sliding
Price $650.00
Quantity
Part No.24J766
Part NameAdapter, spout, pour, assembly B
Price $363.00
Quantity
Part No.24K982
Part NameMAGNET - DISC,.375 DIA,.100 THK (Replaced #119875)
Price $33.40
Quantity
Part No.24K984
Part NameDesiccant Dryer, Mini In-Line
Price $137.50
Quantity
Part No.24K984
Part NameDesiccant Dryer, Mini In-Line
Price $137.50
Quantity
Part No.24K999
Part NameKit, Transducer (Replacing 246123)
Price $326.00
Quantity
Part No.261866
Part NameKit, Washers, Tie Rod Bolts
Price $128.50
Quantity
Part No.277364
Part NameKit, Gasket, Seat, Valve
Price $9.60
Quantity
Part No.287053
Part NameKIT REPAIR,CONN ROD ..
Price $95.75
Quantity
Part No.287055
Part NameKIT REPAIR,DRIVE HSNG ..
Price $180.50
Quantity
Part No.287655
Part NameProportioner 120V, E10
Price $5,380.00
Quantity
Part No.556765
Part NameFitting, #6 JIC 1/4PM
Price $16.80
Quantity
Part No.15E022
Part NameSeat
Price $14.70
Quantity
Part No.244242
Part NameKIT REPAIR,COMB. GEAR ..287057 Superseded by 244242
Price $147.00
Quantity
Part No.102040
Part NameNUT - LOCK
Price $0.60
Quantity
Part No.103473
Part NameWire Tie
Price $35.60
Quantity
Part No.104859
Part NameSCREW - TAPPING PNHD
Price $6.90
Quantity
Part No.107156
Part NameSCREW - MACH,PAN HD
Price $7.65
Quantity
Part No.107434
Part NameBEARING THRUST
Price $5.50
Quantity
Part No.108296
Part NameScrew Mach, Hex Washer HD
Price $5.50
Quantity
Part No.109032
Part NameSCREW - MACH,PNH
Price $7.10
Quantity
Part No.110037
Part NameSCREW - MACH,PNH
Price $35.60
Quantity
Part No.111600
Part NamePIN GROOVED
Price $5.00
Quantity
Part No.100030
Part Name1/4M x 1/8F Bushing
Price $27.80
Quantity
