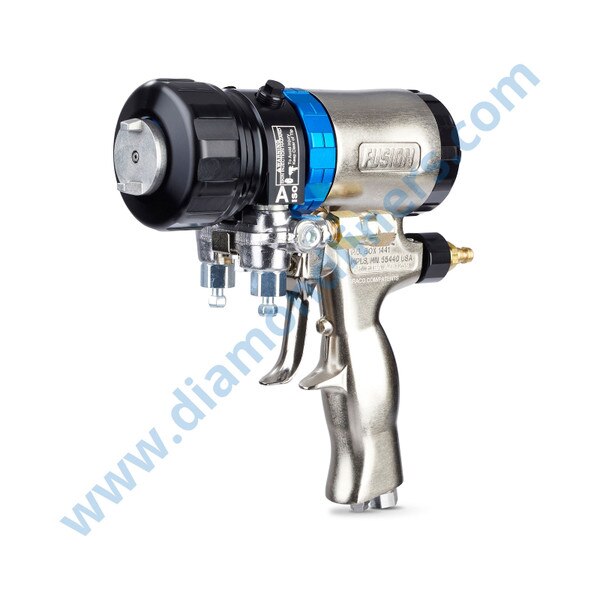

Graco Fusion ProConnect (PC) Spray Gun

Details

A perfect rebuild in seconds is now possible with the revolutionary Fusion PC (ProConnect) gun, featuring an all-in-one cartridge head that replaces multiple individual parts of the fluid section with a single component. Simply replacing the cartridge completely eliminates the need for a time-consuming traditional rebuild, keeping you spraying and minimizing costly downtime.

Unlike any other spray foam gun available

A single cartridge replaces the entire fluid section in seconds
Built on top of the time-tested Fusion AP platform, the PC gun sprays exactly like a Fusion AP
Integrated check valves for cross-over containment
13 parts are replaced by a single ProConnect cartridge
Eliminates the need to purchase fluid section o-rings
Spare ProConnect cartridges can replace your back-up guns
Retrofit Kit available to convert existing Fusion AP guns

Part#

Part Description

List Price

Part#25P587

Part DescriptionFUSION PROCONNECT GUN WITH ROUND 00 MIX CHAMBER AND 0.029 IN (0.74 MM) ORIFICE SIZE

List Price$3,870.00

Part#25R084

Part DescriptionFUSION PROCONNECT GUN WITH ROUND 00-01 MIX CHAMBER AND 0.037 IN (0.94 MM) ORIFICE SIZE

List Price$3,870.00

Part#25P588

Part DescriptionFUSION PROCONNECT GUN WITH ROUND 01 MIX CHAMBER AND 0.042 IN (1.06 MM) ORIFICE SIZE

List Price$3,870.00

Part#25P590

Part DescriptionFUSION PROCONNECT GUN WITH ROUND 01-02 MIX CHAMBER AND 0.047 IN (1.2 MM) ORIFICE SIZE

List Price$3,870.00

Part#25P589

Part DescriptionFUSION PROCONNECT GUN WITH ROUND 02 MIX CHAMBER AND 0.052 IN (1.3 MM) ORIFICE SIZE

List Price$3,870.00

Part#25R085

Part DescriptionFUSION PROCONNECT GUN WITH ROUND 03 MIX CHAMBER AND 0.060 IN (1.5 MM) ORIFICE SIZE

List Price$3,870.00

Part#25R086

Part DescriptionFUSION PROCONNECT GUN WITH FLAT 00 MIX CHAMBER AND 0.029 IN (0.74 MM) ORIFICE SIZE

List Price$3,870.00

Part#26B230

Part DescriptionFUSION PROCONNECT GUN WITH FLAT 00 MIX CHAMBER AND FT0624 TIP

List Price$3,870.00

Part#25T481

Part DescriptionFUSION PROCONNECT GUN WITH WIDE 2222 MIX CHAMBER AND 4 HOSE MANIFOLD

List Price$4,390.00

Part#25R087

Part DescriptionFUSION PROCONNECT RETROFIT KIT WITH ROUND 00-01 MIX CHAMBER AND 0.037 IN (0.94 MM) ORIFICE SIZE

List Price$1,615.00

Parts

Part No.

Part Name

Price

Quantity

Part No.18C115

Part NameFusion PC gun o-ring kit

Price $138.00

Quantity

Part No.15K365

Part NameMachined Air Purge Handle

Price $1,195.00

Quantity

Part No.15B208

Part NamePlug, air valve

Price $39.00

Quantity

Part No.248137

Part NameAir Cap Teflon O-Ring, (package of 6)

Price $43.80

Quantity

Part No.15B206

Part NameLock, safety

Price $53.50

Quantity

Part No.15B204

Part NameCap, cylinder

Price $155.50

Quantity

Part No.192272

Part NamePin Pivot

Price $29.40

Quantity

Part No.15B223

Part NameValve, cleanoff air

Price $30.70

Quantity

Part No.15B210

Part NameAir Cap, round pattern, for Fusion Air-Purge Gun

Price $107.50

Quantity

Part No.246012

Part NameFluid Manifold Coupling Block..Includes fluid manifold, shutoff valves and JIC swivels

Price $551.00

Quantity

Part No.246356

Part NameManifold Fluid Shutoff Valve

Price $81.75

Quantity

Part No.100139

Part NamePlug, pipe; 1/8-27 npt

Price $7.95

Quantity

Part No.15B221

Part NameCoupling Block Bolt; 5/16-24

Price $27.90

Quantity

Part No.117634

Part NameSwivel, B side; 1/8 npt(m) x #6 JIC(f)

Price $16.80

Quantity

Part No.117635

Part NameSwivel, A Side; 1/8 npt(m) x #5 JIC(f)

Price $16.80

Quantity

Part No.15B993

Part NameSpring, Ring, Lock

Price $50.50

Quantity

Part No.15B209

Part NameTrigger

Price $63.25

Quantity

Part No.248136

Part NameBack Cylinder Cap, O-Ring; (package of 6)

Price $109.50

Quantity

Part No.15B203

Part NamePiston, Fusion Air Purge

Price $178.00

Quantity

Part No.248135

Part NamePiston O-Ring; (package of 6)

Price $113.00

Quantity

Part No.248134

Part NameO-Ring, piston shaft, (package of 6)

Price $47.30

Quantity

Part No.248131

Part NameO-Ring; fluid housing; (package of 6)

Price $51.00

Quantity

Part No.15C480

Part NameWasher, wave

Price $23.40

Quantity

Part No.248132

Part NameFluid housing o-ring, pack of 6

Price $101.50

Quantity

Part No.119626

Part NamePlug Breather

Price $20.70

Quantity

Part No.248131

Part NameO-Ring; fluid housing; (package of 6)

Price $51.00

Quantity

Part No.246354

Part NameO-Ring, clean off air valve; (package of 6)

Price $25.20

Quantity

Part No.100846

Part NameFitting, grease

Price $8.05

Quantity

Part No.246731

Part NameA-side (ISO), check valve assembly,

Price $125.50

Quantity

Part No.248064

Part NameSafety Stop Assembly; Fusion AP Gun

Price $313.00

Quantity

Part No.18C115

Part NameFusion PC gun o-ring kit

Price $138.00

Quantity

Part No.246352

Part NameB-side (Poly), check valve assembly

Price $125.50

Quantity

Part No.15B214

Part NameScrew; 5/16-18 x 1/2 in., check valve

Price $19.70

Quantity

Part No.257420

Part NameKit, Check Ball (Package of 10)

Price $42.00

Quantity

Part No.117490

Part NameSpring, check valve

Price $4.30

Quantity

Part No.248133

Part NameO-Ring, check valve face: (package of 6)

Price $79.25

Quantity

Part No.248129

Part NameO-ring, check valve housing: (Package of 6)

Price $41.10

Quantity

Part No.116550

Part NameRetaining Ring

Price $11.60

Quantity

Part No.15B205

Part NamePiston Stop Lock

Price $24.10

Quantity

Part No.203953

Part NameScrew; 10-24 x 38 in.

Price $5.00

Quantity

Part No.114070

Part NameSpring Compression

Price $20.60

Quantity

Part No.117485

Part NameCompression Spring

Price $7.00

Quantity

Part No.15B202

Part NameSpool, valve

Price $30.70

Quantity

Part No.117509

Part Name1/4 npt Male Quick Disconnect

Price $16.80

Quantity

Part No.222385

Part NameCard, warning

Price $0.00

Quantity

Part No.15B689

Part NameCover, grease fitting

Price $26.90

Quantity

Part No.117792

Part Name3oz. Grease Gun

Price $73.25

Quantity

Part No.117510

Part NameCoupler, air line, 1/4 NPT Male Quick Disconnect

Price $54.00

Quantity

Part No.15B772

Part NameAir Hose 18" ' Fusion Gun

Price $41.30

Quantity

Part No.15B565

Part NameBall Valve

Price $20.80

Quantity

Part No.172479

Part NameTAG INSTRUCTION

Price $0.00

Quantity

Part No.15D235

Part NameSign, instruction

Price $0.00

Quantity

Part No.117773

Part NameFusion Quik-Shot 3 oz. Grease Cartridge

Price $11.50

Quantity

Part No.248279

Part NameCase of 10 - 4 oz. Tubes, High adhesion, water resistant, lithium-based lubricant

Price $173.50

Quantity

Part No.15B801

Part NameAir Cap, Flat Pattern, for Fusion Air-Purge Gun

Price $65.75

Quantity

Part No.246360

Part NameO-Ring; PTFE, flat tip models only..(package of 3)

Price $25.60

Quantity

Part No.117661

Part NamePin Vice W/ 2 Double end Collates

Price $61.75

Quantity

Part No.112307

Part NameElbow

Price $26.00

Quantity

Part No.15B817

Part NameGun Flush Manifold Block

Price $68.75

Quantity

Part No.117642

Part Name5/16" Spintite Wrench

Price $35.80

Quantity

Part No.118575

Part NameTool Screwdriver, 1/8 blade

Price $8.85

Quantity

Part No.PC42RD

Part NameFusion ProConnect Round 01 Mix Chamber with 0.042 in (1.1 mm) Orifice Size

Price $295.00

Quantity

Part No.FT0424

Part NameLow Flow, Pattern Control Disc .."Fan Tip" (8" to 10" wide pattern)

Price $165.50

Quantity

Part No.FT0438

Part NameMedium Flow, Pattern Control Disc "Fan Tip" (8" to 10" pattern)

Price $165.50

Quantity

Part No.FT0624

Part NameLow Flow, Pattern Control Disc.."Fan Tip" (12" to 14" pattern)

Price $165.50

Quantity

Part No.FT0638

Part NameMedium Flow, Pattern Control Disc.."Fan Tip" (12" to 14" pattern)

Price $165.50

Quantity

Part No.FT0838

Part NameMedium Flow, Pattern Control Disc.."Fan Tip" (16" to 18" pattern)

Price $165.50

Quantity

Part No.FT0848

Part NameHigh Flow, Pattern Control Disc.."Fan Tip" (16" to 18" pattern)

Price $165.50

Quantity

Part No.248969

Part NameFusion Gun AP Handle Cleanout Drill Kit; Includes 5 extra long drill bits to clean air passages.

Price $107.00

Quantity

Part No.19Y301

Part NameFusion Proconnect cartridge - 3 pack

Price $668.00

Quantity
