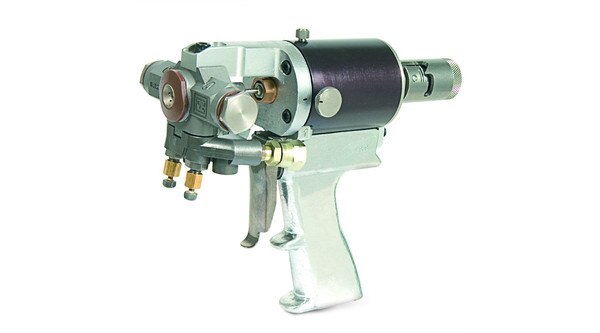

Graco/Gusmer GX-7 400 Spray Gun

The Gusmer GX-7 400 plural component spray gun is recommended for spraying polyurea, polyurethane, hybrid coatings and is a mechanically self-cleaning spray gun which eliminates costly solvent flushing. The Graco GX-7 400 spray gun is one of the industries choice guns when it comes to applying two-component fast set systems. Excellent for the low to medium volume output of coatings. The Graco GX-7 400 coating gun is world renowned and proven itself with many chemical companies as they list it as an approved gun for applying their coatings, look for it on their material data sheets.


The Graco GX-7 400 spray gun allows the applicator to spray or pour in a variety of different output volumes. The GX-7 400 spray gun also comes as an automatic version for automated applications.


After the acquisition of Gusmer by Graco the GX-7, GX-7 400 and GX-7 DI have all been put into one manual.


Features and Benefits:

  • Graco GX-7, GX-7 DI and GX-7 400 mechanical purge spray guns are known for dependable performance and reliability
  • Great mixing and pattern control with its unique internal impingement mixing design
  • Designed to handle the toughest job-site conditions
  • Solvent free: Graco GX-7 400 features a mechanically self-cleaning valving rod assembly that purges all mixed material from the mixing module at the end of each shot, eliminating costly and environmentally harmful, solvent flushing procedures.
  • Mixing module: Internal impingement mixing module that is precision manufactured for prolonged service life. Several different styles are available which, when used in combination with a pattern control disc, provide optimum mixing and pattern development.
  • Pattern Control Disc: Interchangeable module and disc combinations permit various outputs in round or fan spray and pour patterns to provide more efficient mixing and pattern development
  • Valving Rod Forward Stop: Permits forward positioning of the valving rod to maximize the mechanical self-cleaning process.
  • Filters: Screw-in design incorporates metal-to-gasket sealing surface plus internal check valves. The filters are available in several different mesh sizes and can be easily removed, cleaned and serviced.


Applications:

  • Roofing, concrete and residential insulation
  • Tank and pipe coatings
  • Water and waste-water treatment
  • Waterproofing
  • Spray on Bed-liners


Materials:

  • Polyurea coatings
  • Hybrid coatings
  • Polyurethane coatings
  • Adhesives

Equipment

Part#
Part Description
List Price
Part#295540
Part DescriptionGX-7-400 Spray Gun
List Price$4,740.00

Parts

Part#
Part Description
List Price
Part#103337
Part NamePacking O-Ring
List Price$6.60
Part#106245
Part Name8-32 x .625 Screw
List Price$4.30
Part#106555
Part NamePacking O-Ring
List Price$5.30
Part#117634
Part NameSwivel, B side; 1/8 npt(m) x #6 JIC(f)
List Price$15.70
Part#117635
Part NameSwivel, A Side; 1/8 npt(m) x #5 JIC(f)
List Price$15.70
Part#15C161
Part NameUltimate Gun Cleaning Kit
List Price$161.50
Part#15C162
Part NameHVLP gun cleaning kit
List Price$122.50
Part#24K733
Part NameHANDLE - CYLINDER (Replaced #295799)
List Price$4,430.00
Part#295384
Part NameGun Block
List Price$1,210.00
Part#295405
Part NameNeedle Valve Packing
List Price$4.30
Part#295433
Part NameCoupling Block Mounting Screw
List Price$52.75
Part#295596
Part NameCoupler Plug
List Price$7.80
Part#295662
Part NamePipe Plug
List Price$5.60
Part#295663
Part NameCylinder Front Stop
List Price$158.50
Part#295664
Part NameAir Piston Asy
List Price$367.00
Part#295665
Part NamePipe Nipple
List Price$90.50
Part#295666
Part NameSCREW, CLAMP, STOP
List Price$40.10
Part#295667
Part NamePellet
List Price$13.10
Part#295668
Part NameSpring
List Price$15.30
Part#295669
Part NameSocket Head Cap Screw (OLD Gusmer # 16111-19)
List Price$25.80
Part#295671
Part NameTrigger Screw
List Price$9.50
Part#295673
Part NameBASE, BLOCK, GUN
List Price$392.00
Part#295674
Part NameGasket
List Price$4.30
Part#295675
Part NameCYLINDER - AIR
List Price$450.00
Part#295676
Part NameSpring
List Price$11.30
Part#295677
Part NameVALVE - NEEDLE,AIR
List Price$106.00
Part#295678
Part NameCYLINDER - CAP,END
List Price$454.00
Part#295681
Part NameO-Ring..(Old Gusmer # 16111-7)
List Price$4.30
Part#295683
Part NameO-Ring..(Old Gusmer # 16111-9)
List Price$4.30
Part#295684
Part NameSocket head cap screw
List Price$4.30
Part#295685
Part NameO-Ring
List Price$4.30
Part#295686
Part NameLiner Valve
List Price$109.50
Part#295687
Part NameSpool Valve
List Price$84.25
Part#295688
Part NameNut Retainer Valve
List Price$102.00
Part#295689
Part NameSeat Spring
List Price$37.10
Part#295690
Part NameClamp Cylinder
List Price$63.50
Part#295692
Part NameSpray Gun Trigger
List Price$53.00
Part#295693
Part NamePipe Plug
List Price$4.10
Part#295695
Part Name4-40 x 3/8 Screw
List Price$4.30
Part#295706
Part NameO-Ring
List Price$4.30
Part#295708
Part NameSpacer
List Price$51.25
Part#295771
Part NameTwo Position stop
List Price$492.00
Part#296128
Part NameCoupling Block Gasket (Package of 2) (Old Gusmer #3101-1-pkg)
List Price$17.30
Part#25B318
Part NameCoupling Block
List Price$309.00
Part#296693
Part NameScreen Screw Seal (Package of 2) (OLD Gusmer #16131A-2) (OLD GRACO #295798)
List Price$28.60
Part#296694
Part NameKit Tip, Round, 100 PCD
List Price$189.00
Part#296695
Part NameKIT TIP, ROUND..2 LONG X 4 HIGH (INCHES)
List Price$189.00
Part#296696
Part NameKIT - TIP,ROUND,5 PK
List Price$851.00
Part#296697
Part NameKIT - TIP,ROUND
List Price$189.00
Part#296708
Part Name#40 Round Pattern Control Disc (PCD) (4" Dia.)
List Price$217.50
Part#296709
Part NameKIT - TIP,ROUND
List Price$189.00
Part#296710
Part Name#70 Round Pattern Control Disc (PCD) (8" Dia.)
List Price$189.00
Part#296711
Part Name#80 Round Pattern Control Disc (PCD)
List Price$189.00
Part#296712
Part Name#90 Round Pattern Control Disc (PCD) (10" Dia.)
List Price$189.00
Part#296714
Part NameKIT - TIP,ROUND
List Price$851.00
Part#296717
Part NamePattern Control Disc..5/pkg...OLD Gusmer # 16282-55-A
List Price$851.00
Part#296718
Part NameKit Tip, Round, (Package of 5)
List Price$851.00
Part#296719
Part Name#80 Round Pattern Control Disc (PCD) (Package of 5)
List Price$851.00
Part#296720
Part NameKIT TIP, ROUND, PKG/5
List Price$851.00
Part#296722
Part NameCheck Valve Assembly (Package of 10) (Old Gusmer #16104)
List Price$558.00
Part#296724
Part Name80 Mesh Screen..PKG/50..OLD Gumser # 16130-80
List Price$118.00
Part#296792
Part NameScreen, 80 Mesh (Package of 10)
List Price$43.20
Part#296828
Part NameRear Packing Retainer..OLD Gusmer # 16155-1-125
List Price$115.00
Part#296829
Part NameRear Seal Packing (Package of 5)..(Old Gusmer #16155-2-125)
List Price$69.50
Part#296830
Part NameRear Seal Retainer..OLD Gusmer # 16155-3-125
List Price$91.00
Part#296833
Part NameA-gun block screen screw assembly (includes 6,9,10,12)
List Price$156.00
Part#296834
Part NameR-gun black screen screw assembly (includes 6,9,10,12)
List Price$153.00
Part#296837
Part NameAir Cap (Old Gusmer #17182)
List Price$86.25
Part#296852
Part NameRound Tip Kit
List Price$189.00
Part#296853
Part NameFan Pattern Control Disc (PCD) Output 3.5 (lbs/min) Pattern 16" x 3" (Old Gusmer #17292-212)
List Price$189.00
Part#296854
Part NameFan Pattern Control Disc (PCD) Output 3.5 (lbs/min) Pattern 16" x 3"..Package of 5.. (Old Gusmer #17292-212-doz)
List Price$851.00
Part#296855
Part NameFan Pattern Control Disc (PCD) Output 8.0 (lbs/min) Pattern 16" x 3" (Old Gusmer # 17292-213)..
List Price$189.00
Part#296856
Part NameKIT - FAN,TIP,30X016X080 5PK
List Price$851.00
Part#296857
Part NameKIT - FAN,TIP,30X020X100
List Price$189.00
Part#296858
Part NameRound Pattern Control Disc (PCD) (Old Gusmer # 17292-40)
List Price$239.00
Part#296859
Part Name451 Fan Module; ISO-.018, Polyol-.018 (Old Gusmer #17190-451-PKG)
List Price$103.00
Part#296860
Part Name451 Fan Module; ISO-.018, Polyol-.018 (Package of 12) (Old Gusmer #17190-451-DOZ)
List Price$1,035.00
Part#296862
Part NameKIT - HANDLE,GUN
List Price$1,440.00
Part#296877
Part NameKIT - TIP, ROUND,140
List Price$189.00
Part#296884
Part NameKIT - CLEANOUT TOOL, MODULE
List Price$1,035.00
Part#296885
Part Name402 Round Module; ISO-.018, Polyol-.018 (Old Gusmer 17190-402-PKG)
List Price$103.00
Part#296887
Part NameKIT FAN,MODULE
List Price$1,035.00
Part#296888
Part Name452 Fan Module; ISO-.020, Polyol-.020
List Price$103.00
Part#296890
Part Name453 Fan Module; ISO-.025, Polyol-.0225 ..(Package of 12) ..(Old Gusmer #17190-453-DOZ)
List Price$1,035.00
Part#296891
Part Name453 Fan Module; ISO-.025, Polyol-.0225 (OLD GUSMER #17190-453)
List Price$103.00
Part#296892
Part NameKIT - TIP,FAN
List Price$362.00
Part#296895
Part NameAir Cylinder Rebuild Kit (OLD Gusmer # 22113A-1)
List Price$71.00
Part#296897
Part NameTrigger Valve Rebuild Kit Fits all GX-7, GX-8 and Gap Spray Guns
List Price$58.75
Part#296898
Part NameKIT - PEEK,BLANK,.018
List Price$837.00
Part#296899
Part NameKIT - PEEK,BLANK,.028
List Price$821.00
Part#296970
Part NameManual Valve Assembly
List Price$81.00
Part#296979
Part NameCoupling Block Mounting Screw (Package of 2)
List Price$104.50
Part#C20003
Part NameSCREW - CAP, SOCKET HEAD
List Price$10.10
Part#208536
Part NameCoupler; Quick, Air 1/4 (F)
List Price$21.80
Part#16K136
Part NameROD, VALVING..REPLACING PARTS 296692,295682,256388
List Price$88.25
Part#296916
Part Name#2 Round Module
List Price$127.50
