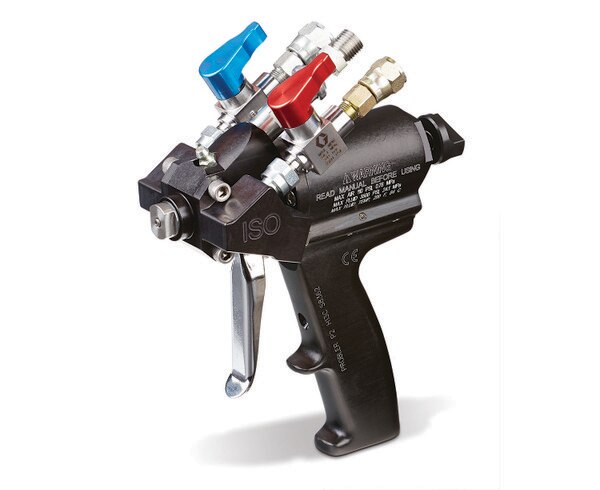

Graco Probler P2 Spray Gun

Technology for fast set foam and coatings

Patent-Pending Endurance Chamber

Recognized by the industry for its superior performance, the P2 gun's light, easy to handle design lets you spray and maneuver easily - even in difficult spraying positions. At the end of the day, maintenance is easy. No cleaning small air passages with tiny drill bits. The Graco P2 has check valves that separate the liquid portion and dry side of the gun.
  • Responsive trigger action - double piston design provides more than 300 lbs (136 kg) of triggering force
  • The mix chamber insert can be replaced without replacing the entire chamber
  • Anti-crossover design virtually eliminates possibility of material entering the air piston


The Graco Probler P2 Benefits:

The Probler P2 has lower parts consumption than any other gun available in the market today! Here is a list of some of the features that set it apart from any other spray gun

  • Less cleaning - up to 5 times longer operation time without drilling out the mix chamber
  • Better spray pattern - improved round bore and finish of the chamber interior results in a better material flow path and spray pattern
  • Lower cost maintenance - the chamber insert can be replaced without replacing the entire chamber - the most expensive part of the gun
  • Piston isolation - eliminates cross-overs or material in the air piston
  • Simplified design - fewer parts, easier to service and more work time


Patented High Velocity Piston

This is a double piston design that gives more trigger force from a smaller piston diameter.


Benefits to the end user:

  • Smallest and lightest production volume gun in the industry
  • Over 300 lbs triggering force
  • No sticking chamber
  • Less maintenance
  • Consistent trigger operation and air purge
  • Less downtime


Patent-Pending Piston Isolation Design

This special porting in the Graco Probler P2 virtually eliminates the possibility of material entering the air piston of the gun.


The industry standard in plural component spray guns...the GlasCraft Probler P2



Equipment

Part#
Part Description
List Price
Part#GCP2R0
Part DescriptionProbler P2 Air Purge Spray Gun Round Pattern GC2500 (00) Mix Chamber (.035 Orfice) GC2510 Nozzle
List Price$3,380.00
Part#GCP2R1
Part DescriptionProbler P2 Air Purge Spray Gun Round Pattern GC2501 (01) Mix Chamber (.042 Orfice) GC2511 Nozzle
List Price$3,380.00
Part#GCP2R2
Part DescriptionProbler P2 Air Purge Spray Gun Round Pattern GC2502 (02) Mix Chamber (.052 Orfice) GC2512 Nozzle
List Price$3,380.00
Part#GCP2R3
Part DescriptionProbler P2 Air Purge Spray Gun Round Pattern GC2503 (03) Mix Chamber (.059 Orfice) GC2513 Nozzle
List Price$3,380.00
Part#GCP2R4
Part DescriptionProbler P2 Air Purge Spray Gun Round Pattern GC2504 (04) Mix Chamber (.067 Orfice) GC2514 Nozzle
List Price$3,380.00
Part#GCP2R5
Part DescriptionProbler P2 Air Purge Spray Gun Round Pattern GC2505 (05) Mix Chamber (.086 Orfice) GC2515 Nozzle
List Price$3,380.00
Part#GCP2RA
Part DescriptionProbler P2 Air Purge Spray Gun Round Pattern GC250A (000) Mix Chamber (.022 Orfice) GC251A Nozzle
List Price$3,380.00

Parts

Part#
Part Description
List Price
Part#256459
Part NameKit, A Side (ISO) Ball Valve
List Price$189.50
Part#256460
Part NameKit, B Side (RES) Ball Valve
List Price$189.50
Part#106555
Part NamePacking O-Ring
List Price$3.75
Part#107563
Part NamePacking O-Ring
List Price$11.10
Part#108833
Part NamePacking O-Ring
List Price$5.15
Part#110241
Part NamePacking, O-Ring (OLD Glas Craft 7554-53)
List Price$4.65
Part#110242
Part NamePacking O-Ring
List Price$4.65
Part#111316
Part NamePACKING O-RING
List Price$26.20
Part#111516
Part NamePACKING - O-RING
List Price$30.70
Part#115719
Part NamePacking, O-Ring, Viton
List Price$2.15
Part#117610
Part NameO-RING
List Price$8.10
Part#117634
Part NameSwivel, B side; 1/8 npt(m) x #6 JIC(f)
List Price$12.10
Part#117635
Part NameSwivel, A Side; 1/8 npt(m) x #5 JIC(f)
List Price$12.10
Part#118594
Part NameO-Ring
List Price$7.10
Part#168518
Part NamePacking O-Ring..(OLD 7554-03)
List Price$5.60
Part#16N599
Part NameISO Side Block..(Old Glas-Craft #23955-00)
List Price$202.00
Part#16N600
Part NamePOLY Side Block..(Old Glas-Craft # 23956-00)
List Price$202.00
Part#248130
Part NameO-Ring, Cartridge Body; (package of 6)
List Price$58.75
Part#258761
Part NameP2 Piston Lock Kit
List Price$121.50
Part#296980
Part NameGun Service Kit, 1 QT., Graco/Gusmer
List Price$702.00
Part#296981
Part NameGun Service Kit, 3 Gallon, Graco/Gusmer
List Price$1,135.00
Part#C20207
Part NamePacking O-Ring
List Price$13.50
Part#C20988
Part NamePacking, O-Ring..(old 1123B-4)
List Price$6.75
Part#GC0069
Part NameDrills .071
List Price$9.00
Part#GC0080
Part Name.035 Drill Bit
List Price$5.30
Part#GC0083
Part NameTOOL. DRILL, HI-SPEED,.049
List Price$5.30
Part#GC0086
Part Name3/16 Ball Driver Tool
List Price$22.70
Part#GC0087
Part Name5/32 Ball Driver Tool
List Price$23.10
Part#GC0126
Part NameAir Switch Tube Valve
List Price$217.00
Part#GC0127
Part NameAir Switch Spool Valve
List Price$97.00
Part#GC0128
Part NameAir Assembly Switch
List Price$344.00
Part#GC0143
Part Name3/8 THD x 1/2 FLPT Set Screw
List Price$17.80
Part#GC0257
Part NameCad. Fl. Nozzle Nut
List Price$40.60
Part#GC0259
Part Name1/4 Dia, 302 SST Ball..(OLD Glas-Craft 18383-02)
List Price$1.60
Part#GC0275
Part NameFITTING HOSE
List Price$12.30
Part#GC0331
Part NameFitting, Plug
List Price$7.00
Part#GC0490
Part NameFITTING ELBW,SW,1/8NPTM X 1/4TUBE (Replaced GlasCraft 20735-01)
List Price$33.90
Part#GC0502
Part NameFITTING FTG.CONNECTOR
List Price$37.10
Part#GC0712
Part NameFITTING ELBOW,45,1/8NPTM X 1/8NPT
List Price$19.60
Part#GC1842
Part NameVALVE BALL,GUN
List Price$44.20
Part#GC1880
Part NameHEAD P2-ELITE
List Price$1,215.00
Part#GC1881
Part NameBLOCK SIDE,POLY,P2 ELITE
List Price$424.00
Part#GC1882
Part NameBLOCK SIDE,ISO,P2 ELITE
List Price$424.00
Part#GC1883
Part NameSpacer Piston
List Price$14.40
Part#GC1885
Part NameADAPTER SWIVL,45DEG,1/4T X 1/8NPT
List Price$54.75
Part#GC1892
Part NameKit, Conversion, P2 to a P2 Elite
List Price$1,470.00
Part#GC1898
Part NameProbler 2, 1-3/8" Air Piston
List Price$173.00
Part#GC1899
Part NamePiston Air 1-1/2..(OLD Glas-Craft 23952-00)
List Price$173.00
Part#GC1900
Part NameProbler P2 Cylinder Spacer
List Price$65.00
Part#GC1901
Part NameAir Valve Insert
List Price$45.60
Part#GC1904
Part NameFilter, Valve, Check..(Old Glas-Craft #23957-00)
List Price$129.50
Part#GC1914
Part NameTip Front, Air Cap, Probler P2
List Price$59.25
Part#GC1916
Part NameProbler 2 Head..(OLD Glas Craft 23963-00)
List Price$709.00
Part#GC1918
Part NamePiston Trigger, Probler 2
List Price$224.00
Part#GC1919
Part NameProbler P2 Rear Cap
List Price$73.50
Part#GC1920
Part NamePLUG PLUG,TRIGGER,PROBLER 2
List Price$56.50
Part#GC1921
Part NameInternal Retaining Ring
List Price$4.40
Part#GC1923
Part NameSpring, .30 OD X 3/8 Long
List Price$4.90
Part#GC1931
Part NameO-RING O-RING,VITON EXTREME,2-00
List Price$12.20
Part#GC1932
Part NameO-RING O-RING,VITON EXTREME,2-10
List Price$16.70
Part#GC1933
Part NameO-RING O-RING,VITON EXTREME,2-21
List Price$42.50
Part#GC1934
Part NameO-RING O-RING,VITON EXTREME,2-02
List Price$28.80
Part#GC1935
Part NameO-RING O-RING,VITON EXTREME,2-10
List Price$40.50
Part#GC1936
Part NameO-RING O-RING,VITON EXTREME,2-21
List Price$46.80
Part#GC1937
Part NameProbler 2 Standard Repair Kit
List Price$148.00
Part#GC1938
Part NameKit, Spray, Flat, Probler P2
List Price$98.00
Part#GC1946
Part NameSide Seal Kit
List Price$69.75
Part#GC1947
Part NameP2 Gun, 00-03, Hardware Kit
List Price$260.00
Part#GC1948
Part NameP2 hardware kit AA
List Price$260.00
Part#GC1949
Part NameP2 Hardware gun kit 04-05
List Price$260.00
Part#GC1950
Part NamePremium O-Ring Repair Kit
List Price$348.00
Part#GC1952
Part NameProbler P2 Jet Stream Nozzle (.059 ID)
List Price$121.50
Part#GC1953
Part NameProbler P2 Jet Stream Nozzle (.070 ID)
List Price$121.50
Part#GC1954
Part NameCap, Pour, P2
List Price$86.50
Part#GC1955
Part NameAdapter, Mixer, Static, P, LP/HP
List Price$169.00
Part#GC2056
Part NameViton O-Ring
List Price$1.90
Part#GC2057
Part NameViton O-Ring
List Price$3.85
Part#GC2058
Part NameViton O-Ring
List Price$4.70
Part#GC2059
Part NameViton O-Ring
List Price$1.80
Part#GC2060
Part NameViton O-Ring
List Price$2.70
Part#GC2079
Part NameSCREW,SET,HALF,DOG #8
List Price$3.70
Part#GC2081
Part NameScrew
List Price$1.30
Part#GC2187
Part Name190-32 x .375 SS SHDC Screw
List Price$3.75
Part#GC2192
Part NameScrew
List Price$5.80
Part#GC2196
Part NameFitting, Pipe, Nipple, Hex, 1/8x1/8NPT
List Price$7.00
Part#GC2212
Part NameFTG, Connector, 37D, 1/8NPTMX3/8T
List Price$9.60
Part#GC2237
Part Name1/4 x 10-24 STL Shoulder Screw
List Price$15.70
Part#GC2241
Part NameScrew
List Price$0.70
Part#GC2243
Part NameScrew, Set, CPPT, .190-32X .625..(Old Glas-Craft # 9936-20F)
List Price$0.90
Part#GC2248
Part NameScrew
List Price$2.15
Part#GC2334
Part NameNipple
List Price$22.10
Part#GC2335
Part NameFluid Nozzle Seal
List Price$8.80
Part#GC2340
Part NameProbler Trigger
List Price$86.25
Part#GC2341
Part NameCompression Spring, .240 OD
List Price$4.40
Part#GC2394
Part NameFITTING FTG,ADAPTER,SWIVEL,1/4\NP" (Replaced GlasCraft 23825-00)
List Price$40.10
Part#GC2494
Part NameKit, Seat Side Seal, P2
List Price$17.00
Part#GC2498
Part NameSeal Side, Probler P2
List Price$21.90
Part#GC2499
Part NameHandle
List Price$1,765.00
Part#GC2500
Part NameP2, Round 00 Mix Chamber Kit
List Price$233.00
Part#GC2501
Part NameP2, Round 01 Mix Chamber Kit
List Price$278.00
Part#GC2502
Part NameP2, Round 02 Mix Chamber Kit
List Price$278.00
Part#GC2503
Part NameP2, Round 03 Mix Chamber Kit
List Price$278.00
Part#GC2504
Part NameP2, Round 04 Mix Chamber Kit
List Price$278.00
Part#GC2505
Part NameP2, Round 05 Mix Chamber Kit
List Price$278.00
Part#GC250A
Part NameKIT, MIX CHAMBER, P2 RND, AA
List Price$278.00
Part#GC2510
Part NameP2, Insert, Mix Chamber 00, Kit
List Price$36.20
Part#GC2511
Part NameP2, Insert, Mix Chamber 01, Kit
List Price$36.20
Part#GC2512
Part NameP2, Insert, Mix Chamber 02,
List Price$36.20
Part#GC2513
Part NameP2, Insert, Mix Chamber 03, Kit
List Price$36.20
Part#GC2514
Part NameP2, Insert, Mix Chamber 04, Kit
List Price$36.20
Part#GC2515
Part NameP2, Insert, Mix Chamber 05, Kit
List Price$36.20
Part#GC251A
Part NameKIT, INSERT, MIX CHAMBER, AA
List Price$36.20
Part#GC2573
Part NameKit, Spray Tip, TC, 1525, Fan Code 215
List Price$129.50
Part#GC2574
Part NameKit, Spray Tip, TC, 1540, Fan Code 415
List Price$129.50
Part#GC2575
Part NameKIT, SPRAY TIP, TC, 1825, Fan Code 217
List Price$129.50
Part#GC2576
Part NameKit, Spray Tip, TC, 1840, Fan Code 417
List Price$129.50
Part#GC2577
Part NameKit, Spray Tip, TC, 1850, Fan Code 517
List Price$129.50
Part#GC2578
Part NameKit, Spray Tip, TC, 2125, Fan Code 221
List Price$129.50
Part#GC2579
Part NameKIT, SPRAY TIP, TC, 2140, Fan Code 421
List Price$129.50
Part#GC2580
Part NameKit, Spray Tip, TC, 2150, Fan Code 521
List Price$129.50
Part#GC2582
Part NameKit, Spray Tic, TC, 2325, Fan Code 223
List Price$129.50
Part#GC2583
Part NameKit, Spray Tip, TC, 2340, Fan Code 423
List Price$129.50
Part#GC2584
Part NameKit, Spray Tip, TC 2350, fan code 523
List Price$129.50
Part#GC2585
Part NameKit, Spray Tip, TC, 2365, fan code 723
List Price$129.50
Part#GC2586
Part NameKIT, SPRAY TIP, TC, 2640, Fan Code 427
List Price$129.50
Part#GC2587
Part NameKit, Spray Tip, TC, 2650, fan code 527
List Price$129.50
Part#GC2589
Part NameKit, Spray Tip, TC, 3125, Fan Code 231
List Price$129.50
Part#GC2590
Part NameKit Spray Tip, TC, 3140, Fan Code 431
List Price$129.50
Part#GC2591
Part NameKIT, SPRAY TIP, TC, 3150, fan code 531
List Price$129.50
Part#GC2592
Part NameKit, Spray Tip, TC, 3625, Fan Code 235
List Price$129.50
Part#GC2593
Part NameKit, Spray Tip, TC, 3640, fan code 435
List Price$129.50
Part#GC2594
Part NameKIT, SPRAY TIP, TC, 3650, fan code 535
List Price$129.50
Part#GC2595
Part NameKit, Spray Tip, TC, 3840, Fan Code 439
List Price$129.50
Part#GC2596
Part NameKit, Spray Tip, TC, 3850, fan code 539
List Price$129.50
Part#GC2597
Part NameKit, Spray Tip, TC, 4350, Fan Code 543
List Price$129.50
Part#GC2599
Part NameKIT,SPRAY TIP,TC,5225
List Price$129.50
Part#GC2600
Part NameKit, Spray Tip, TC, 5240, Fan Code 451
List Price$129.50
Part#GC2601
Part NameKIT,SPRAY TIP,TC,5250, Fan Code 551
List Price$129.50
Part#GC2602
Part NameKIT,SPRAY TIP,TC,5265
List Price$129.50
Part#GC2604
Part NameKit, Spray Tip, TC, 6240, Fan Code 461
List Price$129.50
Part#GC2605
Part NameKIT,SPRAY TIP, TC, 6250, Fan Code 561
List Price$129.50
Part#GC2606
Part NameKIT,SPRAY TIP, TC, 6265, Fan Code 661
List Price$129.50
Part#GC2607
Part NameKIT, SPRAY TIP, TC, 7240, Fan Code 471
List Price$129.50
Part#GC2608
Part NameKIT,SPRAY TIP,TC,7250
List Price$129.50
Part#117661
Part NamePin Vice W/Collates
List Price$41.80
Part#100846
Part NameFitting, grease REPLACES PART # GC1198
List Price$5.20
Part#24K287
Part NameHOSE WHIP
List Price$277.50
Part#111450
Part NamePacking O-Ring
List Price$26.90
Part#113137
Part NamePACKING O-RING
List Price$21.60
Part#117517
Part NameO-Ring, Extreme, Tip Front (248131 pkg of 6)
List Price$9.60
Part#117724
Part NameO-Ring
List Price$18.30
Part#GC0480
Part NameELEMENT,MIXING,SPIRAL 1/4 (each)
List Price$14.00
Part#24R737
Part NameKIT,P2 PORT CLEANOUT
List Price$74.75
Part#GC2495
Part NameKit, Seal, Housing, P2
List Price$85.00
Part#109115
Part NameO-Ring Packing (#248137 pkg of 6)
List Price$8.15

Downloads

Name
Download
NameProbler P2 User Manual
DownloadDownload
NameHoses, Guns & Accessories Brochure
DownloadDownload
NameCleanout Tool Kit
DownloadDownload

Videos
