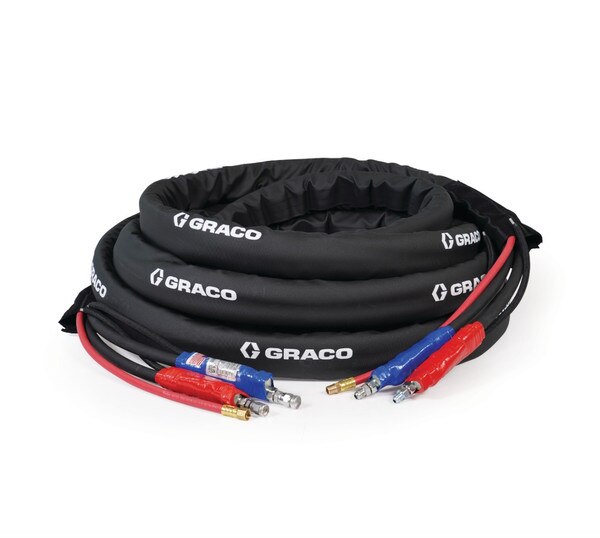

Graco Reactor 2 Internally Heated Hoses

Graco's new Internal Heated Hose has the smallest, lightest weight connections in the industry



The robust, compact design allows the heating element to enter/exit the fluid stream at each hose joint without adding significant size or weight.



Designed for speed and reliability

  • Compatible with Reactor 2 proportioners, no new hardware required
  • New hoses available in 50ft and 100ft length: Minimize fluid and electrical connections
  • Optimized for Resistance Control Mode. Eliminates issues associated with temperature cables and sensors
  • Heating Wire: Heating wire is located in hose ID for direct material contact and quick heating
  • Wire Seal Nut/Ferrule/O-ring/Bushing: These components allow the heating wire to transition out of fluid and provide a proper seal
  • Crimp Connector: Connects the heating wire to the multi-strand wire that allows the hose power to connect between hose joints

Equipment

Part#
Part Description
List Price
Part#26D095
Part DescriptionREACTOR 2 50 FT INTERNAL HEATED HOSE WITH 3/8 IN INSIDE DIAMETER, 2000 PSI, XTREME-WRAP
List Price$3,430.00
Part#26D098
Part DescriptionREACTOR 2 50 FT INTERNAL HEATED HOSE WITH 3/8 IN INSIDE DIAMETER, 2000 PSI, RTD SENSOR, XTREME-WRAP
List Price$3,630.00
Part#26D096
Part DescriptionREACTOR 2 100 FT INTERNAL HEATED HOSE WITH 3/8 IN INSIDE DIAMETER, 2000 PSI, XTREME-WRAP
List Price$6,200.00
Part#26D099
Part DescriptionREACTOR 2 100 FT INTERNAL HEATED HOSE WITH 3/8 IN INSIDE DIAMETER, 2000 PSI, RTD SENSOR, XTREME-WRAP
List Price$6,550.00
Part#25P770
Part Description10 FT (3 M) LP 2000 PSI (138 BAR) IMPROVED FLEX WHIP HOSE WITH 1/4 IN (6.3 MM) INSIDE DIAMETER
List Price$1,125.00
Part#25P771
Part DescriptionHOSE,WHIP,1/4ID,2000PSI,20FT
List Price$1,640.00
Part#R2I170
Part DescriptionREACTOR 2 INTERNAL HEATED HOSE PACKAGE, 170 FT
List Price$10,710.00
Part#R2I220
Part DescriptionREACTOR 2 INTERNAL HEATED HOSE PACKAGE, 220 FT
List Price$13,340.00
Part#R2I270
Part DescriptionREACTOR 2 INTERNAL HEATED HOSE PACKAGE, 270 FT
List Price$16,600.00
Part#R2I320
Part DescriptionREACTOR 2 INTERNAL HEATED HOSE PACKAGE, 320 FT
List Price$19,230.00
Part#R2I370
Part DescriptionREACTOR 2 INTERNAL HEATED HOSE PACKAGE, 370 FT
List Price$22,490.00
Part#R2I420
Part DescriptionREACTOR 2 INTERNAL HEATED HOSE PACKAGE, 420 FT
List Price$25,120.00

Parts

No Parts for this item.

Downloads

Name
Download
NameGraco Reactor 2 Internally Heated Hose Brochure
DownloadDownload
