Graco's Multi-Tiered Ratio Assurance System

1. Mechanically Linked Pumps
2. Positive Displacement Piston Pumps
3. Outlet Pressure Monitoring
4. Flow Meters
5. Inlet Pressure Monitoring

Single-Point Variables

Any issues that may cause off-ratio foam to be sprayed are called Single-Point Variables.

Since no one detection method is best to detect all possible issues, it is important to have a robust, multi-tiered ratio assurance system that incorporates both pressure and flow meter monitoring.

Single-Point Variable Categories

• Air in the fluid stream
• Feed pump too small
• Poor material feed to the proportioner
• Proportioner pump issues
• Fluid leaks
• Fluid restriction in heated hose or spray gun

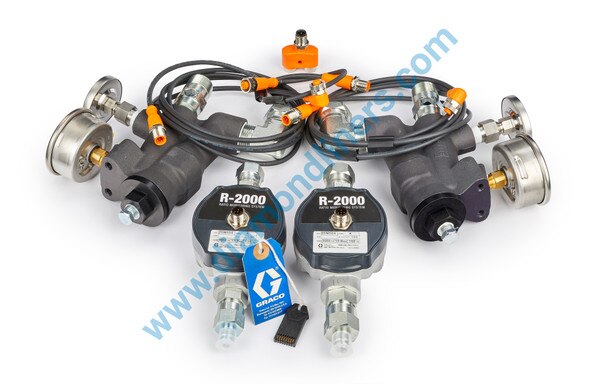

• Flow meter now standard on Reactor 2 Elite models: E-30, H-30, H-40, H-50, E-XP2, H-XP2 and H-XP3
• Kits available to update existing Reactor 2 models
• Ratio reports available using the Reactor App
• Electric Reactors now include 'Reactor Smart Control'
