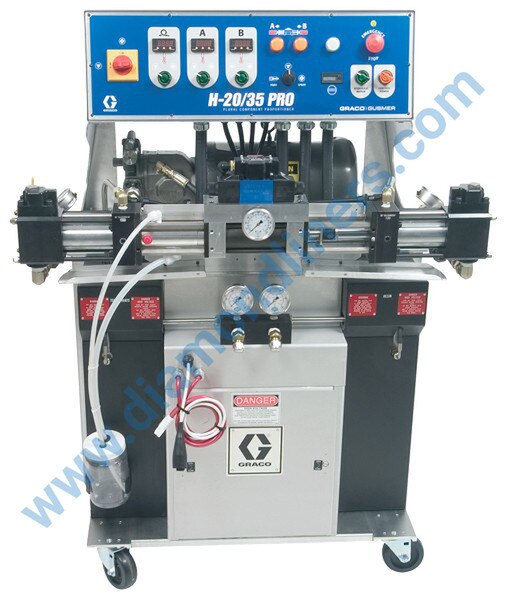

Graco Reactor H20/35 Pro - Coating Proportioner

Parts

Part#
Part Description
List Price
Part#100206
Part NameBushing 1/2M x 1/4F Steel
List Price$14.50
Part#100469
Part NameSCREW - CAP,HEX HD
List Price$4.60
Part#100615
Part NameBUSHING - HEX STEEL (Old Gusmer Part #0385-4)
List Price$17.10
Part#100721
Part NamePlug, pipe 1/8-18 npt; round and flat pattern guns only
List Price$11.30
Part#100737
Part Name5/16 Drain Plug
List Price$5.45
Part#101078
Part NameY Strainer; (20 Mesh), 3/4" NPT
List Price$97.00
Part#102814
Part NameFLUID GAUGE, 5000PSI
List Price$75.00
Part#103610
Part NameO-Ring; fluoroelastomer
List Price$6.65
Part#106292
Part NameNut Hex
List Price$4.30
Part#107167
Part NameBall Valve, Check
List Price$29.30
Part#108103
Part NameO-ring
List Price$11.10
Part#108195
Part NamePacking O-Ring
List Price$2.45
Part#108984
Part NamePLUG - HOLLOW HEX
List Price$8.25
Part#109077
Part NameBall Valve, 3/4" NPT (FBE)
List Price$118.00
Part#110141
Part NameScrew Cap SCH
List Price$7.70
Part#110300
Part NameFITTING - ELBOW, STREET
List Price$107.50
Part#110733
Part NameFITTING - ELBOW, 45 DEG. 1/4 NPT
List Price$17.80
Part#111279
Part NameBall Metallic
List Price$11.20
Part#111337
Part NameFitting: Male Run Tee, 3/4 npt (m) run x 3/4 npt (f) branch
List Price$59.00
Part#112166
Part NameScrew Cap
List Price$2.45
Part#112793
Part NamePacking O-Ring
List Price$3.65
Part#117502
Part NameFitting; Reducer, #5 x #8, JIC
List Price$29.00
Part#117532
Part NameElbow, 90 Deg.; 1/2 in. OD tube x 1/2 npt(m)
List Price$27.20
Part#117556
Part Namefitting elbow, #8JICX1/2NP
List Price$16.10
Part#117557
Part NameFitting; 45 Male Elbow, 1/2 NPT x 5/8 Tube #10 JIC
List Price$18.10
Part#117677
Part NameFitting; Reducer, #6 x #10, JIC
List Price$31.50
Part#120387
Part NameControl, Heater, 240V
List Price$2,010.00
Part#120656
Part NameRELAY CONTACTOR
List Price$230.50
Part#15H611
Part NameBRACKET MTG,HEAT CONTROLLR
List Price$37.00
Part#183555
Part NamePIN - STOP,BALL
List Price$19.80
Part#206995
Part NameThroat Seal Liquid..1 quart
List Price$34.80
Part#247371
Part Name#30 Proportioner Pump Kit
List Price$4,320.00
Part#247372
Part Name#40 Proportioner Pump Kit
List Price$4,320.00
Part#247373
Part NameKIT,PROPORTIONER PUMP,48
List Price$4,320.00
Part#247374
Part Name#60 Proportioner Pump, Kit
List Price$4,320.00
Part#247375
Part Name#80 Proportioner Pump Kit
List Price$4,320.00
Part#247376
Part NameKIT,PROPORTIONER PUMP,96
List Price$4,320.00
Part#247377
Part Name#120 Proportioner Pump Kit
List Price$4,320.00
Part#247576
Part NameKit, Proportioner, 140
List Price$4,320.00
Part#247577
Part NameKit, Proportioner, 88
List Price$4,320.00
Part#255026
Part NameKIT,CKT BRKR,1 POLE,50A,C CRV
List Price$104.00
Part#258920
Part NameRepair Knob Kit
List Price$336.00
Part#261502
Part NameSPACER REVERSING SWITCH
List Price$66.50
Part#261753
Part NamePiston Seal Kit, 104
List Price$692.00
Part#261754
Part NameA Rod Kit, 104
List Price$692.00
Part#288624
Part NameKit, Switch, Hydraulic Motor Switch Kit
List Price$173.50
Part#288625
Part NameKIT, SWITCH, POWER CONTROL
List Price$207.50
Part#288626
Part NameKIT,LIGHT,PUMP DIRECTION
List Price$129.00
Part#288627
Part NameKIT,LIGHT,DISPLAY,POWER
List Price$129.00
Part#288630
Part NameStroke Switch Kit
List Price$112.50
Part#295027
Part NameHydraulic Cylinder with Spacers
List Price$2,010.00
Part#295029
Part NamePlate Retainer
List Price$72.75
Part#295030
Part NameCylinder for Hydraulic
List Price$218.50
Part#295031
Part NameBushing Rod
List Price$83.50
Part#295032
Part NamePump Spacer
List Price$56.75
Part#295034
Part NameHydraulic Cylinder Rod Tie
List Price$37.00
Part#295035
Part NameBLOCK - PORT
List Price$177.50
Part#295072
Part Name120 Pump Outlet Flange
List Price$313.00
Part#295080
Part NameFlange, B Side
List Price$197.00
Part#295095
Part NameSeat Seal
List Price$13.50
Part#295099
Part NameSeat Valve, Check
List Price$57.50
Part#295139
Part NameSTOP - SLEEVE,BALL,INLET
List Price$182.50
Part#295141
Part NameRod, tie
List Price$58.50
Part#295205
Part NameRelay 480/50 AMP,SS
List Price$113.50
Part#295206
Part NameRELAY 120 VAC,DPDT
List Price$52.75
Part#295209
Part NameSWITCH 100A DISCONNECT
List Price$625.00
Part#295210
Part NameSWITCH OPERATOR HANDLE
List Price$54.50
Part#295216
Part Nameconnector din, press sw
List Price$21.80
Part#295226
Part NameSpring
List Price$24.30
Part#295228
Part NameRING RETAINER
List Price$2.75
Part#295229
Part NameFitting, Grease; 1/4-28
List Price$2.75
Part#295257
Part NameCIRCUIT BRKR 6A,1P
List Price$122.00
Part#295268
Part NameBUSHING HUBBLE (Old Gusmer #OP482-17-1)
List Price$20.80
Part#295269
Part NameNUT LOCK,HUBBLE (Old Gusmer #OP482-17-2)
List Price$2.75
Part#295312
Part NamePin, Dowel
List Price$2.75
Part#295313
Part NameRing, retainer
List Price$2.75
Part#295354
Part NameCIRCUIT BRKR - 50A,2P
List Price$330.00
Part#295355
Part NameCIRCUIT BRKR - 32A,2P
List Price$251.50
Part#295397
Part NameFitting; Elbow 3/8 MPT x1/2
List Price$23.00
Part#295464
Part NameHEATER - CARTRIDGE,1000W
List Price$213.00
Part#295469
Part NameCIRCUIT BRKR - 60A,2P
List Price$266.50
Part#295477
Part NameSWITCH - OVERTEMP,SAFETY
List Price$45.70
Part#295480
Part Namewire tsu, assy
List Price$266.50
Part#295603
Part NameFITTING - ELBOW,90
List Price$70.00
Part#295604
Part Name1/4 Tube Nut
List Price$3.65
Part#295605
Part Name1/4 Ferrule Tube
List Price$2.75
Part#295607
Part NamePLUG - HEX
List Price$4.50
Part#295610
Part NameSPRING - ROUND
List Price$44.50
Part#295721
Part NameGun Block Base
List Price$284.50
Part#295737 (discontinued)
Part NameWire Nut
List Price$2.45
Part#295747
Part NameValve Directional
List Price$425.00
Part#295777
Part NameGAUGE - FLUID LEVEL, TEMP
List Price$118.50
Part#295781
Part NameFILLER - HYDRAULIC, 45 DEG.
List Price$138.00
Part#295825
Part NameLube Cylinder Adapter Plate
List Price$71.50
Part#295826
Part NameElbow Fitting 90, 1/4 x 3/8..(Old Gusmer 1484-3)
List Price$11.60
Part#295827
Part NameO-RING VITON # 136
List Price$4.95
Part#295828
Part NameBronze Bushing
List Price$151.50
Part#295829
Part NameFitting Plug; 3/8 npt (m) X .343
List Price$7.50
Part#295830
Part Name1/4 MPT x 1/2T Fitting Elbow
List Price$33.20
Part#295852
Part NameNut Jam, Baffle
List Price$57.75
Part#295855
Part NameActivator Plate
List Price$200.50
Part#296103
Part NameCylinder Seal Kit
List Price$212.00
Part#296220
Part NamePressure Gauge
List Price$135.00
Part#296412
Part NameHose R Isolation
List Price$356.00
Part#296413
Part NameHose A Isolation
List Price$353.00
Part#296607
Part NameClevis Pin Removal Tool
List Price$42.00
Part#296608
Part NameTool ball, Seat removal
List Price$42.00
Part#296609
Part NameBall Seat Removal Tool
List Price$41.50
Part#296640
Part NameO-Ring; fluoroelastomer (5 PKG)
List Price$118.00
Part#296641
Part NameRing, backup; PTFE (1 only)
List Price$33.20
Part#296642
Part NamePiston Assembly
List Price$542.00
Part#296645
Part NamePump Cylinder Kit
List Price$309.00
Part#296647
Part NameKit Seat, Valve
List Price$175.00
Part#296648
Part Name3/4 MPT x 3/4 MPT 90 EL STL
List Price$78.50
Part#296651
Part NameIso Cyl Lube Kit
List Price$166.00
Part#296652
Part NameKit Clevis, Cylinder HYD
List Price$186.00
Part#296653
Part NameKit Pin, Clevis
List Price$93.75
Part#296729
Part NameGauge 0-2000 psi
List Price$152.50
Part#296731
Part NameLube Reservoir Hose Assy.
List Price$118.50
Part#296735
Part NameKIT - PISTON ROD W/ HEAD
List Price$1,275.00
Part#296742
Part NameKit, Piston Seal Kit for #80 A-Side and B-Side Pumps
List Price$435.00
Part#296745
Part NamePiston Lip Seal Kit
List Price$185.00
Part#296768
Part NameKit; Cylinder Seal Kit for #80 A-side Pump
List Price$289.00
Part#296776
Part NameKit Temp, Control, Preheat
List Price$1,815.00
Part#296778
Part NameTemperature Control Hose Kit for H20/35
List Price$1,815.00
Part#296781
Part NameKIT - 5HP MOTOR REPL. (Old Gusmer Part # 6691-46-KIT)
List Price$2,770.00
Part#296789
Part NamePump Clevis Kit
List Price$177.50
Part#296793
Part NameRetainer, valve, outlet
List Price$130.50
Part#296794
Part NameCheck Valve Seal (qty 10)
List Price$45.70
Part#296795
Part NameKIT - WASHER, PISTON SUPPORT
List Price$91.00
Part#296796 (discontinued)
Part NameWasher, piston support; #80 size pumps
List Price$76.25
Part#296798
Part NameHeating Element 1500 watt
List Price$216.00
Part#296805
Part NameKIT - BASE, UPPER PUMP
List Price$322.00
Part#296808
Part NameReversing Switch Assembly
List Price$343.00
Part#296813
Part NameRing Kit
List Price$203.00
Part#296817
Part NamePressure Switch
List Price$299.00
Part#296821
Part Name2200 psi Switch Kit
List Price$299.00
Part#296822
Part NameKIT - SWITCH,PRS.,2800PSI-R
List Price$299.00
Part#296824
Part NameKit CNTRL, PWR, 120V, 18A
List Price$688.00
Part#296825
Part NameKIT - COUNTER,DIGITAL
List Price$361.00
Part#296826
Part NameKIT THRMCPLE-E
List Price$185.00
Part#298011
Part Name120 Piston Kit
List Price$345.00
Part#502682
Part NameWASHER - FLAT CS
List Price$0.75
Part#C19080
Part NameSCREW - CAP,HEX HD
List Price$6.50
Part#C20487
Part NameFitting: Nipple, Hex, 3/4" x 3/4"
List Price$17.40
Part#M70430
Part NameSCREW - SS,CUP,1/4-28 X .19
List Price$2.00
Part#261821
Part NamePower-Lock Splice Kit; 6 AWG, Connector for Heated Hose
List Price$51.75
Part#261734
Part NameKit Rod, B-Side, #80
List Price$345.00
Part#247377
Part Name#120 Proportioner Pump Kit
List Price$4,320.00
Part#297117
Part NameKit Piston Rod With Head
List Price$629.00
Part#247375
Part Name#80 Proportioner Pump Kit
List Price$4,320.00
Part#261784
Part NameTOOL,INSTALLATION,SEAL,80
List Price$40.30

Downloads

Name
Download
NameH-20/35 Pro Operation Manual
DownloadDownload
NameH-20/35 Pro Repair - Parts Manual
DownloadDownload
NameOld Proportioning Pumps Repair - Parts Manual
DownloadDownload
NameH-20/35 Pro Repair Kits
DownloadDownload
NameProportioning Pump Piston & Cylinder Seal Kits Instruction - Parts Manual
DownloadDownload
