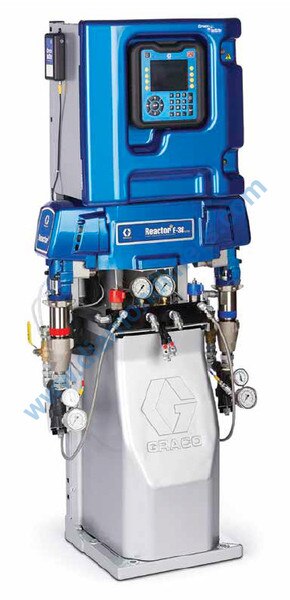

Graco Reactor 2 E-30

Reactor 2 Top 10 List

1. Advanced control technology
  • Tracks, monitors and saves project data
  • Data can be downloaded onto a USB drive for further analysis
  • Easy to view data display
  • Stores up to 24 chemical recipes
  • Drum level indicators


2. Graco InSite Remote Reporting Technology
  • Transmits real-time job activity you can view on your smart phone, tablet or computer
  • Lets you control your business wherever you are

3. Troubleshooting made easy

  • On-screen troubleshooting with QR code shortcuts to web-based advanced troubleshooting info
  • Results in less downtime

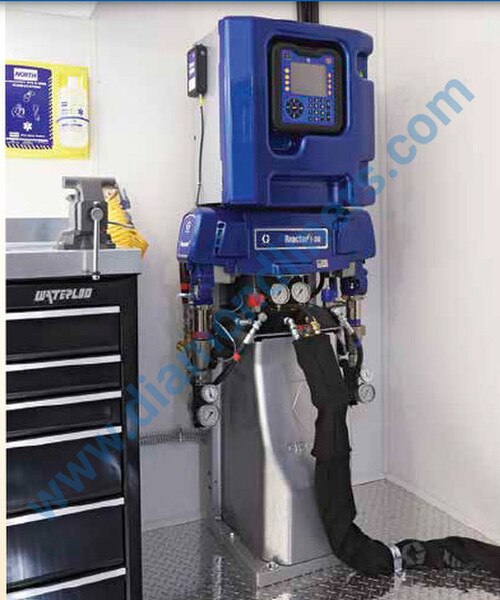

4. Compact design
  • 40% smaller footprint than a traditional Reactor E-30


5. Ergonomics

  • Easy to reach, conveniently-placed electronics


6. Troubleshooting Y-strainer

  • Analog temperature and pressure gauges


7. Sacrificial surge protector

  • Protects your electronics against excessive power spikes
  • Extra sacrificial surge protector included with Reactor 2 to get you back up and running immediately


8. Advanced circuit boards

  • Handles power fluctuations
  • Minimizes pressure fluctuations on pump changeover
  • Result is a smooth, consistent spray performance similar to hydraulic systems


9. Brushless electric motor

  • Improved control and performance
  • No maintenance
  • Longer life


10. Three-year warranty

  • Covers user display module, control boards and electric motor
  • One of the best in the industry

Reactor 2 Elite models include:
  • Graco InSite Remote Reporting Technology
  • Inlet pressure and temperature sensor (interfaces with Graco InSite)
  • Xtreme-Wrap Scuff Guard on heated hoses for Reactor 2 packages


Reactor 2 standard models include:

  • Graco InSite upgradable (will not include inlet temperature and pressure)
  • No inlet pressure and temperature sensor
  • Standard scuff guard on heated hoses with Reactor packages

Equipment

Part#
Part Description
List Price
Part#272110
Part DescriptionReactor 2 E-30 (E Series) ELITE Proportioner BARE, output 30 lb/min, working pressure 2,000 psi, 10.2 kW heater, (RTD) fluid temperature sensor, Graco InSite, Fluid Inlet Sensors, (230V, 1ph - 78A) (230V, 3ph - 50A) (400V, 3ph - 34A)
List Price$27,970.00
Part#AP2110
Part DescriptionReactor 2 E-30 (E Series) ELITE Proportioner PKG. output 30 lb/min, working pressure 2,000 psi, 10.2 kW heater, 50' heated hose w/xtreme wrap, 10' heated whip w/scuff jacket, (RTD) fluid temperature sensor, Graco InSite, Fluid Inlet Sensors, Fusion AP gun, (230V, 1ph - 78A) (230V, 3ph - 50A)
List Price$32,620.00
Part#AH2110
Part DescriptionMULTIPLE HOSE PACKAGE Reactor 2 E-30 (E Series) ELITE Proportioner output 30 lb/min, working pressure 2,000 psi, 10.2 kW heater, # of Five 50' heated hose w/xtreme wrap, 10' heated whip w/scuff jacket, (RTD) fluid temperature sensor, Fusion AP gun, (230V, 1ph -78A) (230V, 3ph - 50A)
List Price$40,800.00
Part#CS2110
Part DescriptionReactor 2 E-30 (E Series) ELITE Proportioner PKG. output 30 lb/min, working pressure 2,000 psi, 10.2 kW heater, 50' heated hose w/xtreme wrap, 10' heated whip w/scuff jacket, (RTD) fluid temperature sensor, Graco InSite, Fluid Inlet Sensors, Fusion Clear Shot gun, (230V, 1ph - 78A) (230V, 3ph - 50A)
List Price$32,830.00
Part#CH2110
Part DescriptionMULTIPLE HOSE PACKAGE Reactor 2 E-30 (E Series) ELITE Proportioner output 30 lb/min, working pressure 2,000 psi, 10.2 kW heater, # of Five 50' heated hose w/xtreme wrap, 10' heated whip w/scuff jacket, (RTD) fluid temperature sensor, Fusion Clear Shot gun, (230V, 1ph -78A) (230V, 3ph - 50A)
List Price$41,010.00
Part#P22110
Part DescriptionReactor 2 E-30 (E Series) ELITE Proportioner PKG. output 30 lb/min, working pressure 2,000 psi, 10.2 kW heater, 50' heated hose w/xtreme wrap, 10' heated whip w/scuff jacket, (RTD) fluid temperature sensor, Graco InSite, Fluid Inlet Sensors, Probler P2 gun, (230V, 1ph - 78A) (230V, 3ph - 50A)
List Price$33,190.00
Part#PH2110
Part DescriptionMULTIPLE HOSE PACKAGE Reactor 2 E-30 (E Series) ELITE Proportioner output 30 lb/min, working pressure 2,000 psi, 10.2 kW heater, # of Five 50' heated hose w/xtreme wrap, 10' heated whip w/scuff jacket, (RTD) fluid temperature sensor, Probler P2 gun, (230V, 1ph -78A) (230V, 3ph - 50A)
List Price$41,360.00
Part#272111
Part DescriptionReactor 2 E-30 (E Series) ELITE Proportioner BARE, output 30 lb/min, working pressure 2,000 psi, 15.3 kW heater, (RTD) fluid temperature sensor, Graco InSite, Fluid Inlet Sensors, (230V, 1ph, - 100A) (230V, 3ph - 62A) (400V, 3ph - 35A)
List Price$29,600.00
Part#AP2111
Part DescriptionReactor 2 E-30 (E Series) ELITE Proportioner PKG. output 30 lb/min, working pressure 2,000 psi, 15.3 kW heater, 50' heated hose w/xtreme wrap, 10' heated whip w/scuff jacket, (RTD) fluid temperature sensor, Graco InSite, Fluid Inlet Sensors, Fusion AP gun, (230V, 1ph - 100A) (230V, 3ph - 62A)
List Price$34,250.00
Part#AH2111
Part DescriptionMULTIPLE HOSE PACKAGE Reactor 2 E-30 (E Series) ELITE Proportioner output 30 lb/min, working pressure 2,000 psi, 15.3 kW heater, # of Five 50' heated hose w/xtreme wrap, 10' heated whip w/scuff jacket, (RTD) fluid temperature sensor, Fusion AP gun, (230V, 1ph -100A) (230V, 3ph - 62A) (400V, 3ph - 35
List Price$42,430.00
Part#CS2111
Part DescriptionReactor 2 E-30 (E Series) ELITE Proportioner PKG. output 30 lb/min, working pressure 2,000 psi, 15.3 kW heater, 50' heated hose w/xtreme wrap, 10' heated whip w/scuff jacket, (RTD) fluid temperature sensor, Graco InSite, Fluid Inlet Sensors, Fusion Clear Shot gun, (230V, 1ph - 100A) (230V, 3ph - 62A
List Price$34,460.00
Part#CH2111
Part DescriptionMULTIPLE HOSE PACKAGE Reactor 2 E-30 (E Series) ELITE Proportioner output 30 lb/min, working pressure 2,000 psi, 15.3 kW heater, # of Five 50' heated hose w/xtreme wrap, 10' heated whip w/scuff jacket, (RTD) fluid temperature sensor, Fusion Clear Shot gun, (230V, 1ph -100A) (230V, 3ph - 62A)
List Price$42,640.00
Part#P22111
Part DescriptionReactor 2 E-30 (E Series) ELITE Proportioner PKG. output 30 lb/min, working pressure 2,000 psi, 15.3 kW heater, 50' heated hose w/xtreme wrap, 10' heated whip w/scuff jacket, (RTD) fluid temperature sensor, Graco InSite, Fluid Inlet Sensors, Probler P2 gun, (230V, 1ph - 100A) (230V, 3ph - 62A)
List Price$34,820.00
Part#PH2111
Part DescriptionMULTIPLE HOSE PACKAGE Reactor 2 E-30 (E Series) ELITE Proportioner output 30 lb/min, working pressure 2,000 psi, 15.3 kW heater, # of Five 50' heated hose w/xtreme wrap, 10' heated whip w/scuff jacket, (RTD) fluid temperature sensor, Probler P2 gun, (230V, 1ph -100A) (230V, 3ph - 62A)
List Price$42,990.00
Part#272010
Part DescriptionReactor 2 E-30 (E Series) STANDARD Proportioner BARE, output 30 lb/min, max working pressure 2,000 psi, 10.2 kW heater, and (RTD) fluid temperature sensor, (230V, 1ph - 78A) (230V, 3ph - 50A) (400V, 3ph - 34A)
List Price$25,640.00
Part#AP2010
Part DescriptionReactor 2 E-30 (E Series) STANDARD Proportioner PKG. output 30 lb/min, working pressure 2,000 psi, 10.2 kW heater, 50' heated hose with blue mesh scuff guard, 10' heated whip w/scuff jacket, (RTD) fluid temperature sensor, Fusion AP gun, (230V, 1ph - 78A) (230V, 3ph - 50A) (400V, 3ph - 34A)
List Price$30,070.00
Part#AH2010
Part DescriptionMULTIPLE HOSE PACKAGE Reactor 2 E-30 (E Series) STANDARD Proportioner output 30 lb/min, working pressure 2,000 psi, 10.2 kW heater, # of Five 50' heated hose w/xtreme wrap, 10' heated whip w/scuff jacket, (RTD) fluid temperature sensor, Fusion AP gun, (230V, 1ph - 78A) (230V, 3ph - 50A) (400V, 3ph -
List Price$37,250.00
Part#CS2010
Part DescriptionReactor 2 E-30 (E Series) STANDARD Proportioner PKG. output 30 lb/min, working pressure 2,000 psi, 10.2 kW heater, 50' heated hose with blue mesh scuff guard, 10' heated whip w/scuff jacket, (RTD) fluid temperature sensor, Fusion Clear Shot gun, (230V, 1ph - 78A) (230V, 3ph - 50A) (400V, 3ph - 34A)
List Price$30,280.00
Part#CH2010
Part DescriptionMULTIPLE HOSE PACKAGE Reactor 2 E-30 (E Series) STANDARD Proportioner output 30 lb/min, working pressure 2,000 psi, 10.2 kW heater, # of Five 50' heated hose w/xtreme wrap, 10' heated whip w/scuff jacket, (RTD) fluid temperature sensor, Fusion Clear Shot gun, (230V, 1ph -78A) (230V, 3ph -50A)
List Price$37,460.00
Part#P22010
Part DescriptionReactor 2 E-30 (E Series) STANDARD Proportioner PKG. output 30 lb/min, working pressure 2,000 psi, 10.2 kW heater, 50' heated hose with blue mesh scuff guard, 10' heated whip w/scuff jacket, (RTD) fluid temperature sensor, Probler P2 gun, (230V, 1ph - 78A) (230v, 3ph - 50A) (400V, 3ph -34A)
List Price$30,630.00
Part#PH2010
Part DescriptionMULTIPLE HOSE PACKAGE Reactor 2 E-30 (E Series) STANDARD Proportioner output 30 lb/min, working pressure 2,000 psi, 10.2 kW heater, # of Five 50' heated hose w/xtreme wrap, 10' heated whip w/scuff jacket, (RTD) fluid temperature sensor, Probler P2 gun, (230V, 1ph -78A) (230V, 3ph -50A)
List Price$37,820.00
Part#272011
Part DescriptionReactor 2 E-30 (E Series) STANDARD Proportioner BARE, output 30 lb/min, max working pressure 2,000 psi, 15.3 kW heater, and (RTD) fluid temperature sensor, (230V, 1ph - 100A) (230V. 3ph - 62A) (400V, 3ph - 35A)
List Price$27,270.00
Part#AP2011
Part DescriptionReactor 2 E-30 (E Series) STANDARD Proportioner PKG. output 30 lb/min, working pressure 2,000 psi, 15.3 kW heater, 50' heated hose with blue mesh scuff guard, 10' heated whip w/scuff jacket, (RTD) fluid temperature sensor, Fusion AP gun, (230V, 1ph - 100A) (230V, 3ph - 62A) (400V, 3ph - 35A)
List Price$31,700.00
Part#AH2011
Part DescriptionMULTIPLE HOSE PACKAGE Reactor 2 E-30 (E Series) STANDARD Proportioner output 30 lb/min, working pressure 2,000 psi, 15.3 kW heater, # of Five 50' heated hose w/xtreme wrap, 10' heated whip w/scuff jacket, (RTD) fluid temperature sensor, Fusion AP gun, (203V, 1ph - 100A) (230V, 3ph -62A)
List Price$38,880.00
Part#CS2011
Part DescriptionReactor 2 E-30 (E Series) STANDARD Proportioner PKG. output 30 lb/min, working pressure 2,000 psi, 15.3 kW heater, 50' heated hose with blue mesh scuff guard, 10' heated whip w/scuff jacket, (RTD) fluid temperature sensor, Fusion Clear Shot gun, (230V, 1ph - 100A) (230V, 3ph - 62A) (400V, 3ph - 35A)
List Price$31,910.00
Part#CH2011
Part DescriptionMULTIPLE HOSE PACKAGE Reactor 2 E-30 (E Series) STANDARD Proportioner output 30 lb/min, working pressure 2,000 psi, 15.3 kW heater, # of Five 50' heated hose w/xtreme wrap, 10' heated whip w/scuff jacket, (RTD) fluid temperature sensor, Fusion Clear Shot gun, (203V, 1ph - 100A) (230V, 3ph -62A) (400
List Price$39,090.00
Part#P22011
Part DescriptionReactor 2 E-30 (E Series) STANDARD Proportioner PKG. output 30 lb/min, working pressure 2,000 psi, 15.3 kW heater, 50' heated hose with blue mesh scuff guard, 10' heated whip w/scuff jacket, (RTD) fluid temperature sensor, Probler P2 gun, (230V, 1ph - 100A) (230V, 3ph - 62A) (400V, 3ph - 35A)
List Price$32,260.00
Part#PH2011
Part DescriptionMULTIPLE HOSE PACKAGE Reactor 2 E-30 (E Series) STANDARD Proportioner output 30 lb/min, working pressure 2,000 psi, 15.3 kW heater, # of Five 50' heated hose w/xtreme wrap, 10' heated whip w/scuff jacket, (RTD) fluid temperature sensor, Probler P2 gun, (203V, 1ph - 100A) (230V, 3ph -62A)
List Price$39,450.00

Parts

Part#
Part Description
List Price
Part#246995
Part NameReservoir; Bottle Assy, Complete, Reactor
List Price$144.00
Part#261821
Part NamePower-Lock Splice Kit; 6 AWG, Connector for Heated Hose
List Price$53.00
Part#15B456
Part NameGasket Manifold
List Price$23.70
Part#119865
Part NameSCREW - HH,FLANGED,1/4-20 X .375
List Price$3.55
Part#118444
Part NameSCREW - MACH,SLOT HEX WASH HD
List Price$1.90
Part#117683
Part NameSCREW - MACH, PAN HD
List Price$2.20
Part#113796
Part NameSCREW - FLANGED,HEX HD
List Price$1.95
Part#112731
Part NameNUT - HEX,FLANGED
List Price$5.00
Part#111800
Part NameScrew Cap, Hex HD
List Price$3.10
Part#111218
Part NameCAP - TUBE,SQUARE
List Price$5.30
Part#110996
Part NameNUT - HEX,FLANGED
List Price$4.45
Part#104859
Part NameSCREW - TAPPING PNHD
List Price$4.85
Part#103181
Part NameWASHER - LOCK EXT (Old Gusmer Part #0655-4)
List Price$4.60
Part#100020
Part NameWASHER - LOCK
List Price$4.45
Part#115836
Part NameGuard Finger
List Price$4.00
Part#113505
Part NameNUT - KEPS,HEX HD,#10
List Price$3.75
Part#114269
Part NameGROMMET - RUBBER
List Price$4.00
Part#24K207
Part NameRTD 2-Component Hose Fluid Temperature Sensor device for Reactor 2 machines. (JIC to JIC fittings)
List Price$446.00
Part#106569
Part NameTAPE - ELECTRICAL
List Price$17.80
Part#104765
Part NamePlug Pipe Headless
List Price$12.10
Part#24U845
Part NamePressure Relief Tube - Stainless Steel
List Price$190.50
Part#191892
Part NameElbow, 1/8 npt (mxf)
List Price$25.20
Part#116746
Part NameFitting, barbed
List Price$5.70
Part#16U530
Part NameMODULE, system surge protector
List Price$83.25
Part#206995
Part NameThroat Seal Liquid..1 quart
List Price$35.70
Part#206994
Part NameTSL Throat Seal Liquid..1/2 Pint (8 oz)
List Price$11.60
Part#117502
Part NameFitting; Reducer, #5 x #8, JIC
List Price$29.70
Part#117677
Part NameFitting; Reducer, #6 x #10, JIC
List Price$32.30
Part#15V551
Part NameSHIELD MEMBRANE,ADM
List Price$13.40
Part#115942
Part NameNut Hex, Flange Head
List Price$6.70
Part#245972
Part NameDisplacement Pump, E-30 component B, .743/479.22
List Price$2,100.00
Part#114699
Part NameWasher; thrust; steel
List Price$1.90
Part#114672
Part NameWasher; thrust; bronze
List Price$1.90
Part#183169
Part NameRetaining Spring
List Price$3.85
Part#183210
Part NamePin
List Price$18.90
Part#15C753
Part NameSCREW - MACH,TORX,HEX WASH HD
List Price$1.90
Part#114666
Part NameScrew, cap, socket-hd 3/8-16x2-1/4 in
List Price$1.90
Part#106115
Part NameWasher, lock 3/8 in.
List Price$4.45
Part#246832
Part NameDisplacement Pump, with lube pump, 743
List Price$2,150.00
Part#193394
Part NameRetaining Nut
List Price$23.60
Part#116192
Part NameWasher, thrust; 245957, 245959
List Price$3.10
Part#104765
Part NamePlug Pipe Headless
List Price$12.10
Part#116618
Part Namemagnet
List Price$6.10
Part#124132
Part NameO-ring
List Price$2.15
Part#15H305
Part NameFITTING - PLUG HLLW HEX 1-3/16
List Price$15.00
Part#121309
Part NameFITTING,CONN,3/4SAE X 1/2 JIC
List Price$5.05
Part#15H304
Part NameFitting Plug, HLLW Hex. 9/16
List Price$9.45
Part#15H306
Part NameAdapter Thermocouple
List Price$65.75
Part#120336
Part NamePacking O-Ring
List Price$9.00
Part#16A110
Part NameHEAT IMMERSION(2550W,230V)
List Price$351.00
Part#15B137
Part NameSwitch Over Temp
List Price$49.20
Part#15B135
Part NameMixer Immersion Heater
List Price$35.60
