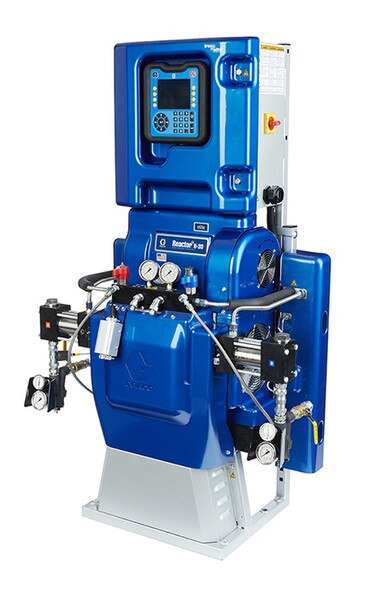

Graco Reactor 2 H-30

Next generation technology for spray foam insulation

What a hydraulic system can do for you:
  • Dependability - robust, durable, longest life spray system
  • Reduce downtime - allows for longer time in between required maintenance
  • Increase daily productivity - capable of extremely high duty cycle

Easy to reach, conveniently-placed electronics

Advanced control technology
  • Tracks, monitors and saves project data
  • Data can be saved and downloaded onto a USB drive
  • Stores up to 24 chemical recipes
  • Drum level indicators

Graco InSite Remote Reporting Technology
  • FREE 6 month trial (Offer Expires December 24, 2015)
  • Transmits real-time job activity you can view on your smart phone, tablet or computer
  • Included on Elite models

Quick and easy troubleshooting thanks to QR code shortcuts
  • Results in less downtime

Sacrificial surge protector
  • Protects your electronics against excessive power spikes

Three-year warranty
  • Covers user display and control modules
  • One of the best in the industry

Equipment

Part#
Part Description
List Price
Part#17H031
Part DescriptionReactor 2 H-30 (H Series) STANDARD Proportioner BARE, output 28 lb/min, max working pressure 2,000 psi, 10.2 kW heater, (RTD) fluid temperature sensor, (Selectable Voltage)
List Price$28,970.00
Part#17H032
Part DescriptionReactor 2 H-30 (H Series) STANDARD Proportioner BARE, output 28 lb/min, max working pressure 2,000 psi, 15.3 kW heater, (RTD) fluid temperature sensor, (Selectable Voltage)
List Price$30,540.00
Part#17H131
Part DescriptionReactor 2 H-30 (H Series) ELITE Proportioner BARE, output 28 lb/min, max working pressure 2,000 psi, 10.2 kW heater, (RTD) fluid temperature sensor, Graco InSite, Fluid Inlet Sensors, (Selectable Voltage)
List Price$30,610.00
Part#17H132
Part DescriptionReactor 2 H-30 (H Series) ELITE Proportioner BARE, output 28 lb/min, max working pressure 2,000 psi, 15.3 kW heater, (RTD) fluid temperature sensor, Graco InSite, Fluid Inlet Sensors, (Selectable Voltage)
List Price$32,190.00
Part#APH031
Part DescriptionReactor 2 H-30 (H Series) STANDARD Proportioner PKG. output 28 lb/min, working pressure 2,000 psi, 10.2 kW heater, 50' heated hose w/xtreme wrap, 10' heated whip w/scuff jacket, (RTD) fluid temperature sensor, Fusion AP gun, (Selectable Voltage)
List Price$33,290.00
Part#AHH031
Part DescriptionMULTIPLE HOSE PACKAGE Reactor 2 H-30 (H Series) STANDARD Proportioner output 28 lb/min, working pressure 2,000 psi, 10.2 kW heater, # of Five 50' heated hose w/xtreme wrap, 10' heated whip w/scuff jacket, (RTD) fluid temperature sensor, Fusion AP gun, (Selectable Voltage)
List Price$40,300.00
Part#APH032
Part DescriptionReactor 2 H-30 (H Series) STANDARD Proportioner PKG. output 28 lb/min, working pressure 2,000 psi, 15.3 kW heater, 50' heated hose with blue mesh scuff guard, 10' heated whip w/scuff jacket, (RTD) fluid temperature sensor, Fusion AP gun, (Selectable Voltage)
List Price$34,860.00
Part#AHH032
Part DescriptionMULTIPLE HOSE PACKAGE Reactor 2 H-30 (H Series) STANDARD Proportioner output 28 lb/min, working pressure 2,000 psi, 15.3 kW heater, # of Five 50' heated hose w/xtreme wrap, 10' heated whip w/scuff jacket, (RTD) fluid temperature sensor, Fusion AP gun, (Selectable Voltage)
List Price$41,870.00
Part#APH131
Part DescriptionReactor 2 H-30 (H Series) ELITE Proportioner PKG. output 28 lb/min, working pressure 2,000 psi, 10.2 kW heater, 50' heated hose w/xtreme wrap, 10' heated whip w/scuff jacket, (RTD) fluid temperature sensor, Graco InSite, Fluid Inlet Sensors, Fusion AP gun, (Selectable Voltage)
List Price$35,150.00
Part#AHH131
Part DescriptionMULTIPLE HOSE PACKAGE Reactor 2 H-30 (H Series) ELITE Proportioner output 28 lb/min, working pressure 2,000 psi, 10.2 kW heater, # of Five 50' heated hose w/xtreme wrap, 10' heated whip w/scuff jacket, (RTD) fluid temperature sensor, Fusion AP gun, (Selectable Voltage)
List Price$43,130.00
Part#APH132
Part DescriptionReactor 2 H-30 (H Series) ELITE Proportioner PKG. output 28 lb/min, working pressure 2,000 psi, 15.3 kW heater, 50' heated hose w/xtreme wrap, 10' heated whip w/scuff jacket, (RTD) fluid temperature sensor, Graco InSite, Fluid Inlet Sensors, Fusion AP gun, (Selectable Voltage)
List Price$36,730.00
Part#AHH132
Part DescriptionMULTIPLE HOSE PACKAGE Reactor 2 H-30 (H Series) ELITE Proportioner output 28 lb/min, working pressure 2,000 psi, 15.3 kW heater, # of Five 50' heated hose w/xtreme wrap, 10' heated whip w/scuff jacket, (RTD) fluid temperature sensor, Fusion AP gun, (Selectable Voltage)
List Price$44,710.00
Part#CSH031
Part DescriptionReactor 2 H-30 (H Series) STANDARD Proportioner PKG. output 28 lb/min, working pressure 2,000 psi, 10.2 kW heater, 50' heated hose w/xtreme wrap, 10' heated whip w/scuff jacket, (RTD) fluid temperature sensor, Fusion Clear Shot gun, (Selectable Voltage)
List Price$33,480.00
Part#CHH031
Part DescriptionMULTIPLE HOSE PACKAGE Reactor 2 H-30 (H Series) STANDARD Proportioner output 28 lb/min, working pressure 2,000 psi, 10.2 kW heater, # of Five 50' heated hose w/xtreme wrap, 10' heated whip w/scuff jacket, (RTD) fluid temperature sensor, Fusion Clear Shot gun, (Selectable Voltage)
List Price$40,490.00
Part#CSH032
Part DescriptionReactor 2 H-30 (H Series) STANDARD Proportioner PKG. output 28 lb/min, working pressure 2,000 psi, 15.3 kW heater, 50' heated hose w/xtreme wrap, 10' heated whip w/scuff jacket, (RTD) fluid temperature sensor, Fusion Clear Shot gun, (Selectable Voltage)
List Price$35,050.00
Part#CHH032
Part DescriptionMULTIPLE HOSE PACKAGE Reactor 2 H-30 (H Series) STANDARD Proportioner output 28 lb/min, working pressure 2,000 psi, 15.3 kW heater, # of Five 50' heated hose w/xtreme wrap, 10' heated whip w/scuff jacket, (RTD) fluid temperature sensor, Fusion Clear Shot gun, (Selectable Voltage)
List Price$42,060.00
Part#CSH131
Part DescriptionReactor 2 H-30 (H Series) ELITE Proportioner PKG. output 28 lb/min, working pressure 2,000 psi, 10.2 kW heater, 50' heated hose w/xtreme wrap, 10' heated whip w/scuff jacket, (RTD) fluid temperature sensor, Graco InSite, Fluid Inlet Sensors, Fusion Clear Shot gun, (Selectable Voltage)
List Price$35,340.00
Part#CHH131
Part DescriptionMULTIPLE HOSE PACKAGE Reactor 2 H-30 (H Series) ELITE Proportioner output 28 lb/min, working pressure 2,000 psi, 10.2 kW heater, # of Five 50' heated hose w/xtreme wrap, 10' heated whip w/scuff jacket, (RTD) fluid temperature sensor, Fusion Clear Shot gun, (Selectable Voltage)
List Price$43,320.00
Part#CSH132
Part DescriptionReactor 2 H-30 (H Series) ELITE Proportioner PKG. output 28 lb/min, working pressure 2,000 psi, 15.3 kW heater, 50' heated hose w/xtreme wrap, 10' heated whip w/scuff jacket, (RTD) fluid temperature sensor, Graco InSite, Fluid Inlet Sensors, Fusion Clear Shot gun, (Selectable Voltage)
List Price$36,920.00
Part#CHH132
Part DescriptionMULTIPLE HOSE PACKAGE Reactor 2 H-30 (H Series) ELITE Proportioner output 28 lb/min, working pressure 2,000 psi, 15.3 kW heater, # of Five 50' heated hose w/xtreme wrap, 10' heated whip w/scuff jacket, (RTD) fluid temperature sensor, Fusion Clear Shot gun, (Selectable Voltage)
List Price$44,900.00
Part#P2H031
Part DescriptionReactor 2 H-30 (H Series) STANDARD Proportioner PKG. output 28 lb/min, working pressure 2,000 psi, 10.2 kW heater, 50' heated hose w/xtreme wrap, 10' heated whip w/scuff jacket, (RTD) fluid temperature sensor, Probler P2 gun, (Selectable Voltage)
List Price$33,840.00
Part#PHH031
Part DescriptionMULTIPLE HOSE PACKAGE Reactor 2 H-30 (H Series) STANDARD Proportioner output 28 lb/min, working pressure 2,000 psi, 10.2 kW heater, # of Five 50' heated hose w/xtreme wrap, 10' heated whip w/scuff jacket, (RTD) fluid temperature sensor, Probler P2 gun, (Selectable Voltage)
List Price$40,850.00
Part#P2H032
Part DescriptionReactor 2 H-30 (H Series) STANDARD Proportioner PKG. output 28 lb/min, working pressure 2,000 psi, 15.3 kW heater, 50' heated hose w/xtreme wrap, 10' heated whip w/scuff jacket, (RTD) fluid temperature sensor, Probler P2 gun, (Selectable Voltage)
List Price$35,410.00
Part#PHH032
Part DescriptionMULTIPLE HOSE PACKAGE Reactor 2 H-30 (H Series) STANDARD Proportioner output 28 lb/min, working pressure 2,000 psi, 15.3 kW heater, # of Five 50' heated hose w/xtreme wrap, 10' heated whip w/scuff jacket, (RTD) fluid temperature sensor, Probler P2 gun, (Selectable Voltage)
List Price$42,420.00
Part#P2H131
Part DescriptionReactor 2 H-30 (H Series) ELITE Proportioner PKG. output 28 lb/min, working pressure 2,000 psi, 10.2 kW heater, 50' heated hose w/xtreme wrap, 10' heated whip w/scuff jacket, (RTD) fluid temperature sensor, Graco InSite, Fluid Inlet Sensors, Probler P2 gun, (Selectable Voltage)
List Price$35,700.00
Part#PHH131
Part DescriptionMULTIPLE HOSE PACKAGE Reactor 2 H-30 (H Series) ELITE Proportioner output 28 lb/min, working pressure 2,000 psi, 10.2 kW heater, # of Five 50' heated hose w/xtreme wrap, 10' heated whip w/scuff jacket, (RTD) fluid temperature sensor, Probler P2 gun, (Selectable Voltage)
List Price$43,680.00
Part#P2H132
Part DescriptionReactor 2 H-30 (H Series) ELITE Proportioner PKG. output 28 lb/min, working pressure 2,000 psi, 15.3 kW heater, 50' heated hose w/xtreme wrap, 10' heated whip w/scuff jacket, (RTD) fluid temperature sensor, Graco InSite, Fluid Inlet Sensors, Probler P2 gun, (Selectable Voltage)
List Price$37,280.00
Part#PHH132
Part DescriptionMULTIPLE HOSE PACKAGE Reactor 2 H-30 (H Series) ELITE Proportioner output 28 lb/min, working pressure 2,000 psi, 15.3 kW heater, # of Five 50' heated hose w/xtreme wrap, 10' heated whip w/scuff jacket, (RTD) fluid temperature sensor, Probler P2 gun, (Selectable Voltage)
List Price$45,260.00

Parts

Part#
Part Description
List Price
Part#112731
Part NameNUT - HEX,FLANGED
List Price$4.85
Part#115836
Part NameGuard Finger
List Price$4.00
Part#103181
Part NameWASHER - LOCK EXT (Old Gusmer Part #0655-4)
List Price$4.50
Part#117683
Part NameSCREW - MACH, PAN HD
List Price$2.15
Part#247812
Part NameTransformer
List Price$2,150.00
Part#247826
Part NameKIT, Reservoir ASSY, Hydr
List Price$1,035.00
Part#247778
Part NameKIT, Housing, Inlet, Reservoir
List Price$216.00
Part#247771
Part NameKIT, Gasket, Inlet
List Price$78.00
Part#247777
Part NameTube, Inlet Reservoir
List Price$129.00
Part#247770
Part NameTubem Return, Reservoir HYD
List Price$104.00
Part#116919
Part NameSCREEN SUCTION, HYDR.
List Price$33.00
Part#255032
Part NameFitting, Plug SAE
List Price$43.20
Part#255021
Part NameFitting, Straight, HYDR
List Price$43.20
Part#113796
Part NameSCREW - FLANGED,HEX HD
List Price$1.90
Part#15H524
Part NameACCUMULATOR - PRESSURE,1/4 NPT
List Price$27.50
Part#119789
Part NameFITTING - ELBOW,STRT,45 DEG,1/4NPT
List Price$5.70
Part#112567
Part NameGAUGE - PRESSURE,FLUID
List Price$97.50
Part#247829
Part NameKit, Cooler, Hydraulic
List Price$311.00
Part#247855
Part NameKit, Pump, Hydraulic
List Price$1,380.00
Part#15H512
Part NamePressure Control Label
List Price$9.20
Part#110792
Part NameFitting Elbow, Male, 90 DEG.
List Price$24.30
Part#115764
Part NameFitting Elbow, 90 DEG.
List Price$12.60
Part#247793
Part NameKit, Hose, Inlet, Coupled
List Price$173.50
Part#15G784
Part NameHose Coupled
List Price$59.50
Part#121321
Part NameFitting Elbow, MA 9/16 SAE x 1/2 JIC
List Price$11.10
Part#117464
Part NameClamp Hose
List Price$4.80
Part#112161
Part NameScrew Mach, Hex Hd
List Price$2.45
Part#112586
Part NameSCREW - CAP,HEX HD
List Price$2.05
Part#110996
Part NameNUT - HEX,FLANGED
List Price$4.30
Part#247816
Part Name230V, AC, 4.0HP Motor
List Price$1,585.00
Part#113802
Part NameSCREW - HEX HD,FLANGED
List Price$2.35
Part#15H207
Part NameTensioner Bracket
List Price$41.50
Part#247853
Part NameKit, Adjuster,Belt, Tensioner
List Price$167.50
Part#111802
Part NameSCREW - CAP,HEX HD
List Price$5.35
Part#15E410
Part NamePulley Fan
List Price$199.50
Part#803889
Part NameBelt AX46
List Price$19.10
Part#15B456
Part NameGasket Manifold
List Price$23.10
Part#117677
Part NameFitting; Reducer, #6 x #10, JIC
List Price$31.50
Part#117502
Part NameFitting; Reducer, #5 x #8, JIC
List Price$29.00
Part#24U845
Part NamePressure Relief Tube - Stainless Steel
List Price$186.00
Part#295731
Part NameNUT - WIRE,INSULATING (Old Gusmer #0363A)
List Price$4.75
Part#172953
Part NameLABEL DESIGNATION
List Price$3.35
Part#111218
Part NameCAP - TUBE,SQUARE
List Price$5.10
Part#16U530
Part NameMODULE, system surge protector
List Price$81.25
Part#296607
Part NameClevis Pin Removal Tool
List Price$42.00
Part#24K207
Part NameRTD 2-Component Hose Fluid Temperature Sensor device for Reactor 2 machines. (JIC to JIC fittings)
List Price$433.00
Part#C19843
Part NameSocket Head Screw Cap
List Price$6.50
Part#C20487
Part NameFitting: Nipple, Hex, 3/4" x 3/4"
List Price$17.40
Part#114027
Part NameWASHER - FLAT
List Price$2.35
Part#117284
Part Namegrill Fan Guard
List Price$29.10
Part#296731
Part NameLube Reservoir Hose Assy.
List Price$118.50
Part#206995
Part NameThroat Seal Liquid..1 quart
List Price$34.80
Part#116915
Part NameCAP - BREATHER FILLER
List Price$25.00
Part#247792
Part NameFilter Oil, 18-23 PSI bypass
List Price$46.00
Part#106569
Part NameTAPE - ELECTRICAL
List Price$17.10
Part#15V551
Part NameSHIELD MEMBRANE,ADM
List Price$13.00
Part#119865
Part NameSCREW - HH,FLANGED,1/4-20 X .375
List Price$3.45
Part#C19208
Part NameWASHER - LOCK
List Price$6.50
Part#24M174
Part NameKit, Drum Level, Metal
List Price$123.50
Part#255045
Part NameKIT,BLOCK,CLAMP END
List Price$82.00
Part#255022
Part Name3P, 65A Contactor Relay Kit
List Price$216.00
Part#255043
Part NameKIT,HOLDER,FUSE,TER BLK,5X20MM
List Price$78.00
Part#295824
Part NameScrew SHC, 5/16-24 X 3" LG
List Price$7.40
Part#112793
Part NamePacking O-Ring
List Price$3.65
Part#113467
Part NameSCREW - CAP,SOCKET HD
List Price$2.35
Part#120299
Part NameVALVE, DIRECTIONAL, HYDR.
List Price$502.00
Part#C19986
Part NameSCREW - CAP,SH,10-24 X 1.75
List Price$6.50
Part#111800
Part NameScrew Cap, Hex HD
List Price$3.00
Part#M70430
Part NameSCREW - SS,CUP,1/4-28 X .19
List Price$2.00
Part#296653
Part NameKit Pin, Clevis
List Price$93.75
Part#121312
Part NameFitting; Elbow, MA, 3/4 SAE X 1/2 JIC
List Price$8.75
Part#295225
Part NamePLUG PIPE,FLUSH
List Price$4.75
Part#106258
Part NamePacking, O-Ring #032 Viton
List Price$6.05
Part#295229
Part NameFitting, Grease; 1/4-28
List Price$2.75
Part#261863
Part NameKit, Lube Cylinder and Plate
List Price$156.00
Part#295829
Part NameFitting Plug; 3/8 npt (m) X .343
List Price$7.50
Part#295826
Part NameElbow Fitting 90, 1/4 x 3/8..(Old Gusmer 1484-3)
List Price$11.60
Part#295397
Part NameFitting; Elbow 3/8 MPT x1/2
List Price$23.00
Part#121309
Part NameFITTING,CONN,3/4SAE X 1/2 JIC
List Price$4.95
Part#295029
Part NamePlate Retainer
List Price$72.75
Part#295030
Part NameCylinder for Hydraulic
List Price$218.50
Part#295031
Part NameBushing Rod
List Price$83.50
Part#296642
Part NamePiston Assembly
List Price$542.00
Part#295640
Part NamePacking O-ring
List Price$2.65
Part#295641
Part NameSeal U-cup
List Price$9.90
Part#295642
Part NameBackup Ring
List Price$6.15
Part#296643
Part NameWear Ring Kit
List Price$76.50
Part#158776
Part NamePacking O-ring
List Price$11.80
Part#295644
Part NameRing Backup
List Price$2.75
Part#295645
Part NameWiper Rod
List Price$5.85
Part#295032
Part NamePump Spacer
List Price$56.75
Part#261502
Part NameSPACER REVERSING SWITCH
List Price$66.50
Part#295034
Part NameHydraulic Cylinder Rod Tie
List Price$37.00
Part#261864
Part NameKit, Clevis
List Price$86.75
Part#177156
Part NamePacking, O-Ring
List Price$4.40
Part#295852
Part NameNut Jam, Baffle
List Price$57.75
Part#296785
Part NameHydraulic Cylinder Repair Kit
List Price$353.00
Part#247824
Part NameValve Drain Cartridge Kit
List Price$278.00
Part#158674
Part NameO-Ring
List Price$9.80
Part#247779
Part NameKit, Seal, seat, valve
List Price$42.70
Part#102814
Part NameFLUID GAUGE, 5000PSI
List Price$75.00
Part#162453
Part NameFitting; Nipple 1/4
List Price$17.60
Part#247788
Part NameRed, ISO, Left Handle
List Price$28.80
Part#247789
Part NameBlue resin right handle kit
List Price$28.80
Part#112309
Part NameHex Nut Jam
List Price$3.60
Part#117556
Part Namefitting elbow, #8JICX1/2NP
List Price$16.10
Part#100840
Part NameFitting; Elbow 1/4" MxF
List Price$14.20
Part#111457
Part NameO-ring PTFE
List Price$10.40
Part#189285
Part NameCaution Label
List Price$0.00
Part#150829
Part NameCompression Spring
List Price$7.10
Part#117557
Part NameFitting; 45 Male Elbow, 1/2 NPT x 5/8 Tube #10 JIC
List Price$18.10
Part#255149
Part NameDrain Valve Kit, ISO Side
List Price$302.00
Part#255150
Part NameDrain Valve Kit, RESIN Side
List Price$302.00
Part#255148
Part NameKit; Drain Valve, Set, (both handles and grease gun)
List Price$580.00
Part#118459
Part NameFitting; Union Swivel, Straight, 3/4" NPT(f) Swivel x 3/4" NPT (M) For feed hose from transfer pump
List Price$18.70
Part#180199
Part NameReplacement Filter; 20 Mesh Screen, Y-Strainer
List Price$36.70
Part#16V879
Part NameCap, Filter
List Price$50.00
Part#555808
Part NamePlug, 1/4MP W/ Hex HD
List Price$2.70
Part#15D757
Part NameHP Visc. Therm. Housing
List Price$56.75
Part#109077
Part NameBall Valve, 3/4" NPT (FBE)
List Price$118.00
Part#253481
Part NameGUARD - GAUGE,WYE STRAINER,PAINTD
List Price$27.50
Part#24U855
Part NameKIT,MODULE,GCA,MZHP,REACTOR2
List Price$715.00
Part#255047
Part NameKIT,BUSHING,STRAIN RLF,M40 THD
List Price$68.25
Part#255048
Part NameKIT,NUT,STRAIN RLF,M40 THD
List Price$82.00
Part#123967
Part NameOperator Disconnect Knob
List Price$61.00
Part#115942
Part NameNut Hex, Flange Head
List Price$6.30
Part#113505
Part NameNUT - KEPS,HEX HD,#10
List Price$3.65
Part#114269
Part NameGROMMET - RUBBER
List Price$3.90
Part#109466
Part NameNUT - LOCK,HEX
List Price$4.20

Downloads

Name
Download
NameREACTOR SPRAY FOAM AND POLYUREA EQUIPMENT BROCHURE
DownloadDownload
NameREACTOR 2 HYDRAULIC PROPORTIONING SYSTEM OPERATION MANUAL
DownloadDownload
NameReactor 2 Hydraulic Proportioning System Repair-Parts Manual
DownloadDownload
