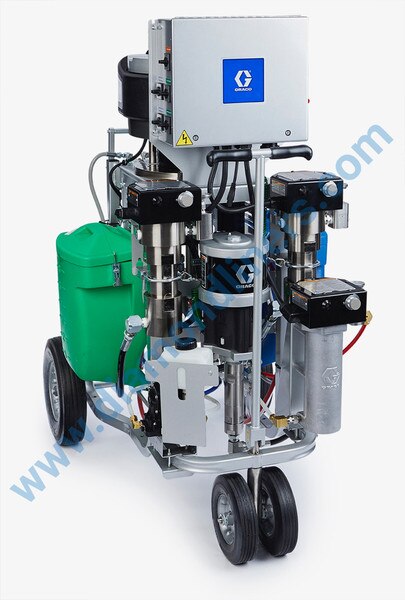

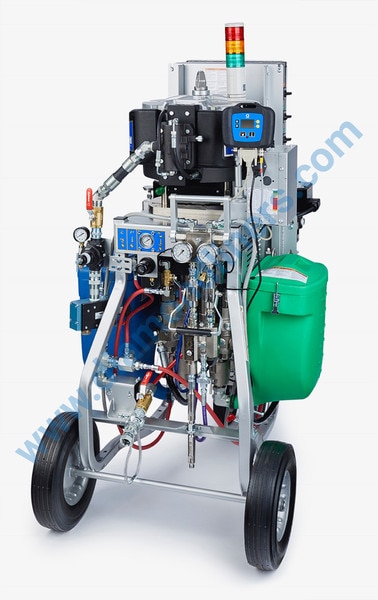

Graco XP50-hf

The XP50-hf system combines the popular XP Sprayers with the powerful XL 10000 air motor. Combining these two technologies, you get more flow - getting jobs done faster and with less wear and tear.

XP50-hf
  • Max Fluid Pressure: 4750-5000 psi
  • Flow Rate at 40 cpm: 4 gallons/minute
  • Available Ratios: 1:1, 1.5:1, 2:1, 2.5:1, 3:1, 4:1
  • Typical Materials: Medium to high solids coatings

What an XP50-hf Sprayer can do for you:
  • Increase Productivity & Labor Savings - With 60% more flow than the existing XP Sprayers and the ability to use larger tips or run more than one gun off one system you can get jobs done faster
  • Save Time - Pre-wired packages with heaters and junction box means less hassle and faster set up time.
  • Easier to Service - The Xtreme metering pumps with quick knock-down makes it easy to service; built in fluid filter and spring loaded lower ball checks for crisp changeover. The mechanically operated sprayer makes it easier to understand.
  • Improve Spray Pattern - Viscosity control with Viscon HF Fluid Heaters improves spray pattern and film thickness control. Viscon HF heaters (5400 W) are 3x less restrictive than Viscon HP with removable, cleanable aluminum core - making it ideal for high demand applications.


XL 10000 Air Motor - Graco's Largest Air Motor

  • Exposed Poppets - Easy access for service and troubleshooting
  • De-Ice Bleed Air Control - Maintains performance during heavy icing conditions
  • Manual Shuttle Override Button - Allows manual changeover of air motor if main valve experiences ice buildup.
  • Simplified Valve Design - Fewer components for easier serviceability and little to no pulsation or pattern fluctuation, even with multiple guns. Quiet operation, even compared to smaller motors.
  • External Pilot Lines - Isolate lines from cold valve body. Eliminates non-restartable icing stalls.

Equipment

Part#
Part Description
List Price
Part#573100
Part DescriptionSYSTEM,XP,1:1,220/220,BF,PUMP,B
List Price$17,380.00
Part#573101
Part DescriptionSYSTEM,1:1,220/220,BF,CNH
List Price$23,290.00
Part#573102
Part DescriptionSYSTEM,1:1,220/220,BF,CH
List Price$25,020.00
Part#573103
Part DescriptionSYSTEM,1:1,220/220,BF,CNH,HS
List Price$38,820.00
Part#573104
Part DescriptionSYSTEM,1:1,220/220,BF,CH,HS
List Price$40,540.00
Part#573105
Part DescriptionSYSTEM,1:1,220/220,BF,CH,HS,JB
List Price$42,870.00
Part#573106
Part DescriptionSYSTEM,1:1,220/220,COMPLETE,HAZ
List Price$48,090.00
Part#573107
Part DescriptionSYSTEM,1:1,220/220,CMPLT,NON-HAZ
List Price$50,400.00
Part#573150
Part DescriptionSYSTEM,XP,1.5:1,220/145,BF,B
List Price$17,380.00
Part#573151
Part DescriptionSYSTEM,1.5:1,220/145,BF,CNH
List Price$23,290.00
Part#573152
Part DescriptionSYSTEM,1.5:1,220/145,BF,CH
List Price$25,020.00
Part#573153
Part DescriptionSYSTEM,1.5:1,220/145,BF,CNH,HS
List Price$38,820.00
Part#573154
Part DescriptionSYSTEM,1.5:1,220/145,BF,CH,HS
List Price$40,540.00
Part#573155
Part DescriptionSYSTEM,1.5:1,220/145,BF,CH,HS,JB
List Price$42,870.00
Part#573156
Part DescriptionSYSTEM,1.5:1,220/145,CMPLT,HAZ
List Price$48,090.00
Part#573157
Part DescriptionSYSTEM,1.5:1220/145,CMPLT,NONHAZ
List Price$50,400.00
Part#573200
Part DescriptionSYSTEM,XP,2:1,290/145,BF,PUMP,B
List Price$17,380.00
Part#573201
Part DescriptionSYSTEM,2:1,290/145,BF,CNH
List Price$23,290.00
Part#573202
Part DescriptionSYSTEM,2:1,290/145,BF,CH
List Price$25,020.00
Part#573203
Part DescriptionSYSTEM,2:1,290/145,BF,CNH,HS
List Price$38,820.00
Part#573205
Part DescriptionGraco XP50 SYSTEM, 50:1 Pressure Ratio, 2:1 mix ratio, 290/145, Cart Configuration, XL10000 Air Motor, Circulation Manifold, Merkur Solvent Flush, Primary A/B Heaters Viscon HF, Electrical Junction Box, non-hazardous locations, hose 25 ft, 10 ft whip hose, mixers (3) and element (25 pack.
List Price$42,870.00
Part#573206
Part DescriptionSYSTEM,2:1,290/145,COMPLETE,HAZ
List Price$48,090.00
Part#573207
Part DescriptionSYSTEM,2:1,290/145,CMPLT,NON-HAZ
List Price$50,400.00
Part#573250
Part DescriptionSYSTEM,XP,2.5:1,290/115,BF,B
List Price$17,380.00
Part#573251
Part DescriptionSYSTEM,2.5:1,290/115,BF,CNH
List Price$23,290.00
Part#573252
Part DescriptionSYSTEM,2.5:1,290/115,BF,CH
List Price$25,020.00
Part#573253
Part DescriptionSYSTEM,2.5:1,290/115,BF,CNH,HS
List Price$38,820.00
Part#573254
Part DescriptionSYSTEM,2.5:1,290/115,BF,CH,HS
List Price$40,540.00
Part#573255
Part DescriptionSYSTEM,2.5:1,290/115,BF,CH,HS,JB
List Price$42,870.00
Part#573256
Part DescriptionSYSTEM,2.5:1,290/115,CMPLT,HAZ
List Price$48,090.00
Part#573257
Part DescriptionSYSTEM,2.5:1,290/115,CMPL,NONHAZ
List Price$50,400.00
Part#573300
Part DescriptionSYSTEM,XP,3:1,290/97,BF,PUMP,B
List Price$17,380.00
Part#573301
Part DescriptionSYSTEM,3:1,290/97,BF,CNH
List Price$23,290.00
Part#573302
Part DescriptionSYSTEM,3:1,290/97,BF,CH
List Price$25,020.00
Part#573303
Part DescriptionSYSTEM,3:1,290/97,BF,CNH,HS
List Price$38,820.00
Part#573304
Part DescriptionSYSTEM,3:1,290/97,BF,CH,HS
List Price$40,540.00
Part#573305
Part DescriptionSYSTEM,3:1,290/97,BF,CH,HS,JB
List Price$42,870.00
Part#573306
Part DescriptionSYSTEM,3:1,290/97,COMPLETE,HAZ
List Price$48,090.00
Part#573307
Part DescriptionSYSTEM,3:1,290/97,CMPLT,NON-HAZ
List Price$50,400.00
Part#573400
Part DescriptionSYSTEM,XP,4:1,290/72,BF,PUMP,B
List Price$17,380.00
Part#573401
Part DescriptionSYSTEM,4:1,290/72,BF,CNH
List Price$23,290.00
Part#573402
Part DescriptionSYSTEM,4:1,290/72,BF,CH
List Price$25,020.00
Part#573403
Part DescriptionSYSTEM,4:1,BF,CNH,HS
List Price$38,820.00
Part#573404
Part DescriptionSYSTEM,4:1,290/72,BF,CH,HS
List Price$40,540.00
Part#573405
Part DescriptionSYSTEM,4:1,290/72,BF,CH,HS,JB
List Price$42,870.00
Part#573406
Part DescriptionSYSTEM,4:1,290/72,COMPLETE,HAZ
List Price$48,090.00
Part#573407
Part DescriptionSYSTEM,4:1,290/72,CMPLT,NON-HAZ
List Price$50,400.00
