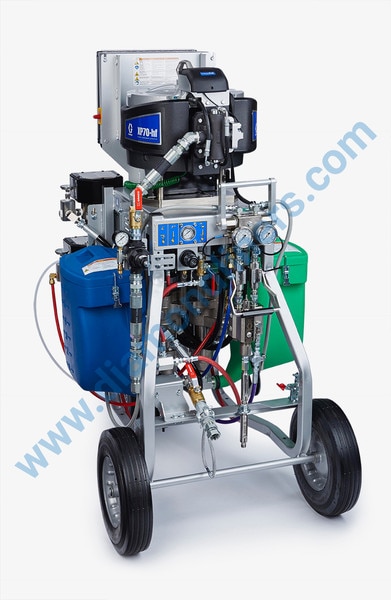

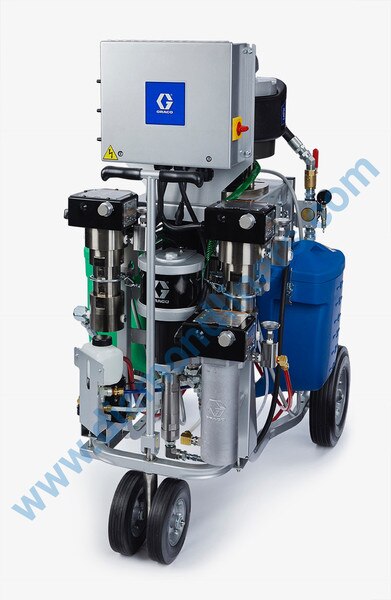

Graco XP70-hf

The XP70-hf system combines the popular XP Sprayers with the powerful XL 10000 air motor. Combining these two technologies, you get more flow - getting jobs done faster and with less wear and tear.

XP70-hf
  • Max Fluid Pressure: 7100-7250 psi
  • Flow Rate at 40 cpm: 3 gallons/minute
  • Available Ratios: 1:1, 1.5:1, 2:1, 2.5:1, 3:1, 4:1
  • Typical Materials: High to 100% solids coatings

What an XP70-hf Sprayer can do for you:
  • Increase Productivity & Labor Savings - With 60% more flow than the existing XP Sprayers and the ability to use larger tips or run more than one gun off one system you can get jobs done faster
  • Save Time - Pre-wired packages with heaters and junction box means less hassle and faster set up time.
  • Easier to Service - The Xtreme metering pumps with quick knock-down makes it easy to service; built in fluid filter and spring loaded lower ball checks for crisp changeover. The mechanically operated sprayer makes it easier to understand.
  • Improve Spray Pattern - Viscosity control with Viscon HF Fluid Heaters improves spray pattern and film thickness control. Viscon HF heaters (5400 W) are 3x less restrictive than Viscon HP with removable, cleanable aluminum core - making it ideal for high demand applications.


XL 10000 Air Motor - Graco's Largest Air Motor

  • Exposed Poppets - Easy access for service and troubleshooting
  • De-Ice Bleed Air Control - Maintains performance during heavy icing conditions
  • Manual Shuttle Override Button - Allows manual changeover of air motor if main valve experiences ice buildup.
  • Simplified Valve Design - Fewer components for easier serviceability and little to no pulsation or pattern fluctuation, even with multiple guns. Quiet operation, even compared to smaller motors.
  • External Pilot Lines - Isolate lines from cold valve body. Eliminates non-restartable icing stalls.

Equipment

Part#
Part Description
List Price
Part#572100
Part DescriptionSYSTEM,XP,1:1,145/145,BF,PUMP,B
List Price$16,220.00
Part#572101
Part DescriptionSYSTEM,1:1,145/145,BF,CNH
List Price$21,740.00
Part#572102
Part DescriptionSYSTEM,1:1,145/145,BF,CH
List Price$23,360.00
Part#572103
Part DescriptionSYSTEM,1:1,145/145,BF,CNH,HS
List Price$36,240.00
Part#572104
Part DescriptionSYSTEM,1:1,145/145,BF,CH,HS
List Price$37,850.00
Part#572105
Part DescriptionSYSTEM,1:1,145/145,BF,CH,HS,JB
List Price$40,020.00
Part#572106
Part DescriptionSYSTEM,1:1,145/145,COMPLETE,HAZ
List Price$44,890.00
Part#572107
Part DescriptionSYSTEM,1:1,145/145,CMPLT,NON-HAZ
List Price$47,050.00
Part#572150
Part DescriptionSYSTEM,XP,1.5:1,145/90,BF,PUMP,B
List Price$16,220.00
Part#572151
Part DescriptionSYSTEM,1.5:1,145/97,BF,CNH
List Price$21,740.00
Part#572152
Part DescriptionSYSTEM,1.5:1,145/97,BF,CH
List Price$23,360.00
Part#572153
Part DescriptionSYSTEM,1.5:1,145/97,BF,CNH,HS
List Price$36,240.00
Part#572154
Part DescriptionSYSTEM,1.5:1,145/97,BF,CH,HS
List Price$37,850.00
Part#572155
Part DescriptionSYSTEM,1.5:1,145/97,BF,CH,HS,JB
List Price$40,020.00
Part#572156
Part DescriptionSYSTEM,1.5:1,145/97,COMPLETE,HAZ
List Price$44,890.00
Part#572157
Part DescriptionSYSTEM,1.5:1,145/97,CMPLT,NONHAZ
List Price$47,050.00

Parts

No Parts for this item.

Downloads

Name
Download
NameXP-hf Plural Component Sprayers Brochure
DownloadDownload
NameXPs-hf Plural Component Skid Systems Brochure
DownloadDownload
NameXP-hf Proportioner Operation, Repair & Parts Manual
DownloadDownload
NameXtreme XL Air Motor Instructions Parts Manual
DownloadDownload
NameXtreme Displacement Pumps Instructions Parts Manual
DownloadDownload
NameHose & Hopper Heat Circulation Instructions Parts Manual
DownloadDownload
NameFeed & Solvent Flush Instructions Parts Manual
DownloadDownload
