Nordson EFD TAH Series 160

With conventional meter/mix manifolds the reactive materials met within the manifold before the mixer. If the materials are allowed to get mixed the manifold will plug and must be disassembled. This can be a time consuming and expensive task.

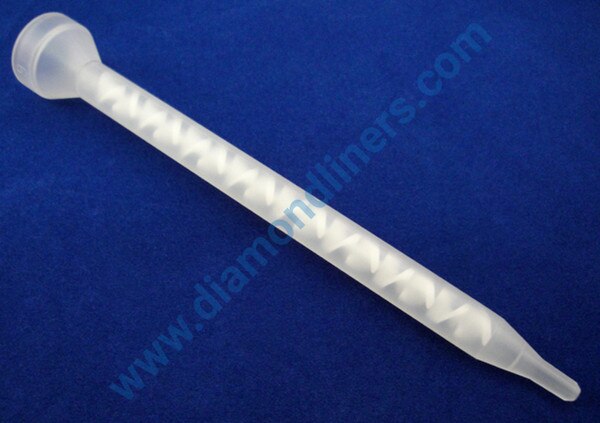

The Series 160 eliminates this problem. The mixing nozzle has an oversized bell inlet. Manifolds and valves separately port the A and B materials directly into the mixer. Cleanup simply involves removing the mixer and wiping the manifold clean. A metal jacket is recommended if the working pressure inside the mixing nozzle exceeds 160psi (10 bar).

Some competitor mixing nozzles has a smaller inlet bell. TAH offers plastic sleeves which press fit into the standard Series 160 bell to convert our mixers to their size.


  • Element: Acetal
  • Housing: Polypropylene


  • Bell inlet sleeve
  • Luer lok fitting
  • Luer needle
  • Manifold
  • Night cap and ratio check cap
  • One-piece jacket
  • Pipe adapter
  • Retaining nut
  • Support washer
