Pentech MG Spray Gun

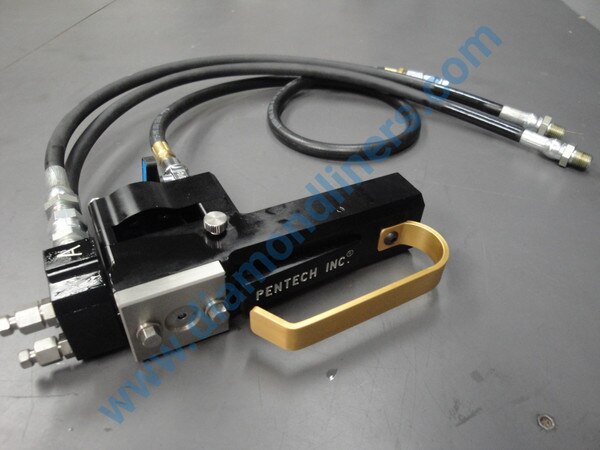

The brand new Pentech MG Mechanical Purge Spray Gun

The new Pentech MG is a Plural Component, Direct Impingement Mix, Mechanical Purge Spray Gun. This Spray Gun has extremely simple operation and maintenance. The MG Spray Gun also has the lowest part count in the industry.

Pressures & Temperatures:
Weight: 1.8 lbs
Minimum Air Inlet Pressure: 80 psi (0.56 MPa, 5.6 bar)
Maximum Air Inlet Pressure: 130 psi (0.9 MPa, 9.0 bar)
Minimum Material Output: 1 lb/min (.4536 kg)
Maximum Material Output: 23 lbs/min (10.43 kg)
Maximum Fluid Temperature: 200°F (94°C)
Maximum Fluid Working Pressure: 3500 psi (24.5 MPa, 245 bar)

Hose Connections:
Air inlet size: 1/4" npt quick disconnect nipple
A Component (ISO) inlet size: 1/4" npt
B Component (Resin) inlet size: 1/4" npt

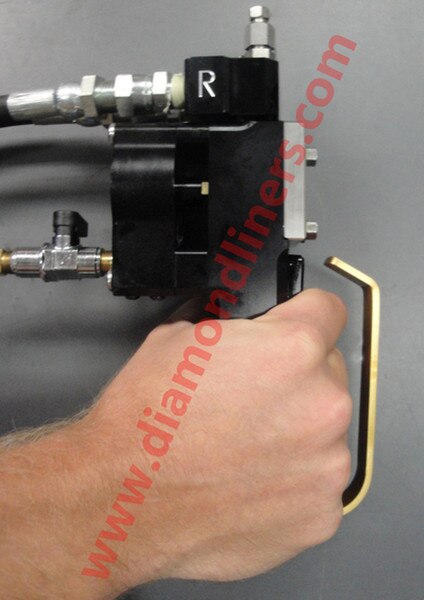

"This is the Second Generation Palm Gun"

Equipment

Part#
Part Description
List Price
Part#MG1003
Part DescriptionMG Gun Package Complete
List Price$2,370.00
Part#MG2100
Part DescriptionMG Spray Gun Complete
List Price$1,885.34

Parts

Part#
Part Description
List Price
Part#MG5500
Part Name90 Deg Fitting Kit
List Price$42.51
Part#BD2002
Part NameAir Cap
List Price$228.03
Part#BD2010
Part NameTrigger Guard
List Price$65.73
Part#BD5302
Part NameBall Support
List Price$17.41
Part#BD5303
Part NameBall
List Price$0.81
Part#BD5304
Part NameSnap Ring
List Price$1.07
Part#BD5305
Part NameCheck Valve Assembly
List Price$50.98
Part#BD5307
Part NameCheck Valve Repair Kit, For 2 Check Valves..Includes BD5302, BD5303, BD5304
List Price$35.14
Part#BD6000
Part NameAdapter Block Assembly - Gusmer coupling block
List Price$59.00
Part#BD6100
Part NameAdapter Block Assembly - Graco, Fusion AP and Fusion MP style coupling block
List Price$279.00
Part#BD6200
Part NameP2 Adapter Block Assembly
List Price$281.70
Part#BD9041
Part NameAir Whip Hose
List Price$33.54
Part#BD9042
Part NameSwivel, High Pressure..
List Price$82.31
Part#BD9045
Part NameButton Head Cap Screw
List Price$0.87
Part#MG2021
Part NameRear Seal
List Price$9.11
Part#MG3004
Part NamePan Head Screw, 2" length
List Price$1.67
Part#MG3006
Part NameAir Cylinder Repair Kit
List Price$2.07
Part#MG3016
Part NameMG Start Up Kit Standard
List Price$207.43
Part#MG3016-16
Part NameMG Start Up Kit 16
List Price$207.43
Part#MG3016-37
Part NameMG START UP KIT 37
List Price$207.43
Part#MG4000
Part NameValving Rod
List Price$43.81
Part#MG4001
Part NameValving Rod Bolt
List Price$18.73
Part#MG5001
Part NameCoupling Block - Mach & Plated
List Price$181.09
Part#MG5300
Part NameCoupling Block / Whip Hose Assembly
List Price$482.91
Part#MG9000
Part NameTool Kit Includes: BD9054, PSG9012, PSG9010, PSG9009, BD9011, MG9014, MG4003, PSG2008
List Price$94.34
Part#MG9001-16
Part NameRound Pattern Mix Module, .016
List Price$64.38
Part#MG9001-24
Part NameRound Pattern Mix Module, .024
List Price$64.38
Part#MG9001-37
Part NameRound Pattern Mix Module, .037
List Price$64.38
Part#MG9001-52
Part NameRound Pattern Mix Module, .052
List Price$64.38
Part#MG9003-24
Part NamePCD, ROUND PATTERN .024
List Price$78.03
Part#MG9003-36
Part NameRound Patter PCD, .036
List Price$78.03
Part#MG9003-47
Part NameRound Pattern PCD, .047
List Price$78.03
Part#MG9003-60
Part NameRound Pattern PCD, .060
List Price$78.03
Part#MG9014
Part NameDrill Big 1/16
List Price$6.02
Part#PSG2004
Part NameSpool Valve
List Price$116.71
Part#PSG2005
Part NameSpring, Spool Valve
List Price$2.12
Part#PSG2006
Part NameButton Head Cap Screw
List Price$0.54
Part#PSG2007
Part NameWasher
List Price$0.25
Part#PSG2008-PKG
Part NameO-Ring, Pkg of 12
List Price$8.06
Part#PSG2009
Part NameSpring, Trigger Paddle
List Price$4.01
Part#PSG2011
Part NameDowel Pin 1/8 x 1 1/4
List Price$1.47
Part#PSG2012
Part NameAir cap bolt
List Price$14.06
Part#PSG2014
Part NameSocket Head Set Screw
List Price$0.73
Part#PSG2016
Part NameBasket Filter 60 mesh
List Price$45.86
Part#PSG5003
Part NameCoupling Block Bolt
List Price$14.38
Part#PSG5500
Part NameManual Valve Assembly
List Price$35.55
Part#PSG7004
Part Name1/8" Pipe Nipple
List Price$4.69
Part#PSG7016
Part NameHose Adapter Fitting Assy. - Glascraft
List Price$129.81
Part#PSG7017
Part NameAdapter Fitting Assembly, (To Graco Hoses)
List Price$70.92
Part#PSG9012
Part NameDrill Bit, 7/64" x 6"
List Price$10.71
Part#PSG9015
Part NameDrill Index
List Price$68.24
Part#BD9011
Part NamePIN VISE, LARGE
List Price$44.83
Part#BD9015
Part NameDRILL INDEX, #60 - #41
List Price$74.94
Part#BD9054
Part NameFLUSH BOTTLE
List Price$8.70
Part#MG2000
Part NameHANDLE ASSEMBLY COMPLETE
List Price$1,354.80
Part#MG2001-A
Part NameGUN HANDLE - BARE ASSEMBLY
List Price$623.74
Part#MG3000
Part NameAIR CYLINDER ASSEMBLY
List Price$544.60
Part#MG3001
Part NameAIR CYLINDER - BARE ASSEMBLY
List Price$293.76
Part#MG3009
Part NameREAR COVER
List Price$131.45
Part#MG3012
Part NamePISTON & SHAFT
List Price$77.61
Part#MG3016-52
Part NameMG START UP KIT 52
List Price$207.43
Part#MG9044
Part NamePLUG, FINISH
List Price$1.34
Part#PSG5009
Part NameFILTER SWIVEL ASSEMBLY
List Price$107.06
Part#PSG7008
Part NameNIPPLE, MALE, QD, 1/4" FPT
List Price$8.02
Part#PSG9009
Part NameNUT DRIVER, 5/16"
List Price$10.71
Part#PSG9010
Part NameCOMBINATION WRENCH, 5/16"
List Price$14.72
Part#PSG9011
Part NamePIN VISE
List Price$20.10
Part#PSG2016A
Part NameFilter Basket - 40 mesh (larger)
List Price$21.20
Part#PSG2025-PKG
Part NameSpool Valve O-rings..Package of 12
List Price$40.07
Part#MG3008-PKG
Part NameO-RING, FRONT COVER, PKG 12
List Price$6.68
Part#MG3010-PKG
Part NameO-RING, PISTON, PGK 12
List Price$6.68
Part#MG4003-PKG
Part NameCoupling Block O-Ring, Package of 12
List Price$12.70
Part#PSG3014-PKG
Part NameO-RING, PKG 12
List Price$7.30
Part#MG9910
Part NameMG O-Rings & Seal Kit
List Price$39.59
Part#MG9920
Part NameMG Rebuild Kit - Handle
List Price$275.25
Part#MG9930
Part NameMG Rebuild Kit - Air Cylinder
List Price$157.82
Part#MG9940
Part NameMG Rebuild Kit - Coupling Block / Whip Hose Assembly
List Price$319.80

Downloads

Name
Download
NameMG Spray Gun Brochure
DownloadDownload
NameMG Spray Gun Manual
DownloadDownload
